How Framing Differs Between One-Story and Two-Story Houses
Short take: a second floor multiplies loads, stiffness demands, and layout discipline. Platform framing stays the backbone, but joist sizing, wall studs, headers, bracing, and roof choices all shift. If you frame a two-story the same way you frame a ranch, you’ll pay for it in deflection, cracks, and callbacks.
Why house type changes the frame
House type sets the load path. A one-story routes roof and ceiling loads into the exterior walls and a few concentrated points. A two-story adds a full floor system, a second line of bearing walls, and much higher overturning and shear forces. That means thicker members in key spots, tighter bracing, and sharper sequencing.
If you want the baseline logic for the whole skeleton, skim a practical primer like House Framing 101 when you need it during layout, not after mistakes start piling up. See a clear walkthrough here: House Framing 101: Everything You Need to Know.

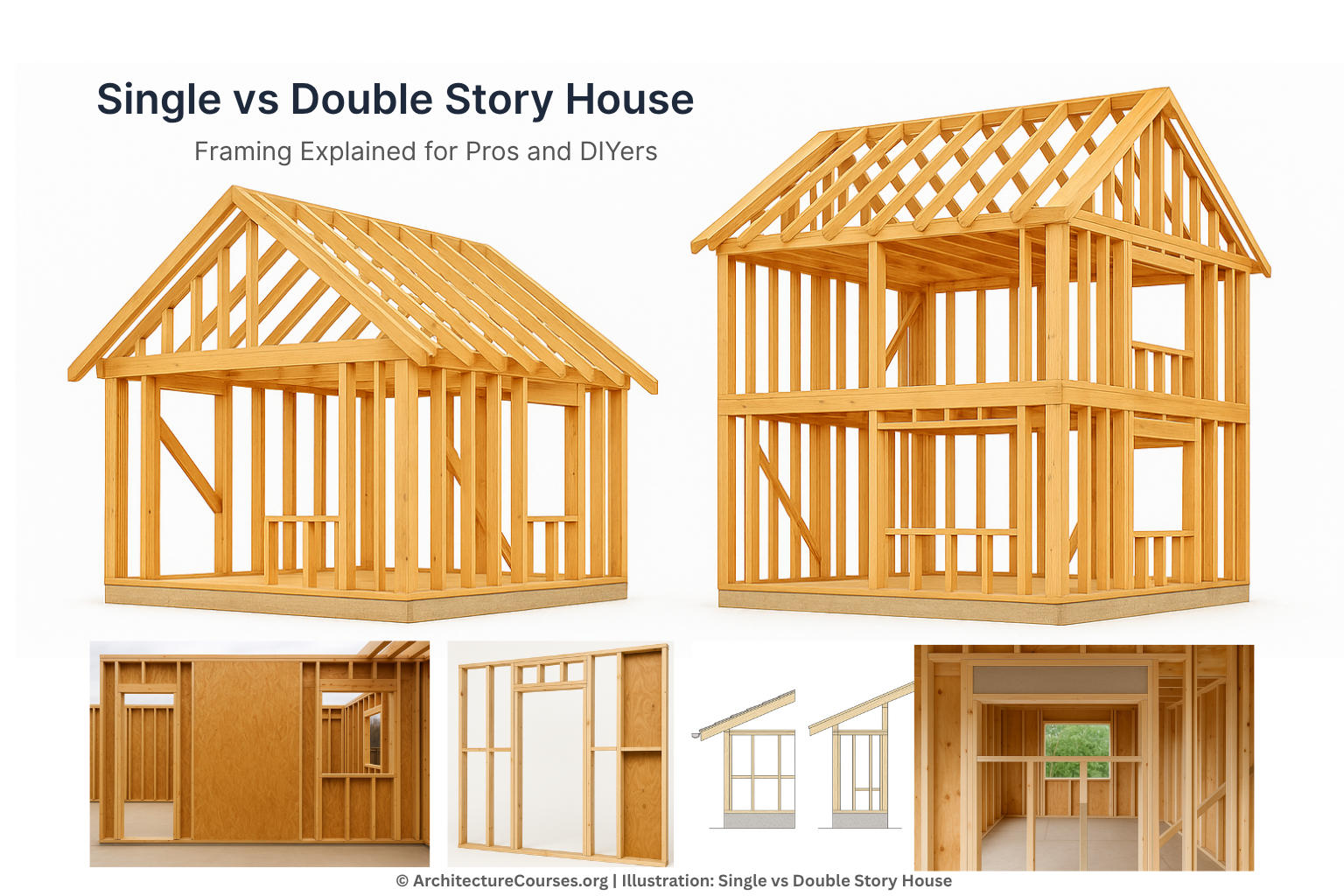

Single-Story vs Two-Story Framing: What Changes, What Stays, and How to Get It Right
Platform framing in each house type

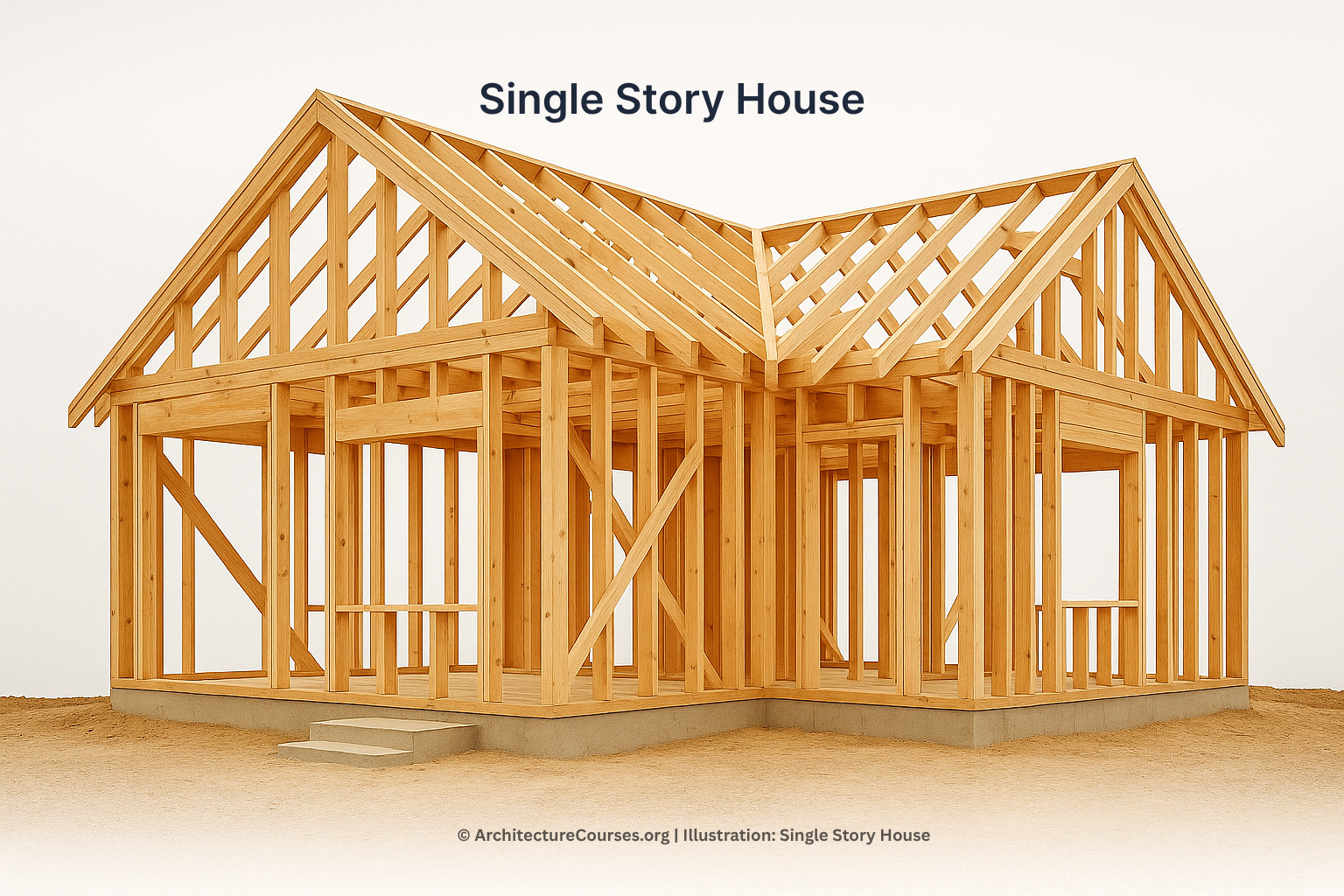

Platform framing in a single-story
- Sill plate on the foundation.
- One platform: floor joists and subfloor.
- Exterior and interior bearing walls stand on that platform.
- Roof system sits on wall top plates.
Platform framing in a two-story
- Sill plate and first-floor platform.
- First-floor walls support the second-floor platform: rim joists, full joist field, and subfloor.
- Second-floor walls stand on that second platform.
- Roof system sits at the top.
Key differences you’ll feel on site:
1) More lumber in the rim and joist lines.
2) Heavier headers over wide openings on the first floor.
3) Stricter stud and plate choices to control compression and long-term creep.
If your foundation is pier-and-beam rather than a continuous stem wall, the bearing lines and blocking patterns change at the base. For a clean foundation sequence that matches small houses, this walk-through helps: Foundation Construction Methods: Pier and Beam.
Floor joists, rim joists, and plates
One-story: Floor joists only support the live load of the main floor plus partition loads. Rim joists are mainly closure and lateral continuity at the edges. Double top plates carry roof loads directly.
Two-story:
- First-floor joists support partitions plus the full weight of the second-floor platform and whatever you stack above. Upsize the joists or tighten spacing. Blocking and strapping matter more to control bounce.
- Second-floor joists carry bedroom loads, baths, and partitions. Watch tub lines and laundry clusters; plan joist holes and sisters before drywall.
- Rim joists pick up more shear and bearing transfer. Beef them up where floor beams or point loads land.
- Top plates on the first-floor walls now carry a continuous second-floor platform, not a roof. Plate joints and splices need proper overlap and fastener schedules to keep a clean load path.
When the spans get long or loads stack oddly, read the beam action first so you don’t guess. A quick refresher on beam logic pays off: How to Analyze Beams: From Cantilevers to Continuous Systems.
Stud sizing and wall behavior
One-story: Most exterior walls can run 2×4 at common spacing in many climates and code zones when spans are short and openings are modest. Headers can often be lighter, and deflection targets are easier to hit.
Two-story:
- First-floor exterior walls carry more. They support the second-floor platform and the roof above. That pushes many builds to 2×6 exterior studs, tighter spacing, or engineered studs for flatness and capacity.
- Second-floor exterior walls still see roof load, but less accumulation than the first-floor studs.
- Interior bearing walls matter more. They shorten joist spans and tame bounce. Plan these walls early so bathrooms and stairs don’t land where you need a beam.
Framers argue about headers. In a two-story, the lower level headers often step up a size or two, and you’ll see more LVL and PSL choices. Over-span a header and the doors below will tell on you within a season.
Need a clean refresher on the anatomy of openings and how the pieces work together? Keep this handy: King and Jack Stud Framing: A Simple Guide for Builders. If you’re checking which walls must carry in a taller frame, this two-story check is direct: How to Tell If a Wall is Load-Bearing in a Two-Story House.
Shear, bracing, and lateral control
Wind and seismic don’t care how pretty the plans look. A single-story box is compact and stiff by default. A two-story is a taller sail with more overturning. You need better shear panels, hold-downs, and tie-ins.
- Shear wall lines must stack. Don’t offset the second-floor shear by a room without a transfer path.
- Anchor bolts, hold-downs, and straps concentrate at the ends of shear walls and around big openings.
- Stair openings act like soft spots; compensate with longer shear segments elsewhere.
Site tip: metal bracing is cheap insurance at roof and wall transitions. For the basics of field bracing hardware and habits, these two quick reads help you choose and place hardware without guesswork: T-Brace Framing: Installation Tips and Best Practices and Drag Struts in Framing: Purpose, Function, and Installation.
Openings, beams, and load transfers
Large glass spans and open concepts stress a one-story too, but a two-story punishes weak planning. A wide patio slider on the first floor might need a multi-ply LVL with specific bearing on each end. That beam then pushes into studs and down to the foundation. Stack openings intelligently: align second-floor windows over studs or narrower first-floor openings, or add posts and point bearings that are real, not wishful.
For window retrofits and new openings, these practical references keep your framing legal and straight: How to Frame a New Window in an Existing Wall and a broader primer on window framing materials here: Wooden Window Frames: Everything You Need to Know.
Roof systems and how they change with height
One-story roof: Low mass above the plates. Hand-cut rafters or simple trusses carry into exterior walls with minimal intermediate support. Collar ties or rafter ties handle thrust in conventional spans. The roof diaphragm ties the box together.
Two-story roof: You’re sitting higher in the wind. Truss selection and bracing become more important. Heel height often increases to allow insulation depth and proper ventilation at the eaves. Roof loads travel through the second-floor walls into the first-floor structure, so stacking bearing lines matters.
If you need a clear overview, park these two pages: Roof Trusses: Types, Design, and Installation Guide and a quick bracing checklist here: Truss Bracing and Roof Support Systems: Essential Guide for Builders. For ridge members and their role in stick framing, this helps keep your ridge choices clean: Ridge Beams: Function, Design, and Installation in Roof Framing.
Fire blocking, draft stopping, and sound
One-story: Fire blocking is still required, but there are fewer vertical chases to manage.
Two-story: Add blocking at floor lines, stairs, and vertical chases. Stop air from turning a stud bay into a chimney. You’ll also wrestle with more sound paths between floors. Staggered studs, insulation, and resilient channels may be worth it under bedrooms or laundries.
Mechanical runs and the reality of space
One-story: Ducts and plumbing can live in joist bays with fewer vertical drops. The attic is close for branch lines.
Two-story: Plan plumbing stacks early, especially over kitchens or powder rooms. Protect joist strength with proper hole rules. Laundry rooms on the second floor add concentrated loads and vibration; plan doubling or sisters under machines. Keep beam pockets free of pipe surprises.
Thermal control, air sealing, and wall thickness
One-story: Easier to air seal at the lid and at the wall line.
Two-story: More junctions. More stack effect. Second-floor walls benefit from 2×6 thickness for both R-value and flatter drywall. Exterior sheathing choice matters for racking resistance and nail holding. For a practical look at sheet goods and thickness that stand up, keep this bookmarked: Exterior Wall Sheathing: Thickness, Materials, and What Actually Works.
Sequencing and crew flow
One-story: Fast to frame, fast to dry-in. The crew rhythms are simple: platform, walls, roof.
Two-story:
1) First platform and walls.
2) Set beams where needed.
3) Build the second platform safely with proper edge protection.
4) Stand second-floor walls.
5) Roof, bracing, and tie-downs.
6) Continuous inspection of stacks: stud under joist under stud.
Any gap in this chain shows up as cracked drywall, doors that rub, nail pops, or worse.
Costs, time, and where money leaks
One-story: Lower labor per square foot. Less scaffolding. Simpler crane needs. Fewer inspections. Mistakes cost less to fix.
Two-story: More labor for staging, lifting, and bracing. More engineering at headers and point loads. More hardware for hold-downs and straps. More trips up and down, which quietly burns hours. If you have to choose where to spend, spend on layout, headers, and stacked bearing.
Common mistakes and real fixes
Mistake 1: Soft first floor under a heavy second.
Fix: Add a real interior bearing line that lines up with second-floor walls. Shorten joist spans or step up the joist grade.
Mistake 2: Misaligned shear walls between floors.
Fix: Redraw the shear plan with continuous stacks and proper hold-downs. Where offsets are unavoidable, use collectors and straps to move force to the next shear segment.
Mistake 3: Undersized headers on the first floor.
Fix: Step to LVLs or PSL; verify bearing length, shims, and king/jack pairs. Reframe cripple spacing to transfer load cleanly.
Mistake 4: Roof bracing ignored on a tall box.
Fix: Install permanent lateral braces, strongbacks, and diagonal ties per the truss schedule. Don’t leave temporary bracing as the only thing holding geometry.
Mistake 5: Plumbing cuts through joists where bending is highest.
Fix: Pre-route stacks. Drill only in the middle third of the span when the code allows it, or add sisters and headers around the chase.
Field notes on headers and studs
On a ranch, 2×4 exterior walls with modest openings often perform fine. On a two-story, I like 2×6 perimeter and engineered studs around large openings. Headers on the first floor often become double LVLs with insulation above for thermal breaks. Cripples under sills carry; don’t skip them to “save time.”
If you want a quick refresher before you cut, this short piece keeps the anatomy clear: Wall Framing Basics: The Simplest Guide to Studs, Plates, and Blocking.
Stairs and the holes they create
Stairs cut a large opening in the second-floor platform and often in the ceiling below. Double joists at the opening, create clean headers, and carry the loads to bearing walls. The stair wall itself can act as a shear segment if you plan it. Keep headroom legal and landings square so drywall and trim don’t fight you.
Roof choices by house type
One-story: Low-slope and simple gables make sense. Hand-cut works well on small footprints. For a friendly explainer on common roof frames with field tips, this helps: Saltbox Roof Framing Made Simple.
Two-story: Trusses save time and stiffen the tall box when designed well. Hip sections can calm wind uplift. If you need a fast primer before ordering trusses, skim: Residential Roof Trusses Explained: Types, Design, and Common Mistakes.
Framing checklists you will actually use
One-story checklist
- Joist layout clean, crown up, blocking installed.
- Exterior walls plumb, top plate laps correct.
- Headers sized for spans.
- Roof ties, collar ties, or ridge choices confirmed.
- Sheathing nailed with proper edge spacing.
Two-story checklist
- Bearing stacks verified from roof down to the foundation.
- First-floor headers and posts sized and seated.
- Second-floor platform blocked and glued, squeak control in place.
- Shear walls aligned, hold-downs set, straps continuous across floor lines.
- Truss or rafter bracing installed per schedule.
- Fire blocking at floors, stairs, and chases.
FIELD PICK
Metabo HPT Framing Nailer
Clean drive, easy depth control, and fewer jams in cold weather. Good daily gun if you frame walls and stairs all week.
See current price
MUST READ
Framing Floors, Walls & Ceilings (For Pros By Pros)
Straight shots of detail that match what inspectors look for and what crews actually build.
Check the book
RECOMMENDED TOOL
Heavy-Duty Carpenter’s Square
Layout lives or dies by square lines. A solid 16×24 square saves more rework than any shiny gadget.
Grab one
Real-world examples that clarify decisions
- Big window wall in a two-story living room: use a story-height moment frame or a pair of LVLs with steel flitch plates. Stack posts down to a pad. Brace the adjacent wall as a designated shear line.
- Second-floor laundry over the kitchen: double joists under the machines, add sound control in the ceiling below, and plan a real drain pan with a route to daylight.
- Hip roof over a tall box in a windy area: choose a hip at the street side to calm uplift and use proper heel heights for insulation. If you want a quick style read on hip pros/cons, this helps: Hip Roof Line: Advantages, Disadvantages, and Applications.
Material choices that change with height
- Studs: 2×6 on two-story exteriors buy you stiffness, straighter drywall, and better R-value.
- Sheathing: step up to thicker panels or tighter nail patterns on tall walls.
- Hardware: plan hold-downs and straps at design time, not as a rescue in the field.
- Headers: engineered wood pays for itself where spans grow.
If you are juggling roof and wall skins, match the sheathing advice to what you can actually buy locally. A practical skin guide is here: Exterior Roof Sheathing: Thickness, Materials, and Details That Don’t Fail.
When an interior wall must become structural
On both house types, interior lines can carry. On a two-story, a central bearing wall is often the cheapest way to reduce joist size and header sizes everywhere else. Align it with stairs, baths, or closets so you get structure and layout in the same line. Revisit the basics of load-bearing calls here if you want a quick gut check before you cut: Load-Bearing vs. Non-Load-Bearing Walls: Structural Insights.
Inspections and documentation
A single-story inspection is usually quick. A two-story adds structural hold-downs, more connectors, and stacked shear checks. Photograph hardware and plate laps before sheathing swallows the evidence. Keep the truss drawings and the shear schedule within arm’s reach so nothing devolves into “I thought we were doing it this way.”
Safety habits that keep the day moving
- Guard the second-floor edges the moment the platform is down.
- Crane or telehandler time is money. Stage lifts and pre-build wall sections flat.
- Keep temporary bracing in place until permanent bracing is complete.
How to apply this on your next build
- Decide house type early and lock the load path on paper before lumber shows up.
- Stack bearing from ridge to dirt. No exceptions.
- Right-size joists and headers for the two-story reality. Guessing costs you twice.
- Plan shear lines and hardware at the start.
- Route mechanicals without gutting joists.
- Seal and block at floor lines and chases to control fire and sound.
- Document every strap and hold-down before sheathing hides them.
If you want a straight-talk overview of framing types you can compare in one sitting, this short guide helps: Types of Framing in Construction (2025 Guide).
FAQ
Is a two-story always more expensive to frame?
Per square foot, framing materials can be similar, but labor rises due to staging, lifts, bracing, and inspections. The first-floor headers and hardware packages also tend to cost more.
Can I frame a two-story with 2×4 exterior walls?
Sometimes, but you’ll likely fight deflection, insulation limits, and wavy drywall. Many builders choose 2×6 for better capacity and straighter walls.
Do trusses or rafters make more sense on a two-story?
Trusses save time and create predictable loads. Hand-cut rafters still work, but you must brace a tall roof carefully. Read the truss bracing notes before you decide: Truss Bracing and Roof Support Systems.
How do I keep floors from bouncing on a two-story?
Shorten spans with a central bearing line, upsize joists, add solid blocking, and glue the subfloor. Consider thicker subfloor panels in high-traffic areas.
Are headers over first-floor openings always LVL on a two-story?
No. Smaller spans can use dimensional lumber. Big glass walls and wide sliders often push you to LVL or PSL. Check the schedule and don’t forget bearing length.
What changes in the foundation for a two-story?
Footings and stem walls often step up in width or reinforcement to handle point loads. If you build on piers and beams, bearing lines must be clean and continuous from posts to the ground. A quick foundation starter is here: Foundation Wall Construction: Step-by-Step.
Does shear get worse with more height?
Yes. Overturning and drift grow with height. Align shear walls across floors, use hold-downs, and respect the strap and collector details.
Should I worry about sound between floors?
If bedrooms sit above living areas, yes. Consider insulation in joist bays, resilient channels below, and thicker subfloor glued well.
Is a hip roof better for a two-story in windy zones?
Often. Hips distribute wind more evenly. Gables can work, but you may need more bracing. For a quick take on hip logic, try this summary: Hip and Gable Roof Combinations.
Closing
A single-story frames fast and forgives more. A two-story demands discipline in stacking loads, sizing members, and tying the box against wind. Plan the load path, align the shear, and build your platforms tight. The rest flows.
If you want a single page to refresh on wall anatomy before you cut tomorrow morning, this one stays practical: Wall Framing Basics: The Simplest Guide to Studs, Plates, and Blocking. For ridge choices in stick roofs and when to treat the ridge as a real beam, keep this nearby: Ridge Beams: Function, Design, and Installation in Roof Framing.
Not flashy, but it works.
