Ridge Beams in Roof Framing: When You Need One

Axonometric roof framing diagram showing a red ridge beam supporting opposing rafters.

A ridge beam is needed when the roof cannot hold itself together with opposing rafters and ties alone.

In a simple gable roof, ceiling joists or rafter ties often let the ridge stay a non-structural ridge board. Remove those ties for a vaulted ceiling or a more open plan, and the ridge may need to start carrying load instead.

Once that happens, the whole roof changes. A ridge beam needs bearing, support below, and a continuous load path down to something built to carry it.

What a Ridge Beam Does

A ridge beam is a structural member at the roof peak that supports rafters and carries roof load down to posts, walls, beams, or other supports below.

It is not there to help with layout. It is there to carry weight.

Once the ridge is structural, the roof behaves differently. The rafters are no longer just leaning against each other with ties resisting outward thrust. They are bearing on the ridge beam, and that beam becomes part of the main load path.

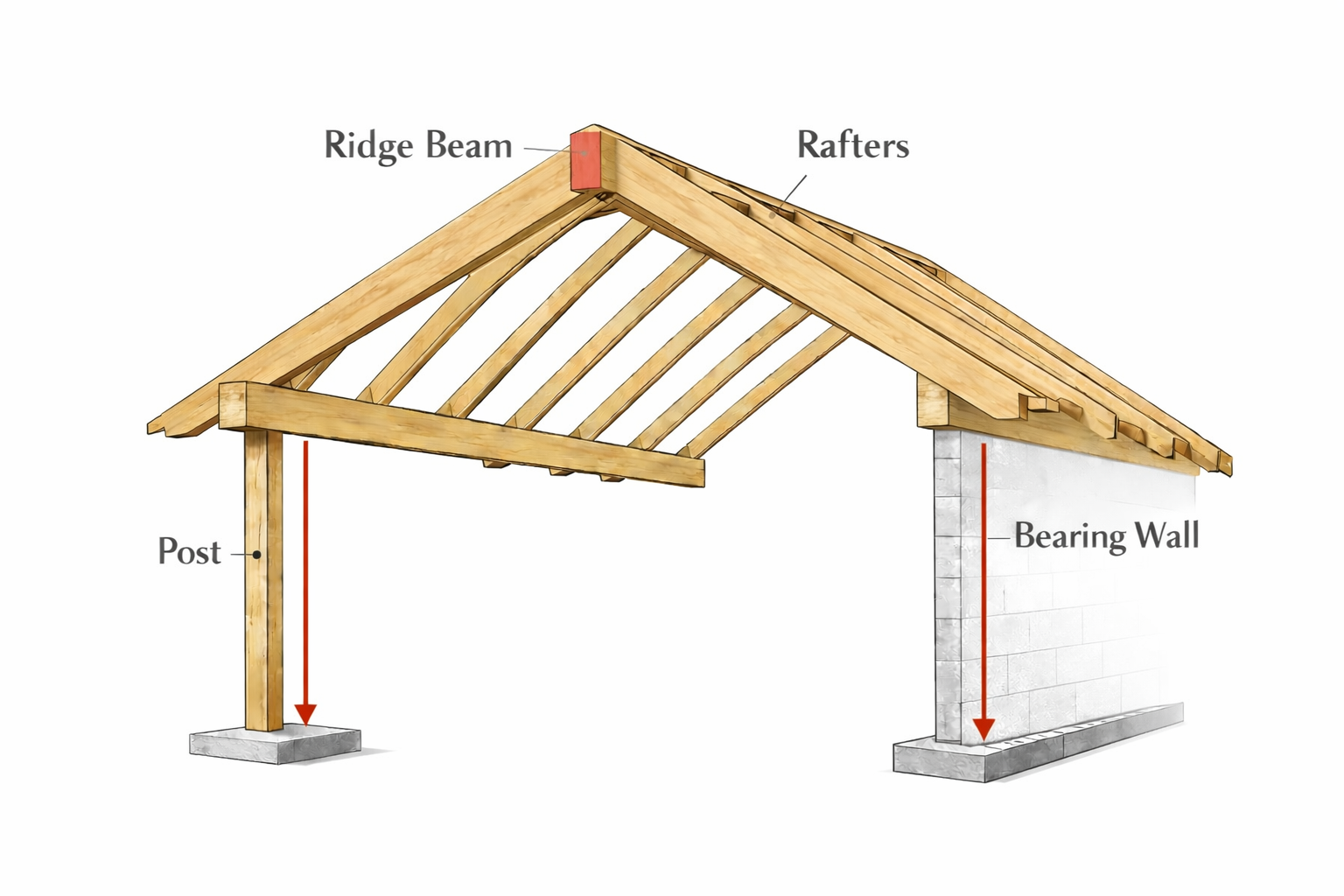

Ridge beam roof system diagram showing rafters and load path to post and bearing wall.

Illustration by ArchitectureCourses.org. Ridge beam roof framing showing how roof load transfers down to a post on one side and a bearing wall on the other.

It supports vertical roof load at the peak.
It allows open ceilings and vaulted spaces where ties are absent or intentionally removed.
It transfers concentrated loads downward into posts, walls, beams, and ultimately the foundation.
It changes the framing below, because the supports under the beam now matter as much as the beam itself.

If the roof design needs openness at the ceiling line, this is often the point where the framing stops being ordinary and starts needing a more deliberate structural strategy.

A Ridge Board Is Different

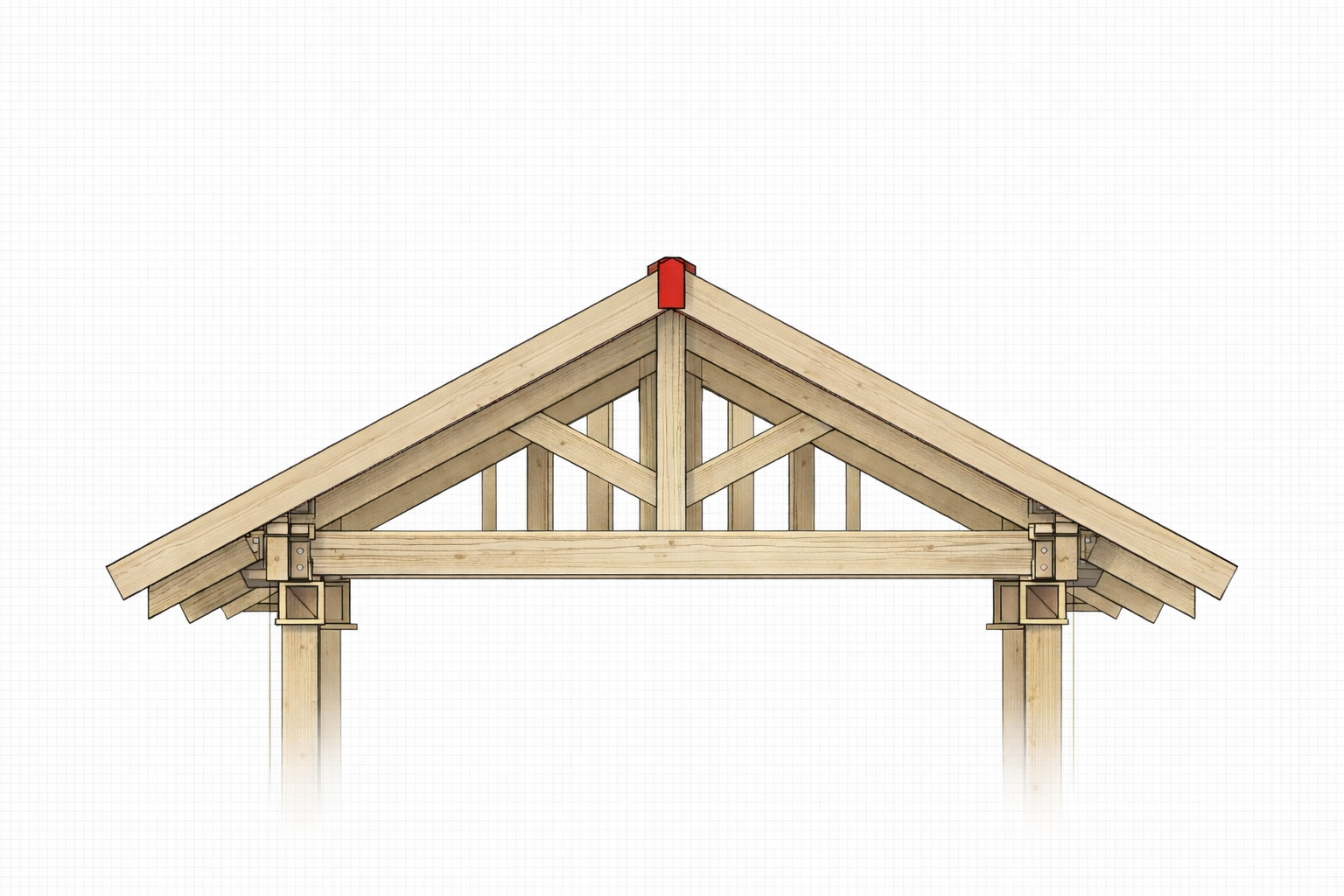

Front elevation roof framing diagram with the ridge beam highlighted in red at the apex.

A ridge board is not a ridge beam.

A ridge board is usually a non-structural member at the peak that helps align and connect opposing rafters during framing. It is useful. It is necessary in many roofs. But it does not do the same job as a structural ridge beam.

Question	Ridge Beam	Ridge Board
Load-bearing?	Yes	No
Carries roof load down?	Yes	No
Used to create open or vaulted ceilings?	Often, yes	No
Main job	Structural support	Alignment and nailing surface

The confusion usually starts because both sit at the peak. But their structural role is different. A thick ridge board is still a ridge board unless it has been designed, supported, and detailed as a load-bearing beam.

When the Roof Needs a Beam Instead of a Board

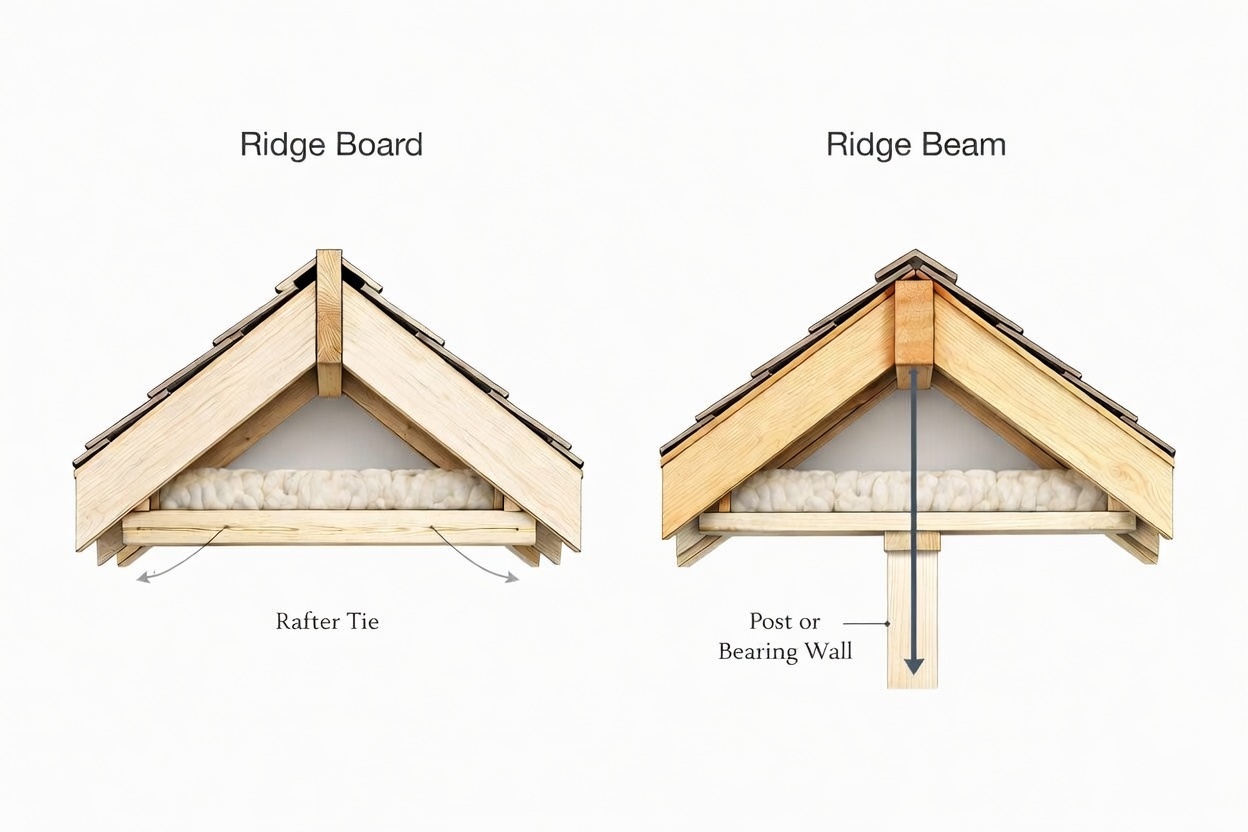

Ridge board vs ridge beam roof framing comparison showing tie-based and supported load paths.

Illustration by ArchitectureCourses.org. Ridge board and ridge beam compared at the same scale, showing the difference between a tie-based roof and a ridge supported by direct bearing below. Illustration by ArchitectureCourses.org.

This is where the decision usually gets made.

If the rafters are tied together low enough to resist outward thrust, a ridge board may be all the roof needs at the peak. If those ties are missing, raised too high to do the same job, or replaced by an open ceiling design, the roof often shifts into ridge-beam territory.

Vaulted ceilings often push the roof toward a ridge beam because the usual tie strategy is gone.
Open-concept spaces often do the same thing when interior supports are reduced.
Wider spans raise the stakes because both load and geometry become less forgiving.
Heavier roofs or stronger snow loads can also push the design toward a more robust peak support strategy.

The cleanest way to think about it is this: if the roof cannot hold itself together with the usual opposing member logic, something structural has to take over at the ridge.

The Load Still Has to Land Somewhere

This is the section old ridge-beam articles usually skip, and it is the part that matters most on site.

A ridge beam does not solve the roof by itself. It only moves the problem. The beam collects load from the rafters, but then that load has to go down through something solid below it.

That usually means one of these paths:

Posts directly below the beam ends
Load-bearing walls aligned with the support points
A secondary beam carrying the point loads
Foundations or footings sized for the concentrated load below

This is where good-looking open ceilings turn into expensive fixes. People focus on the beam and forget the post under it, the footing below that post, or the floor framing that now has to carry a concentrated load it was never designed for.

A ridge beam only works as part of a complete vertical load path. If the support below is weak, offset, undersized, or interrupted, the roof problem was not solved. It was just moved lower in the building.

Where Support Below Usually Fails

A post under the beam is only part of the answer. This is where remodels get expensive.

A post landing on a non-load-bearing wall does not create real support.
A point load dropping onto ordinary floor framing may need a beam below, not just blocking or good intentions.
A slab is not automatically enough. The slab and footing below it have to be able to carry the concentrated load.
Offsets matter. If the post, beam, wall, and footing do not line up cleanly, the load gets pushed through members that may not have been designed for it.
Openings below matter too. A post that lands near a big window or wide opening can create a new header problem immediately.

This is why ridge-beam projects often turn into more than “add one beam and remove the ties.” Once the load path changes, the structure below usually has to change with it.

Sizing Is Not a Guess

Ridge beam sizing depends on the same things that drive other structural members, but the consequences of guessing are higher because the beam is carrying real roof load from both sides.

Span between supports
Tributary roof area feeding load into the beam
Dead load from roofing, sheathing, insulation, and finishes
Live load from snow and maintenance
Material choice such as LVL, glulam, sawn timber, or steel
Deflection limits and the acceptable amount of movement
Connection design at supports and rafter seats

That is why ridge beam sizing belongs in structural calculations, not in rules of thumb. The beam can look massive and still be wrong. It can also look leaner than expected and be correct because the material, load, and support conditions were engineered properly.

MUST READ: Complete Book of Framing: An Illustrated Guide for Residential Construction

Common Ridge Beam Materials

Material	Where it fits	Main advantage	Main trade-off
LVL	Many residential roofs and remodels	Predictable strength and clean sizing options	Needs careful protection and proper support detailing
Glulam	Longer spans and exposed wood interiors	Strong, stable, and visually cleaner when left exposed	Higher cost than basic sawn lumber solutions
Solid sawn timber	Traditional or smaller-scale work	Visual character and simple material language	More variation, more movement, and more sizing limits
Steel	Longer spans or tighter depth conditions	High capacity with a slimmer profile	More specialized detailing, handling, and fire/moisture considerations

There is no universally best ridge beam material. The right choice depends on span, appearance, cost, support conditions, and how much depth the roof can tolerate.

Where Installations Go Wrong

Using a ridge board where the roof really needs a beam.
Thinking the beam solves everything without checking the supports below.
Undersizing end bearing or post connections.
Letting the beam bear on framing that was not designed for the point load.
Choosing fasteners or brackets casually instead of by design.
Ignoring lateral stability in a roof that still needs proper bracing.

The most common mistake is not the beam itself. It is pretending the ridge beam is an isolated object instead of part of a full structural chain.

Ridge Beam Roof vs Truss Roof

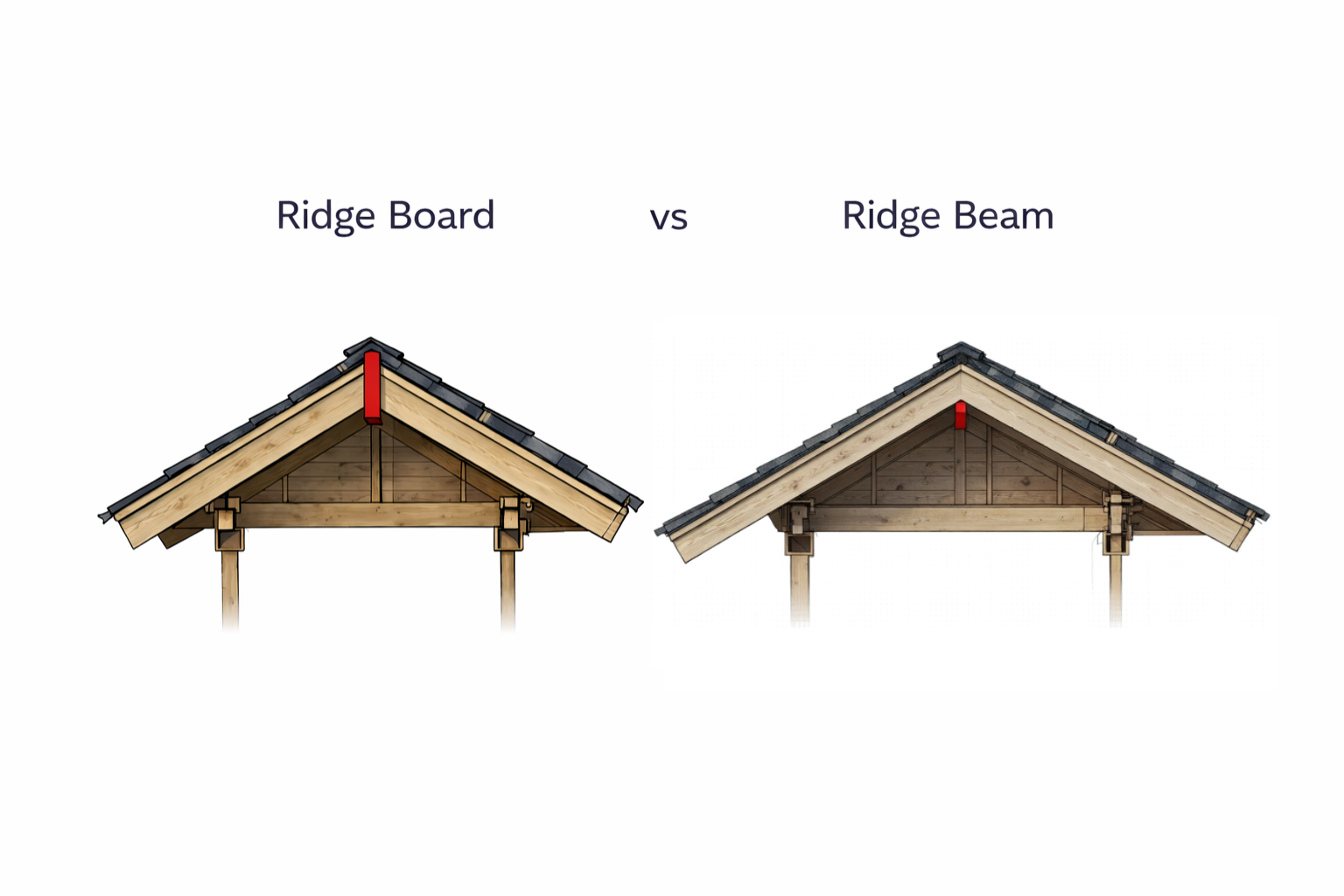

Side-by-side comparison of ridge beam and ridge board in roof framing.

Illustration by ArchitectureCourses.org. Front-view comparison showing a ridge board on the left and a ridge beam on the right.

A truss roof and a ridge-beam roof solve roof structure differently.

Trusses use internal members to distribute loads through the truss itself. A ridge-beam roof keeps the roof more open at the ceiling line, but shifts the structural work into the beam and its supports.

Question	Ridge Beam Roof	Truss Roof
Works well for open ceilings?	Yes	Usually less so
Prefabricated as a full roof system?	Not typically in the same way	Often, yes
Needs a clear support path below the peak?	Yes	Handled differently through the truss system
Best when	The design wants openness and exposed roof form	The design wants efficiency and repeatable roof framing

If you are comparing systems more broadly, continue with Roof Trusses, Truss Design 101, and Roof Truss Details.

FAQ

Do all roofs need a ridge beam?

No. Many standard gable roofs use a ridge board with rafters tied together properly below. A ridge beam becomes more likely when the roof loses that tie strategy or needs a more open interior.
