T-Brace Framing: Everything You Need to Know

T-Brace Framing: What It Is and How It Strengthens Structures

If you're working on a wall, roof, or deck, you might need T-brace framing to add stability and strength.

This guide breaks down what T-braces are, why they’re used, how to install them, and the best materials for different applications.

Want to learn more? Our free courses on structural design and installation are built for professionals, students, and homeowners.

We focus on real-world scenarios and practical applications, taught by experts who have worked on similar projects—no fluff, just hands-on learning.

What is T-Brace Framing?

🔹 T-bracing is a reinforcement method that helps prevent shifting, leaning, or collapse in wooden and metal-framed structures. It’s a simple but effective way to increase rigidity in walls, roofs, and decks.

🔹 Where It’s Used:
✔ Walls – Prevents leaning or shifting
✔ Roofs – Adds rigidity against wind and seismic loads
✔ Decks – Strengthens posts and frames to resist swaying

Types of Metal T-Bracing & When to Use Them

Standard Metal T-Bracing

Best for: General wall reinforcement in wood framing
✔ Simple T-shaped metal strips attach between studs
✔ Prevents walls from racking and shifting

T-Shaped Diagonal Bracing

Best for: High-wind and earthquake-prone areas
✔ Installed diagonally across framing members
✔ Provides extra strength against lateral forces

Heavy-Duty Steel T-Bracing

Best for: Industrial & commercial buildings
✔ Made from thicker steel for high-load applications
✔ Used in warehouses, large sheds, and commercial spaces

Roof T-Bracing

Best for: Trusses and rafters in hurricane zones
✔ Reinforces roof structures against wind uplift
✔ Works well with hurricane clips

Deck T-Bracing

Best for: Stabilizing decks & balconies
✔ Installed diagonally between posts & beams
✔ Stops wobbling & lateral movement

🔹 T-bracing is a structural support system that reinforces walls, decks, and roof framing by using a T-shaped metal brace. It’s commonly used to prevent lateral movement, racking, or collapse in wood and steel frame structures.

T-Bracing vs. Other Reinforcement Methods: What to Use & When

T-bracing is just one method of structural reinforcement. Depending on your project—whether it’s a wall, roof, deck, or shed—other methods like shear panels, diagonal bracing, cross-bracing, or let-in bracing may work better. Below is a detailed comparison of all major options, their pros/cons, and when to use each.

T-Bracing vs. Other Reinforcement Methods: Which One Works Best?

T-Bracing vs. Other Bracing Methods: Strength, Cost, and Application

🔹 1. T-Bracing (Metal T-Braces)

Best for: Quick, lightweight reinforcement in wood framing, deck posts, and trusses.
✔ Made of: Galvanized steel or aluminum
✔ Installation: Attached to studs, trusses, or deck posts with screws
✔ Strength: Good for preventing racking but not for extreme loads

When to Use:
✔ Walls: If plywood sheathing isn’t an option, T-bracing keeps the frame from shifting.
✔ Decks: Prevents deck posts from wobbling or leaning.
✔ Roof Trusses: Adds extra stability to prevent lateral movement.
Avoid If: You need shear strength—plywood panels or diagonal bracing are better.

🔹 2. Diagonal Bracing (Wood or Metal Straps)

Best for: Lateral strength in walls and decks, used in high-wind or seismic areas.
✔ Made of: Wood, steel, or tensioned cables
✔ Installation: Runs diagonally across studs, posts, or trusses
✔ Strength: Higher than T-bracing, great for shear load resistance

When to Use:
✔ Walls & Roofs: Provides extra strength against wind loads.
✔ Decks: Used between posts to prevent swaying.
✔ Metal Buildings: Steel diagonal bracing is standard in industrial construction.
Avoid If: You don’t have space—diagonal bracing can interfere with windows and doors.

Best Seller Recommendation: Simpson Strong-Tie 14-Gauge(2MM) Hurricane Ties
✔ Heavy-duty steel construction for walls, decks, and trusses
✔ Corrosion-resistant finish for indoor & outdoor use
Check on Amazon

🔹 3. Cross-Bracing (X-Bracing)

Best for: High seismic & hurricane zones where extreme lateral movement must be stopped.
✔ Made of: Steel rods, cables, or wood
✔ Installation: Two braces crossing in an X-shape
✔ Strength: Stronger than diagonal bracing for seismic stability

When to Use:
✔ Steel Buildings: Used in skyscrapers & warehouses.
✔ Tall Walls & Open Frames: Stops sway in tall structures with minimal materials.
Avoid If: Your frame doesn’t allow for X-shaped bracing—it can obstruct openings.

Best Seller Recommendation: MiTek X-Bracing Kit for Metal Buildings
✔ Steel tension cables for maximum stability
✔ Works with steel & wood structures

🔹 4. Shear Panels (Plywood or OSB)

Best for: Residential construction where full-wall bracing is required.
✔ Made of: Plywood or oriented strand board (OSB)
✔ Installation: Nailed to the entire wall surface
✔ Strength: Extremely high shear strength, great for earthquakes

When to Use:
✔ Homes & Garages: Most homes use plywood sheathing for rigidity.
✔ Earthquake Zones: Plywood prevents buildings from twisting.
Avoid If: You need airflow—solid shear walls block ventilation.

Best Seller Recommendation: Georgia-Pacific Plytanium Plywood Sheathing
✔ Strong, durable, and moisture-resistant
✔ Perfect for walls & roofs

🔹 5. Let-In Bracing (Recessed Wood or Metal Strips)

Best for: Older wood-frame houses or projects requiring hidden reinforcement.
✔ Made of: Wood or metal strips
✔ Installation: Recessed (let-in) into studs for a flush surface
✔ Strength: Moderate strength, mostly for old-school wood framing

When to Use:
✔ Historic Homes: Maintains original framing methods.
✔ Interior Walls: If you don’t want bulky plywood.
Avoid If: Not up to modern building codes—plywood or diagonal bracing is stronger.

Best Seller Recommendation: Simpson Strong-Tie Let-In Brace
✔ Recessed steel bracing for stud walls
✔ Compatible with new & historic homes
View on Amazon

🔹 6. Tension Cables & Rod Bracing

Best for: Industrial & commercial steel buildings where adjustable bracing is needed.
✔ Made of: High-tension steel cables or rods
✔ Installation: Bolted between columns, can be adjusted as needed
✔ Strength: Very high, used in airports, bridges, and skyscrapers

When to Use:
✔ Commercial Steel Structures: Warehouses, airplane hangars.
✔ Bridges & Towers: Long-span stability over roads & rivers.
Avoid If: Too expensive for small residential projects.

Best Seller Recommendation: Simpson Strong-Tie HTT Tension Rod Kit
✔ Designed for high-tension load resistance
✔ Adjustable for different applications
Check it out on Amazon

Choosing the Right Bracing for Your Project

Bracing Type	Best For	Strength Level	Common Use Cases	Avoid If...
T-Bracing	Walls, decks, & trusses	Moderate	Quick, lightweight bracing	Need high shear strength
Diagonal Bracing	High-wind & seismic zones	High	Stronger walls & decks	Need unobstructed wall space
Cross-Bracing	Tall structures & metal frames	Very High	Industrial steel buildings	X-shape blocks openings
Shear Panels	Residential homes & garages	Extremely High	Most new construction	Blocks ventilation
Let-In Bracing	Historic homes & flush walls	Moderate	Hidden reinforcement	Not code-compliant in some areas
Tension Cables	Industrial steel structures	Extremely High	Airports, warehouses, bridges	Too expensive for homes

Which One Should You Use?

✔ Homeowners: Stick with T-bracing or plywood shear walls for small projects.
✔ Builders: Use diagonal or cross-bracing for high-wind or seismic areas.
✔ Engineers: Tension cables or X-bracing for steel buildings.
✔ Restorations: Let-in bracing works well for older homes that need structural reinforcement.

Installation Guide: How to Install a T-Brace

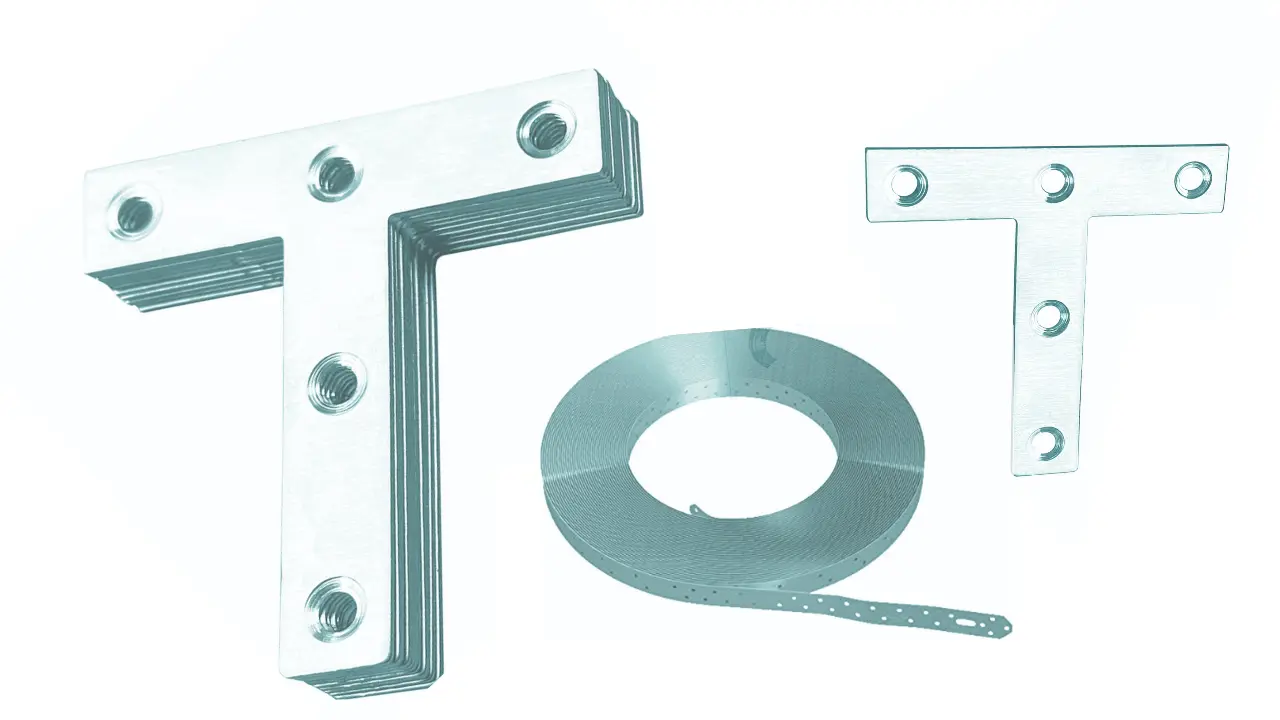

Truss braces and metal bracing straps used for reinforcing roof structures and trusses.

🔹 Tools & Materials Needed

Metal T-braces (galvanized steel for rust protection)
Wood screws or bolts
Drill or hammer
Measuring tape & level

🔹 Step-by-Step Installation

1️⃣ Wall Framing (Preventing Racking)

When to Use: If your wall shifts or leans, T-bracing stops movement.
✔ Measure diagonal length from top corner to bottom opposite corner.
✔ Attach metal T-brace diagonally using screws.
✔ Secure it at stud intersections for extra strength.

2️⃣ Roof Framing (Preventing Wind Lift)

When to Use: In high-wind zones, roof framing needs extra reinforcement.
✔ Install T-braces between trusses to prevent shifting.
✔ Use hurricane clips along with T-bracing for extra security.
✔ Secure with structural screws instead of nails (nails can loosen over time).

3️⃣ Deck Bracing (Eliminating Swaying)

When to Use: If your deck wobbles, you need T-bracing.
✔ Install T-braces diagonally between posts and beams.
✔ Use stainless steel fasteners for durability.
✔ Check local building codes for spacing and material requirements.

Best Seller Recommendation: Structural Bracing Guide

"Simplified Design of Building Trusses for Architects and Builders" – by James Ambrose

Why You Need This Book:

✔ Covers T-bracing, lateral support, and load calculations.
✔ Includes real-world framing examples with diagrams.
✔ A must-have for builders, engineers, and DIYers.

Who It’s For: Perfect for students, architects, and construction pros looking for clear, practical advice.

[View on Amazon]

T-Brace Load Calculations: Key Formulas Explained

🔹 Formula 1: Calculating the Required T-Brace Strength

F = W × H × K
✔ F = Total force on the brace (in Newtons or pounds)
✔ W = Width of the wall or structure
✔ H = Height of the wall or structure
✔ K = Safety factor (depends on wind/seismic zone)

Example:
If a 10 ft x 8 ft wall is in a high-wind zone, use a K-value of 1.5 to ensure extra strength.

FAQ

Q: Do I need T-bracing in interior walls?
🔹 Only if they’re load-bearing or in seismic zones.

Q: Can T-bracing replace plywood sheathing?
🔹 Sometimes—metal T-braces work for shear strength, but plywood is better for insulation.

Q: What’s the best T-brace for hurricane zones?
🔹 Heavy-duty steel T-braces + hurricane clips for maximum wind resistance.

Q: Are there free software options for designing T-brace framing?
🔹 Yes! Try SketchUp for quick models, or FreeCAD for more detailed structural analysis.
