Rafter ties and collar ties are not interchangeable.
A rafter tie works low and helps resist outward thrust at the walls. A collar tie works high near the ridge and helps resist separation there. The confusion starts when both get treated like the same piece doing the same job.
If you want the broader roof support picture first, go to tie beams in roofs. If you want the dedicated ridge discussion, use ridge beams and placement.
Start With the Real Difference
| Member | Main job | Typical location | What it does not replace |
|---|---|---|---|
| Rafter tie | Resists outward thrust that pushes walls apart | Lower third of opposing rafters or ceiling-joist level | Structural ridge support when the roof needs one |
| Collar tie | Helps resist separation near the ridge under uplift-related forces | Upper third of opposing rafters | Lower rafter ties |
| Structural ridge beam | Carries vertical roof load | At the ridge, with real support below | Rafter ties or collar ties doing their own separate jobs |
That is the whole argument in one table. A rafter tie is not a collar tie moved lower. A collar tie is not a hidden rafter tie. A ridge beam is a different structural answer entirely.
MUST READ
The Complete Book of Framing
Clear tie placement. Useful drawings. Good reality check before anyone starts raising members just to clean up a ceiling.
What a Rafter Tie Really Does

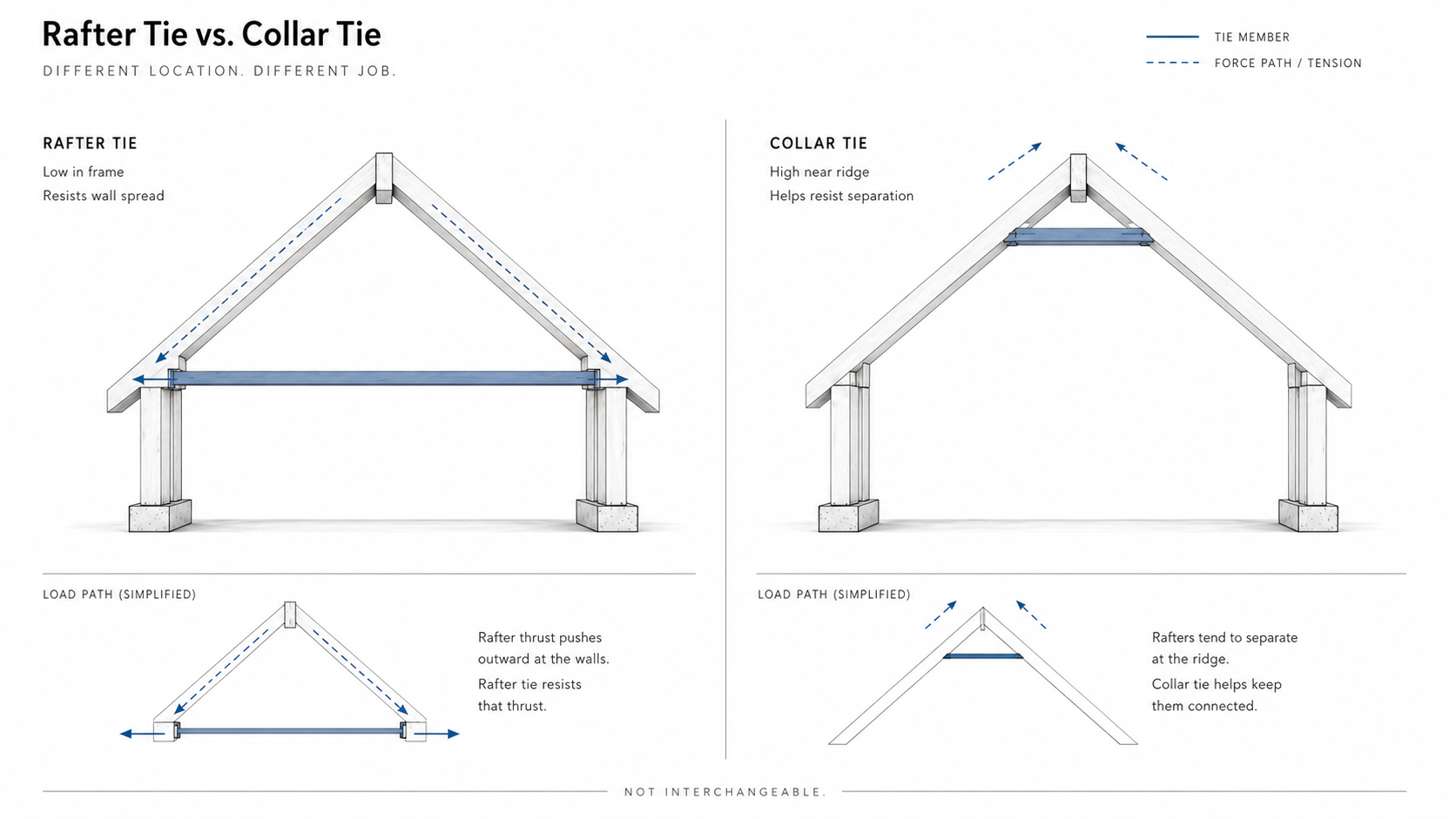

Illustration by ArchitectureCourses.org. Collar ties and rafter ties do different jobs in a roof frame, so they should not be treated as the same member.. Rafter ties work low in the roof to keep opposing rafters from spreading the walls apart.
A rafter tie works in tension. It ties the lower ends of opposing rafters together so the roof does not push the walls outward under load.
That is why low placement matters. The farther up the member goes, the less useful it becomes for controlling outward thrust. Once it moves high enough, it stops acting like a proper rafter tie and starts becoming something else.
- Main job: control outward wall spread.
- Typical zone: lower third of the rafters, or ceiling-joist level when ceiling joists are acting as rafter ties.
- Most important when: the roof does not have a structural ridge beam carrying the vertical load.
If the roof is shallow, the need gets more serious because outward thrust becomes harder to ignore. If the roof has no proper lower tie strategy, the signs usually show up later as wall movement, ridge sag, drywall cracks, trim separation, and doors that slowly stop behaving.
If you want the dedicated page, see Rafter ties in construction: purpose, function, and installation and why we use rafter ties.
What a Collar Tie Actually Helps With

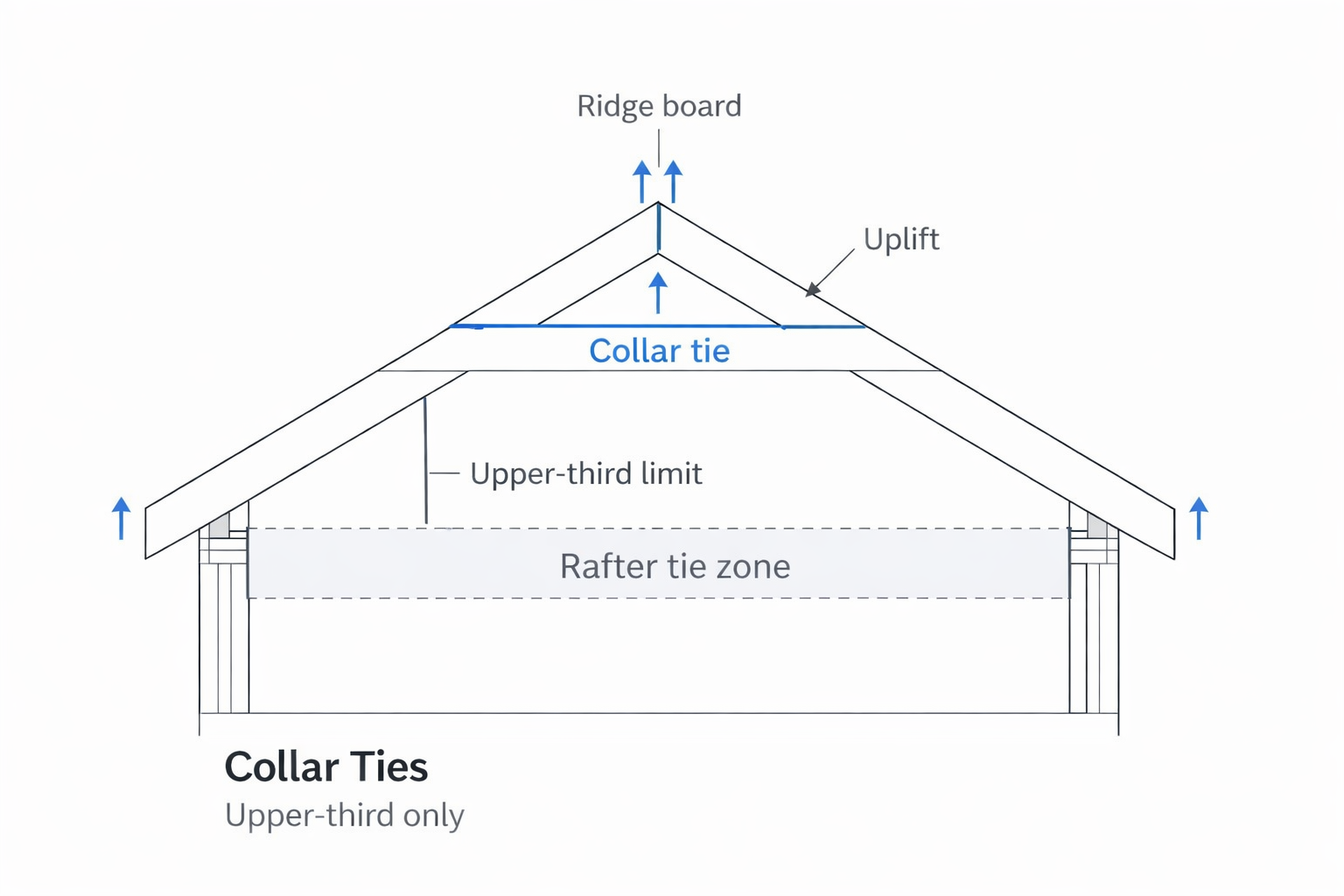

Image by ArchitectureCourses.org. Collar ties sit high near the ridge and are used for a different force path than lower rafter ties.
A collar tie works high in the roof, usually in the upper third. It helps keep opposing rafters tied together near the ridge area under uplift-related loading.
That does not make it a substitute for a rafter tie. A collar tie is working in a different part of the roof and dealing with a different problem.
- Main job: help resist separation near the ridge.
- Typical zone: upper third of the rafters.
- Common use: roofs where upper-roof tension detailing matters and the framing design calls for it.
When people say collar ties stop the walls from spreading, the page has already started going wrong. That is not the right mental model for this member.
Why the Confusion Keeps Happening
Image by ArchitectureCourses.org. Upper-roof members can look similar in drawings, but their structural role changes with height, force, and overall roof strategy.
The confusion usually starts because both members connect opposing rafters, both can be visible in a roof section, and both sound like they “tie” something together. That is not enough to make them structurally interchangeable.
A roof does not care what the piece is called in conversation. It only cares what force that piece is meant to resist and where it sits in relation to the rafters, ridge, and walls below.
- Calling collar ties rafter ties.
- Thinking any horizontal member between rafters will stop the walls from spreading.
- Moving a rafter tie upward to clean up a room and assuming it still does the same job.
- Using a collar tie to solve a thrust problem that really calls for lower ties or a structural ridge beam.
Tension Versus Thrust: That Is the Whole Game

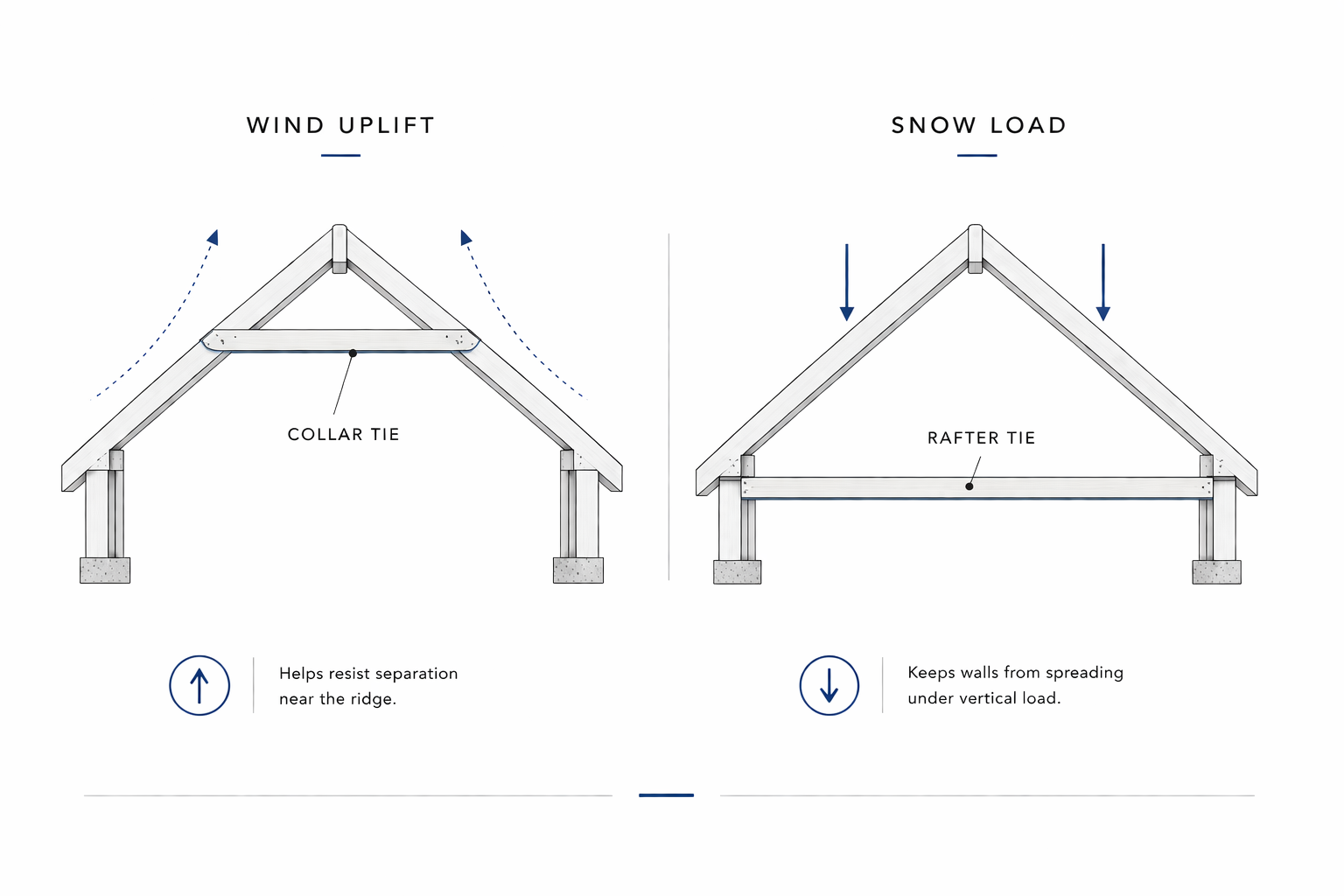

Image by ArchitectureCourses.org. Comparison diagram showing why lower rafter ties and upper collar ties belong to different force paths in a gable roof.
| Question | Rafter Tie | Collar Tie |
|---|---|---|
| Main job | Resist outward thrust at the walls | Help resist separation near the ridge |
| Where it sits | Lower third | Upper third |
| Best thought of as | Part of the lower roof tension strategy | Part of the upper roof tension strategy |
| What it does not replace | Structural ridge support when that is needed | Lower ties controlling wall spread |
If that table is right, most of the rest of the roof starts making sense.
Open Ceilings Change the Whole Answer
Once you raise or remove the lower ties to open the room, the roof may stop behaving like a simple tied-rafter system. At that point the question is no longer whether the tie can move higher. The question becomes whether the roof now needs a different structural strategy, often involving a ridge beam and a real support path below.
That is why open ceilings, vaulted rooms, and clean cathedral profiles are not just finish decisions. They are framing decisions first.
If you are working in that territory, read Collar ties in vaulted ceilings: do you need them? and Ridge beams: function, design, and installation in roof framing.
When Rafter Ties Make More Sense
Image by ArchitectureCourses.org. Lower tie placement matters most when the roof still relies on a tied-rafter strategy instead of a structural ridge solution.
Low-pitch roofs. Simple gable roofs. Standard framing where the ridge is not acting as a structural beam. Roofs with a history of wall movement. Roofs where the cleanest answer is still to keep the tension low and honest.
That is where rafter ties need to do the work, not collar ties being asked to solve a problem they were not placed to solve.
If wind bracing is also part of the job, pair the tie logic with truss and roof bracing.
FIELD PICK
Graphic Guide to Frame Construction
One of the better visual references when you need to explain tie placement fast without turning the site into a lecture.
When Collar Ties Make More Sense
Image by ArchitectureCourses.org. Collar ties belong high in the roof and are part of the upper-roof tension strategy, not the lower thrust-control strategy.
Steeper roofs. Roofs where upper-roof tension detailing matters. Rooms where the framing design keeps the lower ceiling line open and the roof has already been resolved structurally in another way.
That still does not give collar ties permission to do everything. They stay in their lane. They work high. They help near the ridge. They do not become invisible rafter ties just because the room below looks better without low members.
Common Mistakes That Cost Money Later
- Using collar ties to solve wall spread.
- Raising rafter ties so high they stop doing the lower-tension job.
- Opening the room below without changing the structural ridge strategy.
- Assuming a roof that looks neat on paper has a complete load path.
- Treating roof member names like style choices instead of force-path choices.
These are the roofs that look fine for a while. Then the drywall hairlines start. Then trim joints open. Then the ridge line tells the truth.
MUST READ
Roof Framing by Marshall Gross
Good sketches. Good practical framing logic. Especially useful when the roof shape and tie layout stop being basic.
Before You Close the Ceiling
- If the walls want to move outward, the roof needs proper lower ties or a structural ridge solution.
- If the concern is separation near the ridge, collar ties may be part of the answer.
- If the room is being opened up, check the ridge strategy before you assume a tie can simply be moved.
- If the load path feels fuzzy, stop and resolve it before the finish work hides the mistake.
Rafter ties hold the box together low. Collar ties help high near the ridge. Get those jobs straight and the roof has a much better chance of staying quiet for years.
FAQ
Are rafter ties and collar ties the same thing?
No. They sit in different parts of the roof and are meant to resist different forces.
Do collar ties stop walls from spreading?
Not in the same way lower rafter ties do. That is where a lot of bad roof advice begins.
Can I raise rafter ties to make the room feel taller?
Not casually. Once the lower tie strategy changes, the roof may need a different structural answer.
Do I need collar ties if I already have a ridge beam?
That depends on the roof design, code path, and the forces being addressed. A ridge beam and collar ties are not solving the same structural problem.
When does the roof need more than either one?
When the room is being opened up, the spans are getting longer, or the roof no longer behaves like a simple tied-rafter system. That is usually where the structural ridge and support path below become the bigger issue.
