Rafter Ties: What They Do

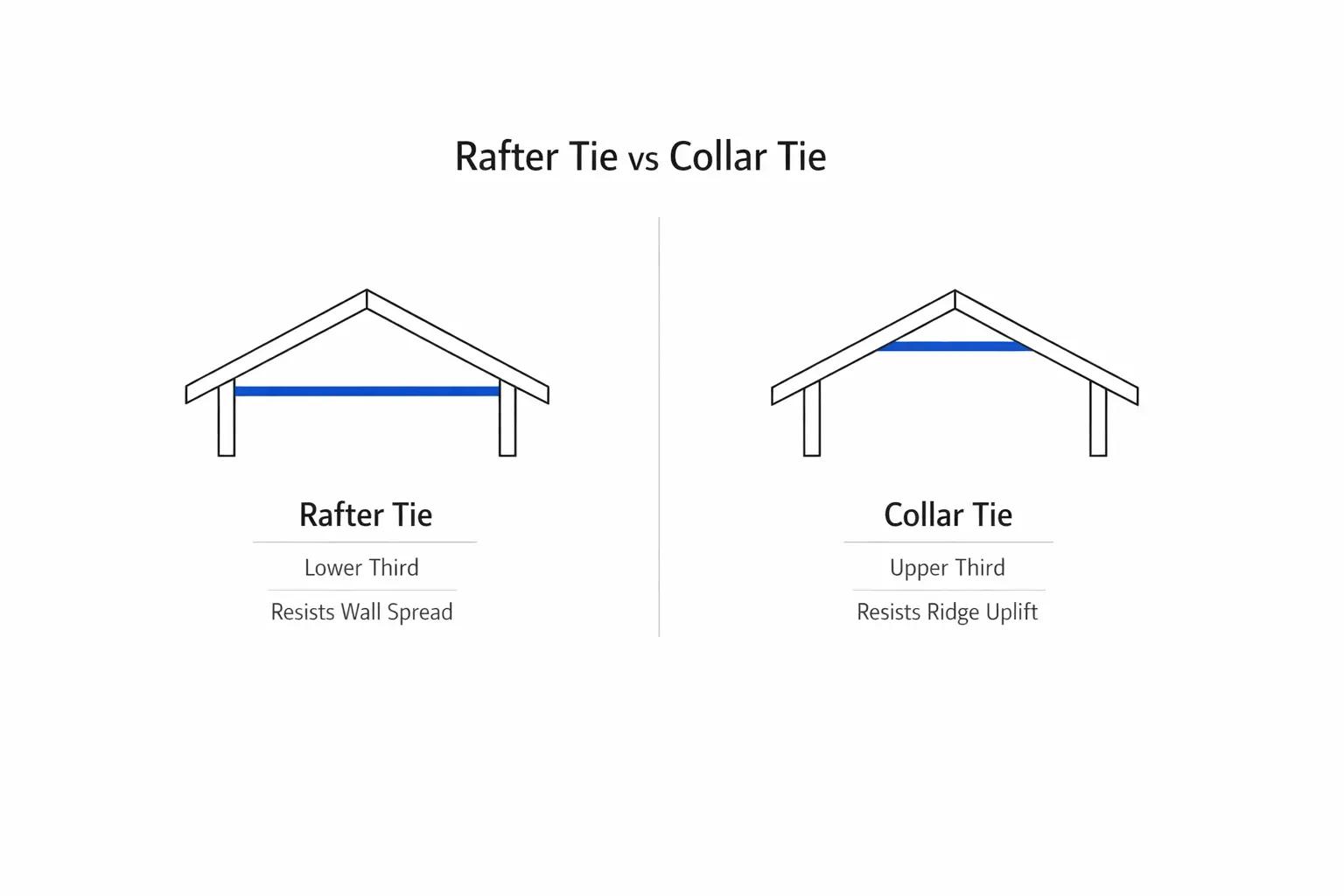

Rafter tie vs collar tie roof framing comparison diagram.

Image by ArchitectureCourses.org. Rafter ties work low in the roof to keep opposing rafters from spreading the walls apart.

A rafter tie is there to keep the roof from pushing the walls apart.

It works low in the roof, tying opposing rafters together so the structure stays in tension instead of spreading outward under load. When that tie is missing, too high, or too weak, the movement usually shows up as cracks, separation, and a roof line that starts looking wrong. Trouble starts when rafter ties get confused with collar ties or ridge beams, which do different jobs.

What a Rafter Tie Does

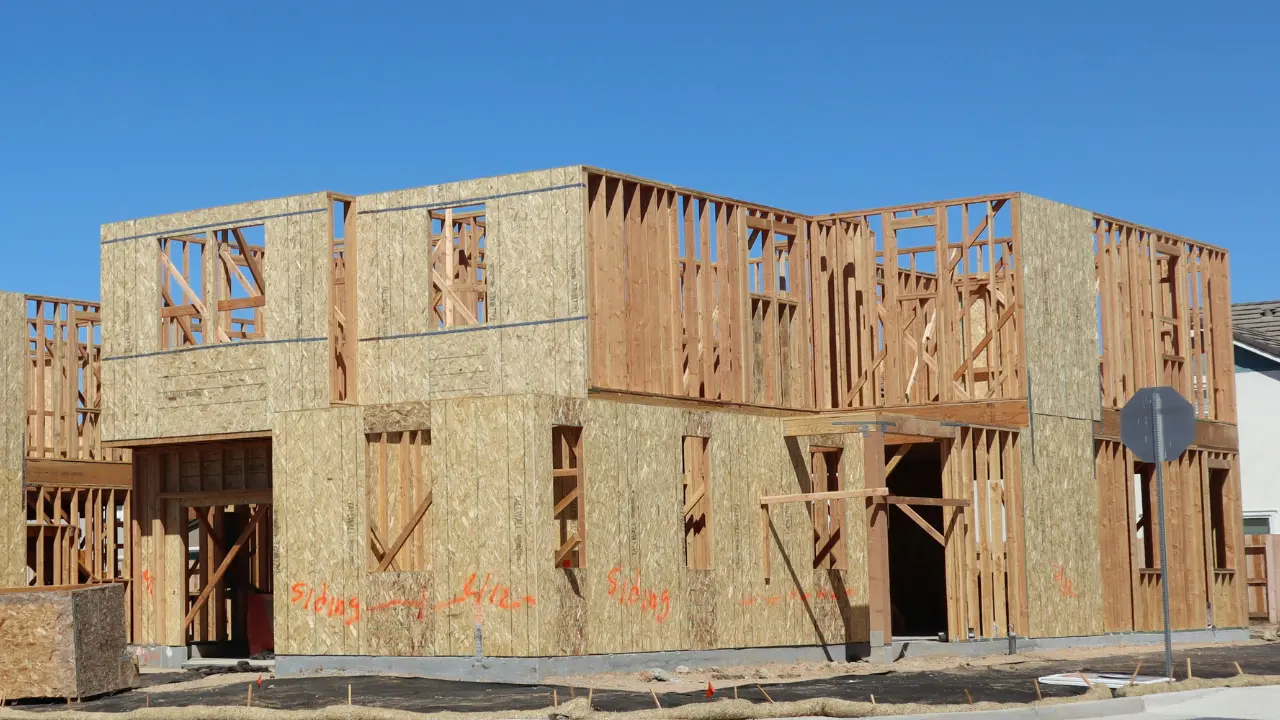

A large house under construction, showing its wooden framing structure in the early building stage.

Image by ArchitectureCourses.org. Rafter ties work in the lower part of the roof structure to resist outward thrust.

A rafter tie is a horizontal structural member that connects opposing rafters in the lower part of the roof.

It resists outward thrust.
It helps keep walls from bowing outward.
It helps the roof hold its geometry over time.
It matters most when the roof does not have a structural ridge beam carrying that load another way.

The lower location is the point. Once the member moves too high, it stops doing the same job well. That is why a roof can still have horizontal members in it and still have a spreading problem.

If the broader roof version of this discussion is what you need, continue with Roof Tie Beams.

Rafter Ties vs. Collar Ties

Member	Main job	Typical location
Rafter tie	Resists outward thrust that pushes walls apart	Lower third of the roof structure
Collar tie	Helps resist separation near the ridge under uplift-related forces	Upper third of the roof structure

This is the distinction that clears up most of the confusion. Rafter ties work low and deal with spread. Collar ties work high and deal with a different force path near the ridge.

For the full comparison, go to Rafter Ties vs. Collar Ties. If you are trying to understand when the roof needs a different answer entirely, read Ridge Beams.

When Rafter Ties Are Needed

Roofs without a structural ridge beam.
Simple gable roofs where rafters would otherwise push outward at the walls.
Longer spans where movement becomes less forgiving.
Older roofs showing signs of spread or slow movement.
Roofs in wind-prone areas where connection quality matters even more.

That does not mean every roof uses them in the same way. Trusses, engineered systems, ridge beams, and other support strategies can change the answer. But in tied-rafter roof framing, this member is part of what keeps the building from slowly pushing itself apart.

Placement Matters More Than People Think

The most common mistake is raising the ties to clean up the room below.

That usually looks better on day one. Structurally, it can be a different story. Rafter ties belong in the lower part of the roof where they can resist the outward thrust effectively. Raise them too far and they stop acting like proper rafter ties.

Condition	What usually works better
Standard tied-rafter roof	Keep ties low enough to do the thrust-control job
Need more open ceiling height	Rework the roof structurally instead of casually lifting the ties
Vaulted or cathedral ceiling	Use the ridge strategy and support path the roof actually needs
Heavy loads or long spans	Check engineering, member size, and connection design instead of guessing

This is where many expensive fixes start. The room gets opened up, the ties go too high or disappear, and the roof begins acting like a different structural system without anyone fully admitting that is what happened.

Connections Matter Too

A rafter tie only works when it is tied into the rafters properly.

Weak fasteners weaken the whole idea.
Loose connections let the roof move before the member can do its job.
Longer spans and heavier loads may need more than simple nailing.
Metal connectors can help when the detail and load path call for them.

If the roof needs added hardware instead of a simple nailed connection, see Metal Rafter Braces and How to Install Metal Rafter Braces Like a Pro.

FIELD PICK
Simpson Strong-Tie BCS2-2/4 Double-Shear Joist Hanger
A useful hardware reference when the detail needs a more defined connection than basic nailing alone.

What Happens When Rafter Ties Are Missing or Weak

Failure usually shows up slowly first.

Walls start spreading outward.
Ceilings and drywall begin cracking.
The ridge line starts sagging or drifting.
Trim joints open up and keep reopening.
Windows and doors near the top of the wall can start behaving badly.

Those symptoms do not prove the ties are the only problem, but they often point to a bigger issue in the roof’s thrust-control strategy. If the roof is also showing bracing problems, continue with Types of Truss Bracing and Understanding Diagonal Truss Bracing.

When a Rafter Tie Is Not the Right Answer

Some roofs need a different structural move altogether.

If the design calls for an open cathedral ceiling, a wide span, or a ridge that is doing real load-bearing work, the answer may not be “add a rafter tie.” The answer may be a ridge beam, engineered framing, or a different roof system.

That is why rafter ties should be read as part of the full roof strategy, not as a universal fix. They are the right answer when the roof still behaves like a tied-rafter system. They are the wrong answer when the roof has already become something else.
