Installing metal rafter braces starts with the connection, not the hardware alone. The brace has to match the structural problem, the framing has to be aligned before anything gets locked in place, and the fasteners have to be the ones the hardware was designed for.
That is where bad installs start. A strong brace in the wrong spot, or the right brace with the wrong fasteners, can leave the roof looking reinforced without fixing the actual weakness. If you still need to choose the hardware, start with Metal Rafter Braces. For the bigger roof-framing picture, go to roof structure.
Before You Start
- Confirm what the brace is supposed to do. Uplift restraint, local connection reinforcement, and diagonal stiffening are not the same job.
- Check the manufacturer schedule. Most structural connectors are only rated with specific nails or screws in specific holes.
- Check the framing first. Twisted rafters, bad spacing, or out-of-plumb members should be corrected before the brace goes on.
- Check local code and wind or snow requirements. In exposed conditions, the connector detail may matter more than the connector brand.
If the roof needs broader stability beyond one local brace, continue with Truss Lateral Bracing and Understanding Diagonal Truss Bracing.
Choose the Right Brace First
| Brace type | Main job | Use it when |
|---|---|---|
| Hurricane tie | Helps hold rafters down against uplift | High-wind or storm-prone areas |
| Angle or corner brace | Stiffens a local rafter connection | A joint needs more connection strength |
| Strap tie | Ties members together across a connection or load path | You need longer or flatter restraint |
| Diagonal or cross brace | Helps resist lateral movement across framing | The roof needs added stiffness across multiple members |
| Adjustable bracket | Allows controlled positioning in non-standard framing | Renovation or custom geometry makes fixed hardware awkward |
Do not use a hurricane tie to solve a general bracing problem, and do not use a diagonal brace when the real weakness is a local rafter-to-plate connection. The brace has to match the force path.
Lay Out the Work Before You Fasten Anything
- Mark the brace location. Do not guess the position once the driver is in your hand.
- Check rafter spacing and plumb. A brace will lock in bad geometry as easily as good geometry.
- Dry-fit the hardware. Make sure the brace sits tight to the wood without twisting or forcing the members out of place.
- Pre-drill only when the hardware or wood condition calls for it. Dense lumber, large structural screws, and retrofit work often benefit from it.
This is also the point to stop if the framing problem is larger than the connection. If the rafters are undersized, the ridge strategy is wrong, or the walls are already moving, a brace is not the first fix.
Installing Local Connection Braces
For angle braces, corner braces, and many strap details, the installation sequence is simple but needs to be clean.
- Seat the brace tight to both members.
- Start the first fasteners without fully tightening. That lets you correct minor alignment before the joint is locked.
- Fill the required holes with the required fasteners. Do not skip holes unless the manufacturer says some are optional.
- Tighten or finish-drive in sequence. That helps the brace bear evenly instead of twisting to one side.
- Recheck the member alignment after fastening.
If the detail is a rafter-seat or tie-down condition rather than a general brace, the dedicated pages on Roof Tie Beams and Rafter Ties vs. Collar Ties help clarify what the hardware is supporting and what it is not.
Installing Uplift Braces and Hurricane Ties
Uplift-rated hardware needs more discipline than generic field bracing because the connector is usually part of the wind-resistance path.
- Keep the brace seated flat against both the rafter and the support.
- Use the exact nail or screw type specified for that connector.
- Do not substitute deck screws or random structural-looking fasteners.
- Make sure the connector is tying into the actual support path below, not just finish lumber or blocking that is not carrying the load.
If the roof sits in a wind-exposed area, the brace is only one part of the story. The connection still has to work with the larger roof and wall system.
Installing Diagonal or Cross Bracing
Diagonal or cross bracing is used when the problem is broader lateral movement across the framing, not just one weak joint.
- Set the brace line first. The diagonal needs to work across the framing, not wander around obstacles without logic.
- Keep the angle consistent. Random angles weaken the restraint pattern.
- Fasten at every intended intersection.
- Do not stop the brace wherever it becomes inconvenient. If the load path breaks, the bracing pattern weakens with it.
If that broader restraint pattern is the actual topic, go next to Understanding Diagonal Truss Bracing, Truss Lateral Bracing, and Metal T-Bracing in Roof Construction.
Fasteners Matter as Much as the Brace
A brace is only as good as the way it is fastened.
- Use structural fasteners, not convenience fasteners.
- Match the fastener finish to the climate. Humid or coastal work usually needs better corrosion resistance.
- Do not overdrive fasteners. Crushed wood fibers and distorted holes weaken the connection.
- Do not under-fasten the brace. Half-fastened hardware is one of the most common field failures.
If corrosion is part of the risk, the hardware finish matters almost as much as the hardware shape.
What Goes Wrong Most Often

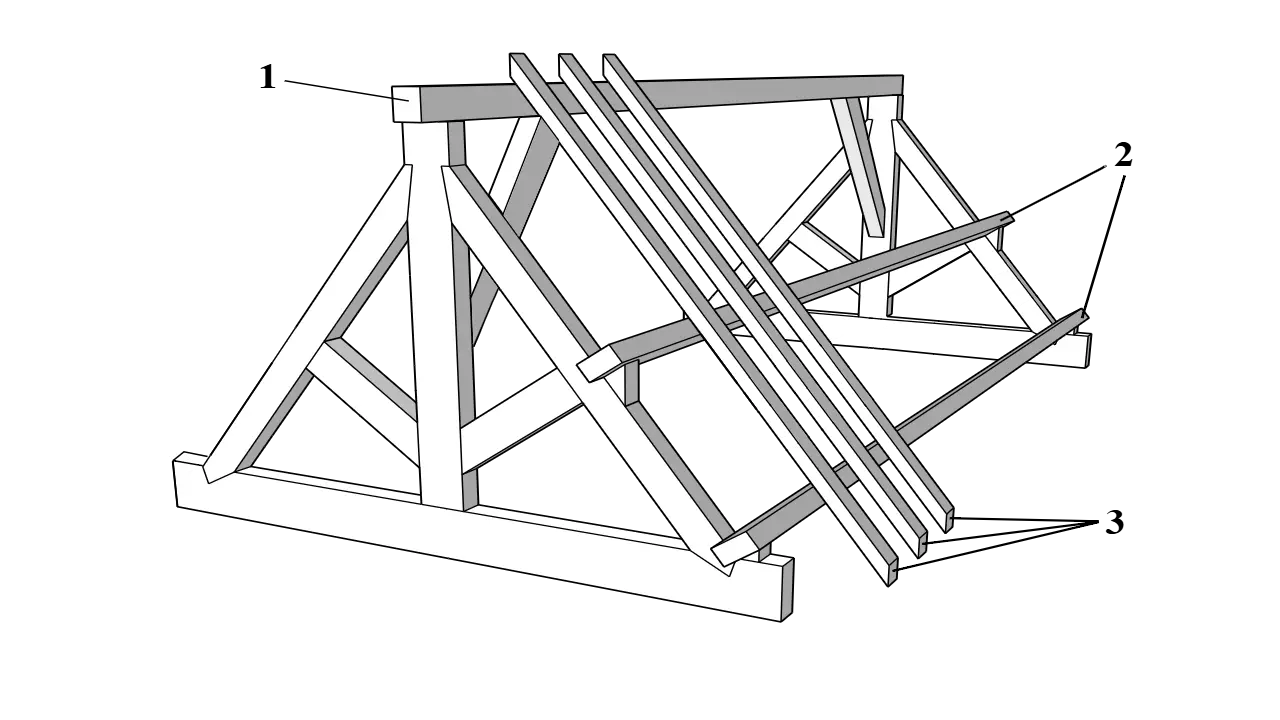

Image by ArchitectureCourses.org. Good hardware cannot rescue a badly aligned or badly planned roof connection.
- Using the wrong brace for the structural problem
- Fastening rated hardware with the wrong nails or screws
- Installing braces on rafters that were already misaligned
- Under-fastening one side of the connection
- Using non-galvanized hardware where moisture and corrosion are predictable
- Expecting a local metal brace to solve a larger roof-design problem
Most of these mistakes do not fail on day one. The roof just keeps moving a little, and the connector never gets a clean chance to do its job.
When a Metal Brace Is Not Enough
Some roofs need a different answer entirely.
If the issue is rafter thrust, missing lower ties, a bad ridge strategy, or larger roof-plane movement, a local connector may help one joint while the roof still fails as a system. That is where you stop adding hardware and start rechecking the framing strategy.
For those bigger conditions, use Roof Tie Beams, Rafter Ties vs. Collar Ties, Gable Braces, and Metal Rafter Braces: Types, Uses, and Installation Tips together, because they answer different parts of the same roof problem.
FAQ
Can I install metal rafter braces on an existing roof?
Often, yes. Retrofit work is one of the main reasons these braces are useful. The surrounding framing still has to be sound enough to receive the hardware.
Are screws better than nails?
Only when the hardware schedule allows them. The right answer is the fastener the connector was designed and rated for.
Do I need to pre-drill?
Not always. It depends on the lumber, the fastener size, and whether the connection is retrofit or new work.
How do I know if the brace is installed correctly?
It should sit tight to the framing, use the correct fasteners in the required holes, and leave the members aligned after fastening.
Do all roofs need metal rafter braces?
No. They help where the connection or local restraint needs improvement. They are not a universal substitute for proper roof design.
