Parametric Design Examples from Real Architecture
Finding nature in parametric work
Parametric design lets you turn the logic of the natural world into buildable form. You take patterns that already solve hard problems in nature and translate them into rules, then let the model generate options you can test. Curves of a river, a leaf’s vein network, a shell’s spiral, a dune’s windward slope. None of this is mood-board fluff. These are field-proven systems for shedding water, moving air, carrying load, and filtering light. Below are real projects where that logic shows up in the work.
Parametric Design Examples Worth Studying Today
Parametric Architecture Concept: How Rules Shape Buildings
Parametric architecture is not freedom. It is not chaos, or blobs, or some software fever dream. It is rules. Clear ones. And the people who forget that get stuck fast.
The myth says you open Rhino, drag a few curves, turn on Grasshopper, and boom — future building. Every student has tried that. What they get instead is two things: a fresh fear of panels and a folder full of dead geometry. Because here’s the truth:
Nothing works inside a parametric model unless you respect the rules that hold it up.
Think back to studio. You could make anything — until a juror asked how it drained, how it stood, how it was built. Reality has rules. Parametric design just puts those rules right in front of you instead of letting you guess them later.
So what is the core concept? Simple:
You write the limits. You define the logic. The computer only executes.
Size, sunlight, wind load, budget, structure, shipping width, panel curvature. You tell the system what can change and what must not. Then you test options faster than you ever could by hand.
Good architects still decide. The software just kills the bad ideas early. See The Core Concept Behind Parametric Architecture
Parametric Design Examples in Architecture
This page is about examples. How the idea became a building. What the team did with tools like Rhino and Grasshopper. What a contractor could actually install. Each project includes a short “What to learn” so you can apply the move on your own jobs.

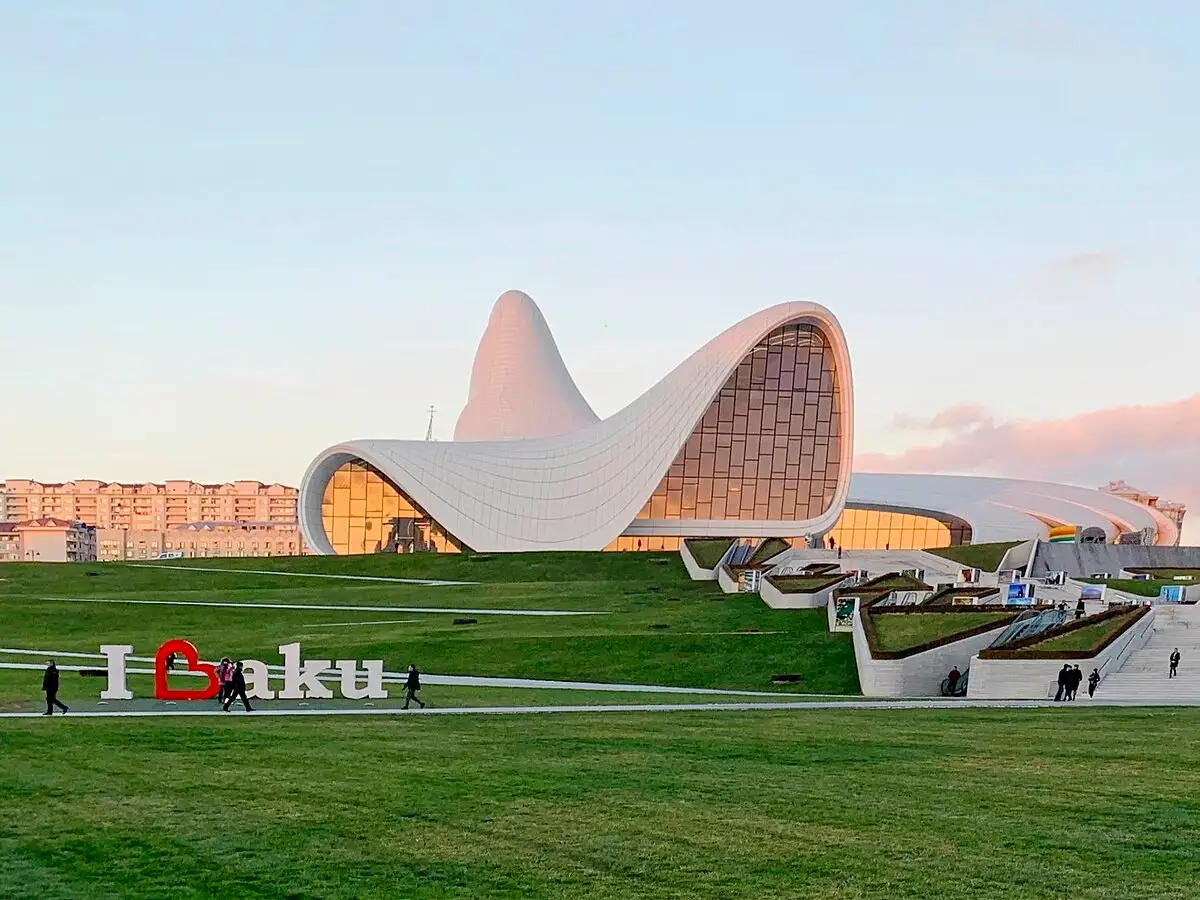

1. Heydar Aliyev Center by Zaha Hadid
Location: Baku, Azerbaijan
Architect: Zaha Hadid
Programs: Rhino with Grasshopper
The idea: A continuous ground-to-roof surface that reads as one gesture. No obvious break where wall becomes roof. The form feels like wind has pressed a fabric over a frame.
How parametric thinking helped: The team set up a surface network that could thicken or relax where spans changed. Panel seams follow principle curvature so cladding breaks are clean and repeatable. The algorithm kept support spacing inside feasible lengths while holding the flow of the geometry.
What to learn: Drive panels and structure from the same rule set. If the grid follows force lines, details stay calm. For your projects, link panel size, support spacing, and minimum radii to one master surface controller.

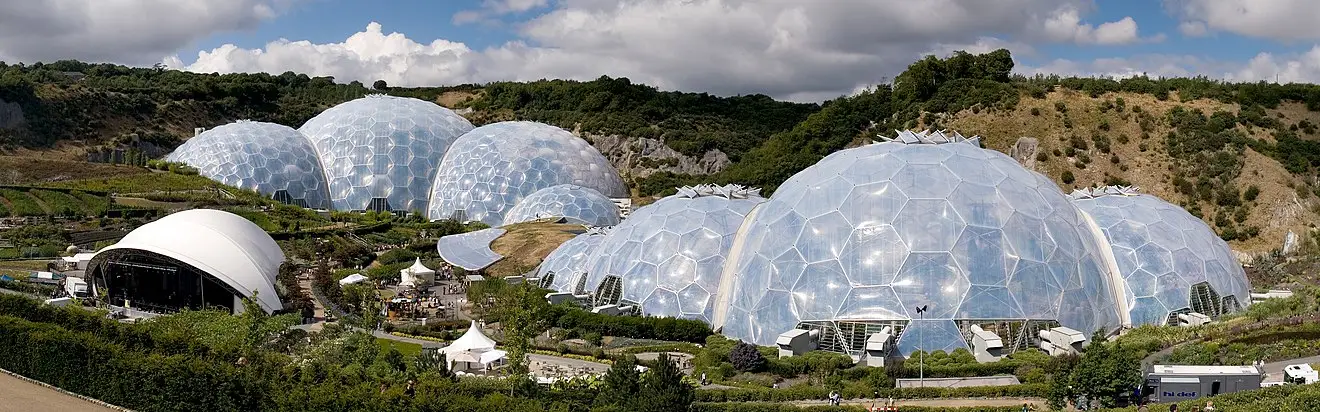

2. Eden Project by Grimshaw
Location: Cornwall, UK
Architect: Grimshaw
Programs: Rhino, scripting for geodesic math
The idea: Lightweight biomes that trap heat, filter light, and span big footprints on a rough site. Nature’s carbon and cellular geometries made the logic obvious.
How parametric thinking helped: A geodesic pattern was optimized for panel repetition, drainage, and snow shedding. Bubble sizes vary to control light and heat while preserving a tight kit of parts. The tool recalculated members and node types as spans changed around boulders and grade shifts.
What to learn: If you want performance and repetition, pick a family of shapes first, then let the model change scale, not type. Keep a strict part catalog so procurement stays sane.

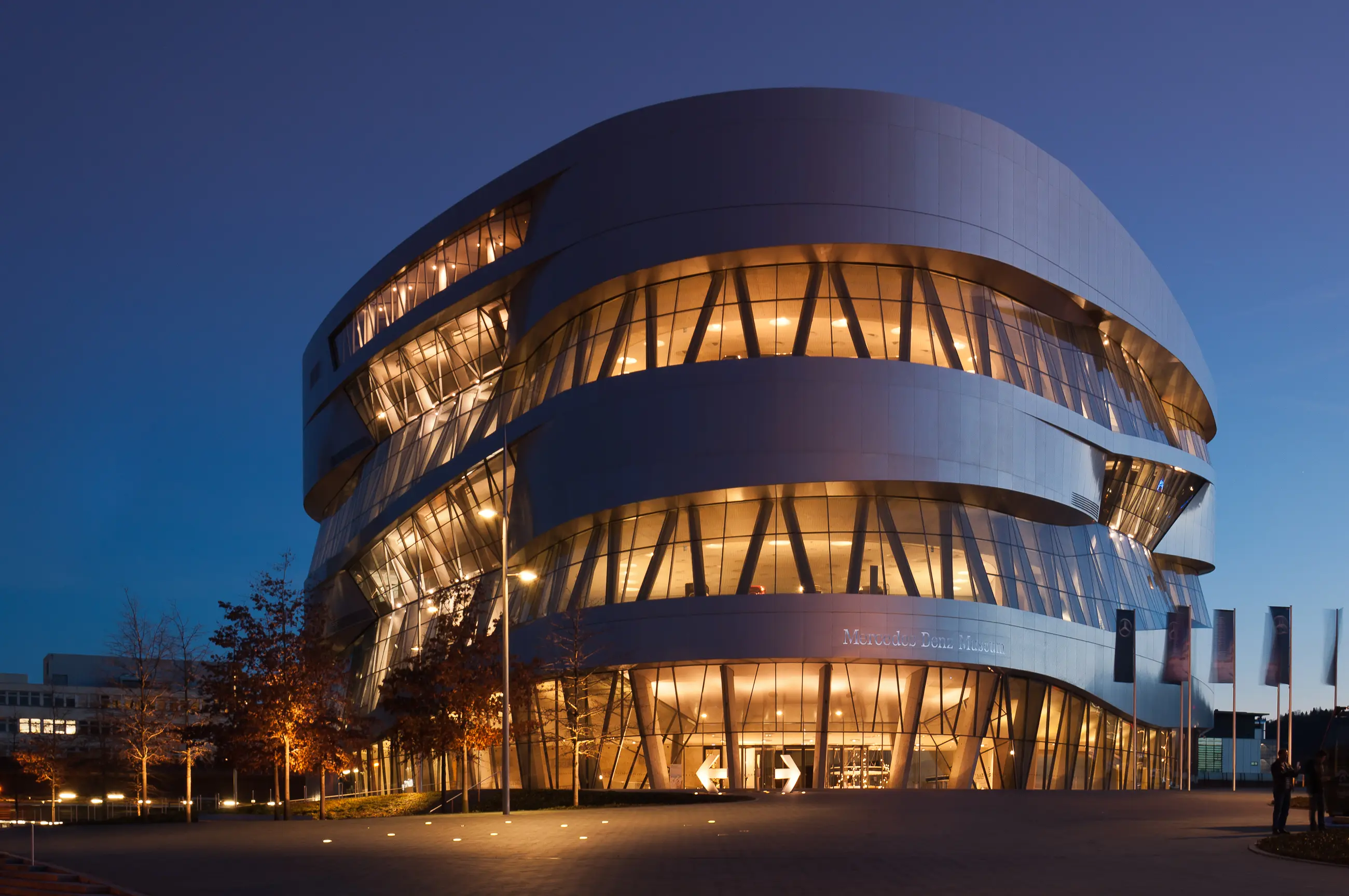

3. Mercedes-Benz Museum by UNStudio
Location: Stuttgart, Germany
Architect: UNStudio
Programs: Rhino, Grasshopper, CAD for detailing
The idea: A continuous visitor loop that threads exhibits without dead ends. Spirals and figure-eight moves keep people flowing.
How parametric thinking helped: Ramp slope, turning radius, and headroom were parameterized. Change one and the others updated. Sightlines were tested in the loop model to avoid pinch points.
What to learn: For museums, malls, and campuses, parametric layout beats manual corridor drafting. Tie clearances, slopes, and turning radii to one set of sliders so accessibility is guaranteed by construction.

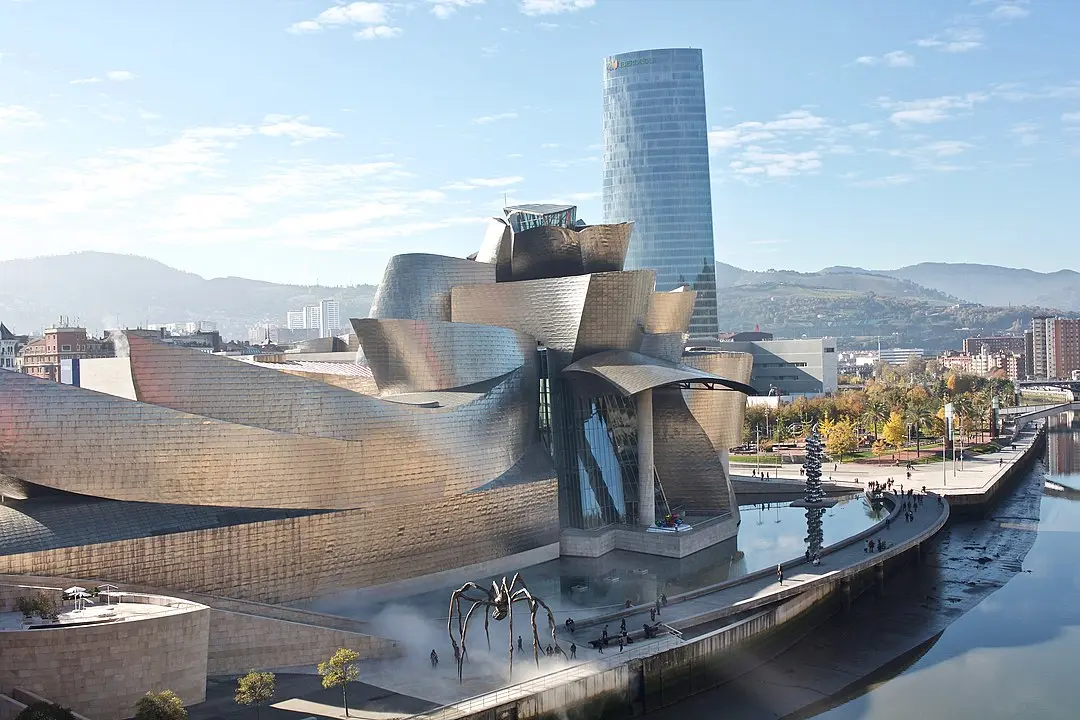

4. Guggenheim Museum Bilbao by Frank Gehry
Location: Bilbao, Spain
Architect: Gehry Partners
Programs: CATIA with surface rationalization
The idea: Irregular volumes that catch light and change by the hour. The titanium skin amplifies every curve.
How parametric thinking helped: Surfaces were rationalized into manufacturable strips with repeatable curvature limits. The system balanced visual freedom with shop constraints and consistent rib spacing.
What to learn: Start wild, then set curvature caps and standardize rib families. Keep a live link between surface and substructure so change never breaks the support grid.

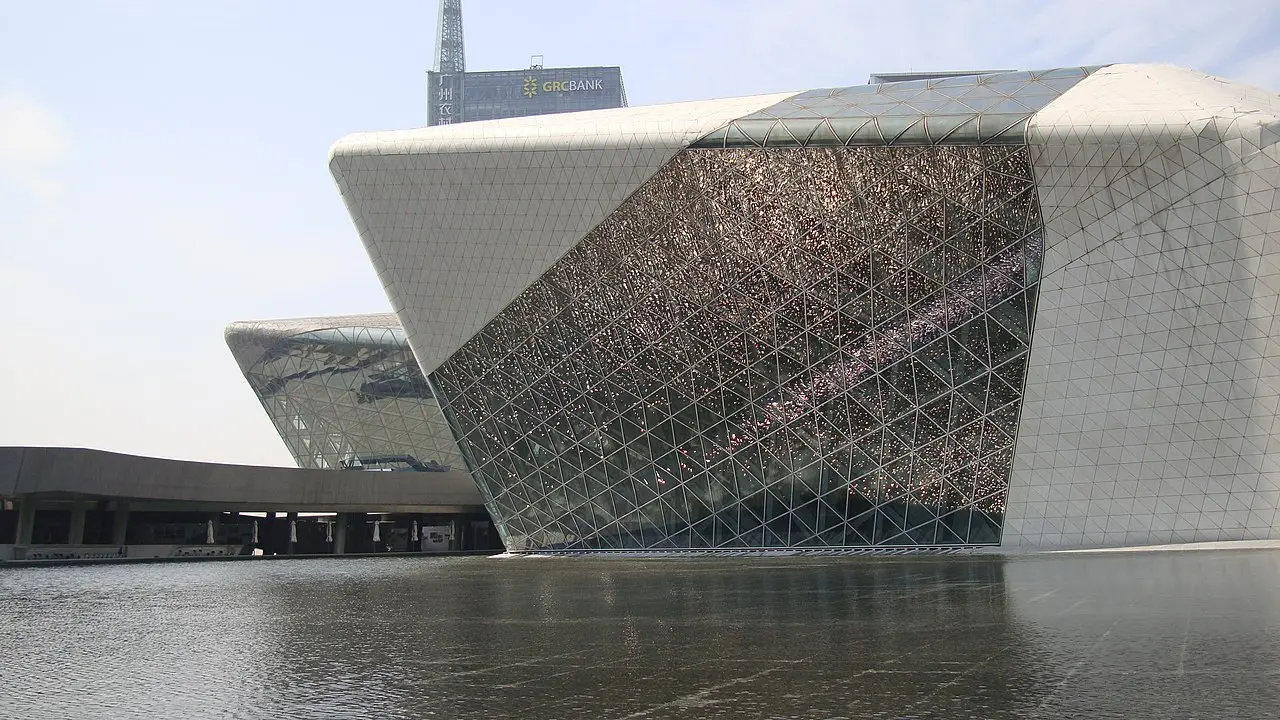

5. Guangzhou Opera House by Zaha Hadid
Location: Guangzhou, China
Architect: Zaha Hadid
Programs: Rhino, Grasshopper
The idea: Two “river stones” shaped by flow, joined by carved public space. Movement reads in plan and section.
How parametric thinking helped: A rule set controlled panel triangulation, aperture size, and support density. Acoustic geometry was tuned while the envelope stayed editable.
What to learn: Link acoustics to geometry early. Let your algorithm drive both envelope panels and interior reflectors from one clean surface definition.

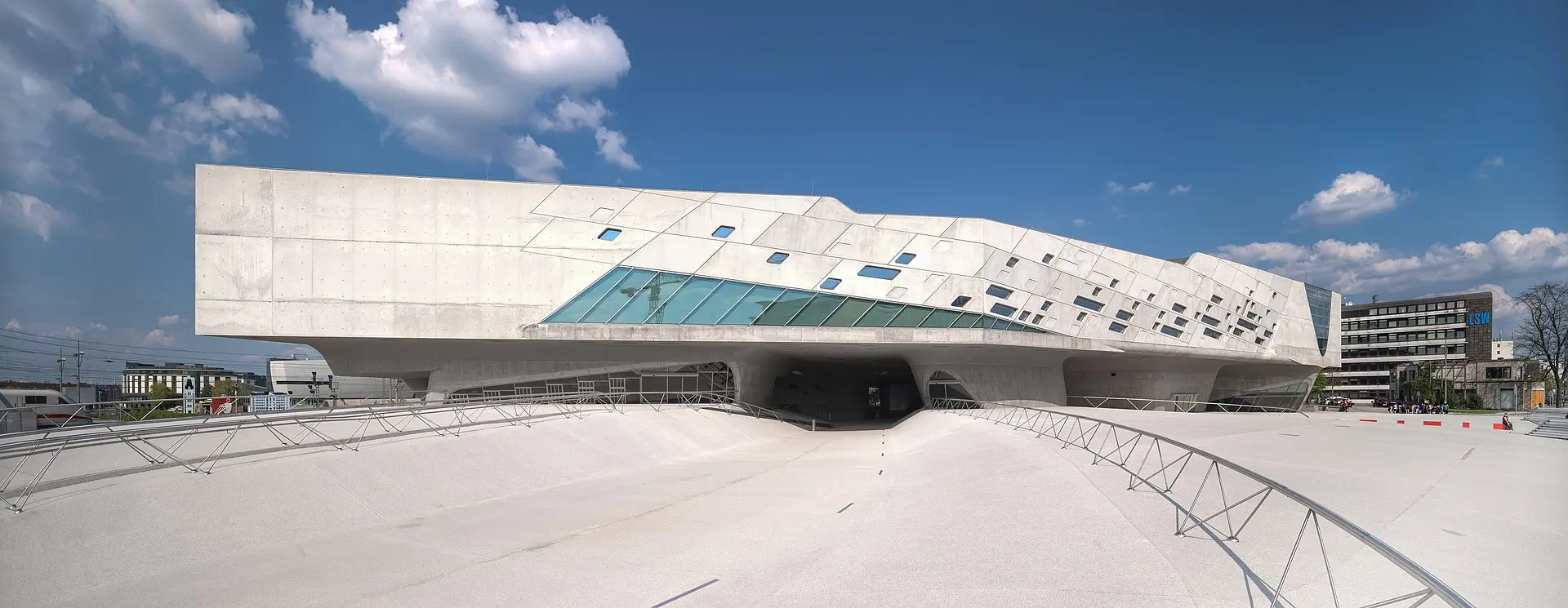

6. Phaeno Science Center by Zaha Hadid
Location: Wolfsburg, Germany
Architect: Zaha Hadid
Programs: Rhino-based workflows
The idea: An undercroft of public space with the building lifted on cones. Structure doubles as experience.
How parametric thinking helped: Conical supports were sized by load paths and headroom requirements. Slab thickness and cone spacing updated together so the undercroft stayed clear while structure stayed honest.
What to learn: When structure makes the place, keep it parametric. Tie column diameter, spacing, and slab spans to a single logic so you can defend every dimension.

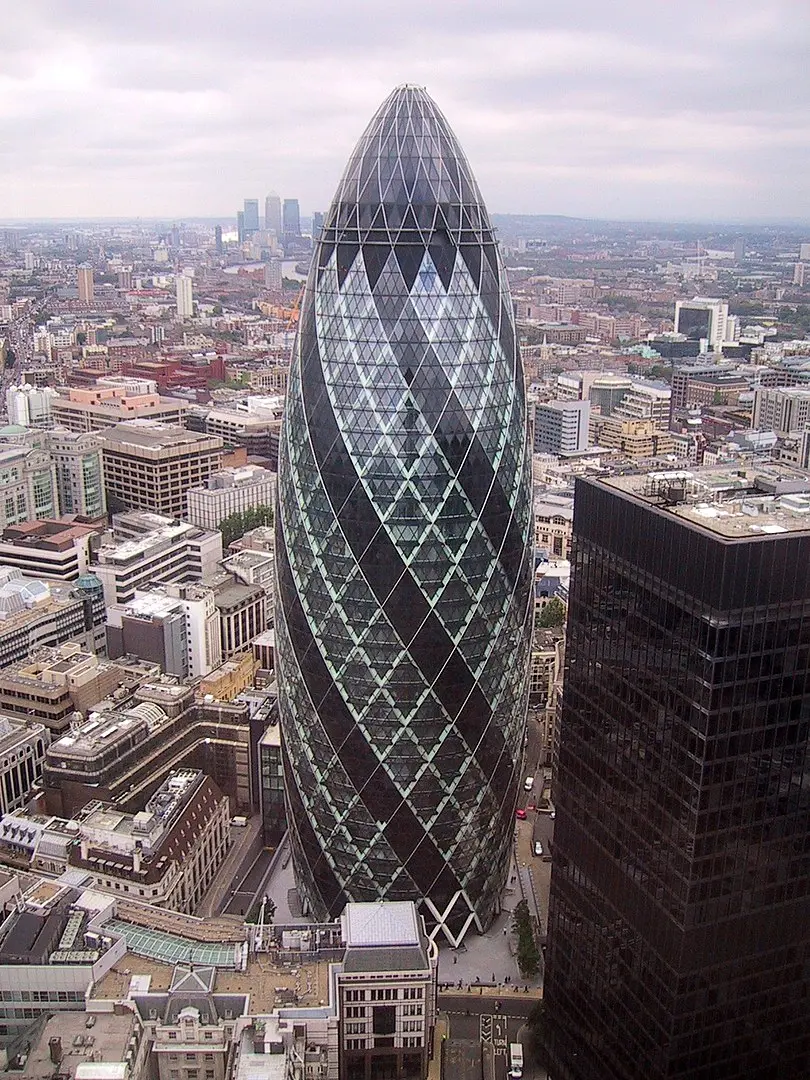

7. 30 St Mary Axe “The Gherkin” by Foster + Partners
Location: London, UK
Architect: Foster + Partners
Programs: CATIA, Rhino
The idea: A tapered, aerodynamic tower that cuts wind load and draws air through spiraling light wells.
How parametric thinking helped: The diagonal diagrid and glazing pattern follow stress and airflow. Segment sizes and angles snap to a small family so fabrication repeats.
What to learn: Pair form and system. If the structure and facade use the same geometry, you save weight, parts, and time. See more on skins in our facade guide.

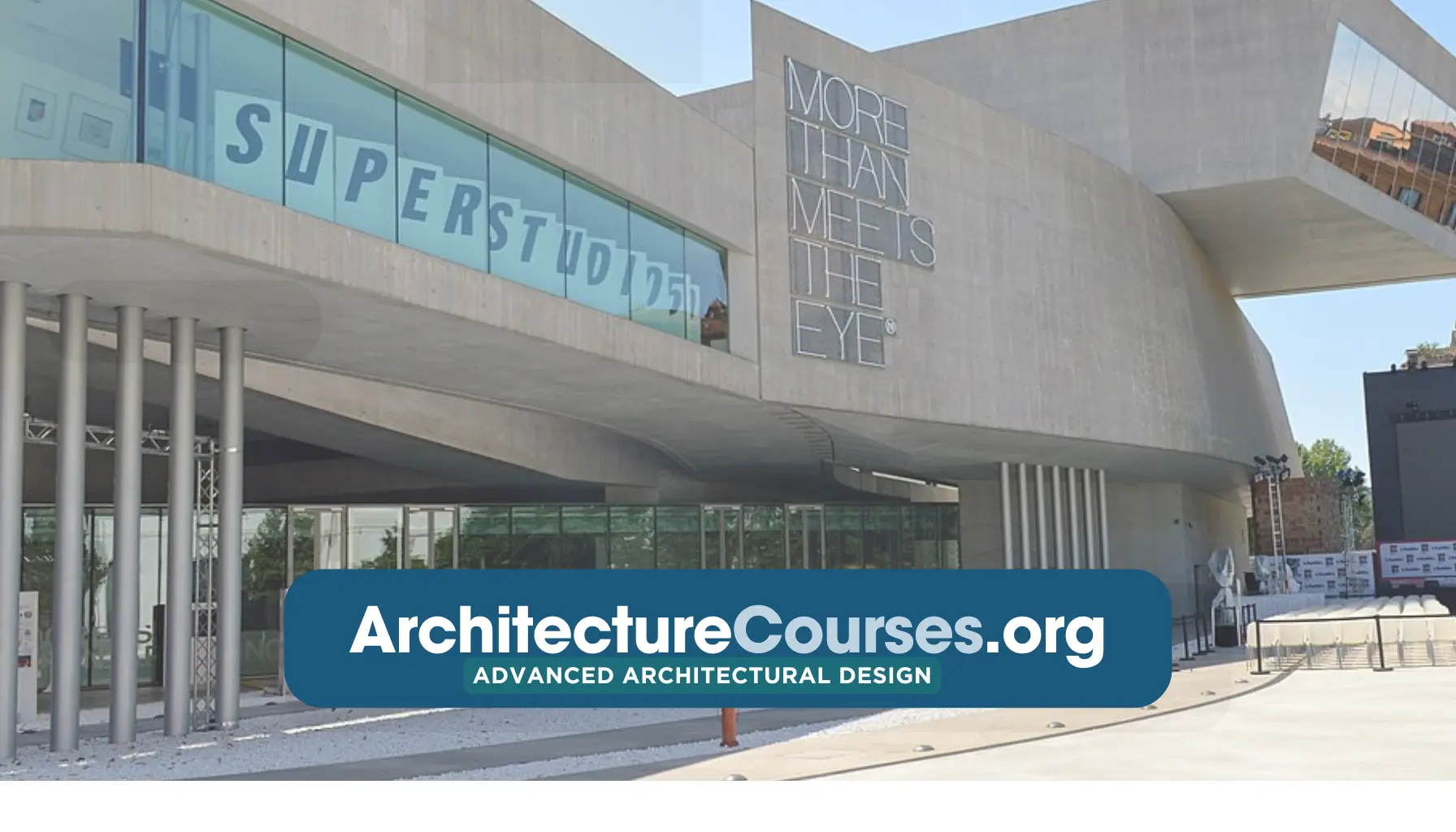

8. MAXXI Museum by Zaha Hadid
Location: Rome, Italy
Architect: Zaha Hadid
Programs: Rhino, Grasshopper
The idea: Interlaced bars and ramps that give visitors choices and long views. Gallery boxes slide past each other to set up light and movement.
How parametric thinking helped: Ramp slope, beam depth, and skylight width were linked. Move one bar and the daylight pattern and structure updated together.
What to learn: On complex circulation, pair human comfort metrics to geometry. Tie slope, rest landings, and headroom into one graph and test the walk before you pour concrete.
More Built Examples With Clear Parametric Moves
9. Al Bahar Towers, Abu Dhabi
Move: A mashrabiya-inspired dynamic screen opens and closes to limit solar gain. The pattern follows sun angles, not fashion. The mechanism repeats in families so maintenance is predictable.
Lesson: If a feature moves, keep part families short and serviceable. Parametric control is only useful if facilities can handle it after handover.
10. One Central Park, Sydney
Move: A green facade and a heliostat that bounces light into shaded courtyards. Planting density and species mix were driven by orientation and wind. Mirror angles were solved by rule, not by eye.
Lesson: Treat landscape as a parametric system. Irrigation, soil depth, and wind exposure belong in the graph beside glass and steel.
11. Beijing National Stadium “Bird’s Nest”
Move: The tangle is not random. Member sizes and spacing follow load and access rules. Gaps admit light and air while preserving structural redundancy.
Lesson: When a pattern looks chaotic, prove it is not. Encode limits for clash, maintenance routes, and fire egress. Let the system explore only inside those fences.
12. Harbin Opera House
Move: Snow country shell with flowing ridges that shed drift. Panel seams track slope so ice does not trap at horizontal breaks. The lobby uses the same lines to pull people through.
Lesson: Climate writes rules. Put snow, wind, and freeze-thaw tolerances in your inputs next to spans and budget.
Parametric Design Examples in Interior Work
1. Morpheus Hotel by Zaha Hadid
Move: A free-form structural exoskeleton frames voids and routes people through the heart of the hotel. Interior bridges and openings follow the same parametric grid so wayfinding is natural.
What to learn: Align structure, circulation, and view corridors in one graph. If your skeleton and lobby share a rule set, guests do not get lost.
2. Apple Store, Istanbul
Move: A lean glass box and light well tuned for gentle daylight. Panel sizes, frit density, and joints were driven by glare and reflection targets rather than guesswork.
What to learn: Retail lives or dies on light. Build a daylight model with glare caps and let panel specs fall out of the numbers. If you need a primer, see our process overview.
Nature-Driven Patterns You Can Reuse
These are the simple natural systems that translate well into rules. Use them as seeds for your own projects.
- Branching networks: water, ducts, cable trays. Keep angles shallow, splits balanced, and diameters sized by flow.
- Hex and geodesic fields: roofs and skins that want strength and repetition. Control module size by span and delivery limits.
- Spirals and tapes: ramps, stairs, and towers that want gentle turns and efficient footprint.
- Voronoi fields: perforations that need variable apertures for light, air, or acoustics. Lock minimums so fasteners and edges do not fail.
How to Read These Examples and Apply Them
Do not copy shapes. Copy the logic. Each project here runs a tight loop: set targets, generate options, test against real metrics, and lock a kit of parts. Your work should do the same. A few direct takeaways you can use next week:
- Pick the kit first. Decide panels, fins, or members you can source and ship. Snap the geometry to those families from day one.
- Limit sliders. Give your team five inputs that matter. Keep the rest read-only so quality does not drift.
- Tag costs early. Count unique parts and install time inside the graph. A good option that loses the bid is not a good option.
- Show performance clearly. Put glare, EUI, and deflection maps side by side. Kill pretty schemes that fail the numbers.
Short Field Notes for Each Example
Heydar Aliyev Center
Key parametric move: Surface continuity with panel seams following geometry lines. Structure and cladding stay in sync as the form changes.
Use on your job: If you have a lobby roof that must feel like one piece, align the seam grid to curvature and cap panel sizes to the factory limit.
Eden Project
Key parametric move: Geodesic cells sized by light and span. Members repeat to keep cost down while climate stays under control.
Use on your job: For a greenhouse or atrium, tie pane size to daylight and thermal targets, then lock to off-the-shelf glass where possible.
Mercedes-Benz Museum
Key parametric move: Continuous circulation loop with slopes and clearances governed by rule. No guesswork on ramp geometry.
Use on your job: Any complex route needs a live slope and headroom checker. Build it once, reuse it forever.
Guggenheim Bilbao
Key parametric move: Surface rationalization that honors shop limits. Titanium strips repeat and install fast.
Use on your job: If your form is free, your substructure cannot be. Pick standard ribs. Let the surface follow them, not the other way around.
Guangzhou Opera House
Key parametric move: Triangulated envelope with acoustic tuning. Panels and interior reflectors share the base geometry.
Use on your job: For halls, couple envelope shape to acoustic metrics in the graph from day one.
Phaeno
Key parametric move: Lifted plate on conical supports sized by load and clearance. Public space stays clean below.
Use on your job: When you elevate a slab, tie cone spacing and diameter to forklift paths, fire lanes, and real deflection limits.
30 St Mary Axe
Key parametric move: Diagrid and spiral light wells driven by wind and daylight. Repeating nodes cut complexity.
Use on your job: On any tall building, let wind studies steer taper and hole placement. Lock node families early.
MAXXI
Key parametric move: Interlaced bars with ramps. Daylight, structure, and circulation share constraints.
Use on your job: Multi-bar projects work better when ramps, beams, and skylights are one system, not three files.
Hands-On Mini-Patterns You Can Prototype
Try these small studies to build muscle memory. They mirror the examples above and slot into real work fast.
- Sun-tuned fin kit: Write a graph that rotates fins by hour and season, then snaps angles into five families. Export counts and lengths. Check glare at eye level. This is the backbone of any smart facade.
- Rationalized shell: Start with a smooth surface, cap curvature, then lay ribs at constant spacing. Set a rule for splice distance and crane lifts. Have the graph warn you when a piece is too long to ship.
- Branching walkway: Use a tree generator with minimum radius rules and landing intervals. Make slope a hard limit. Export plan, sections, and quantities from the same file.
- Voronoi perforations for an acoustic panel: Aperture size follows frequency targets. Lock minimum edge to keep screws honest. Output a short list of panel types.
Parametric Examples Outside Buildings
Parametric logic scales down well. A few quick hits that mirror big-project rules:
- Shading canopies for a school: Rotate modules by class schedule and desk glare limits. Keep three module sizes so a local fabricator can deliver quickly.
- Footbridge over a creek: Span and deck width set member depth and spacing. Snap to stock steel lengths. Include a deflection cap so handrails do not shake.
- Plaza drainage: Paver elevations and inlet spacing follow rainfall and ponding caps. Keep a checker that flags hidden low spots before you bid.
Common Pitfalls You See In The Field
- Image with no build path. If you cannot list part families, fasteners, and a lift plan, the geometry is a picture. Fix it in the model, not on site.
- Endless sliders. More controls rarely mean better outcomes. Decide which five drive performance. Freeze the rest.
- Too many uniques. Group into families. Factories and crews like repeats. Budgets like them more.
- No feedback loop. If glare, EUI, deflection, and cost are not measured in the graph, you are guessing.
FAQ
What is the value of examples when learning parametric design?
Examples show how rules become parts you can order and install. You learn which inputs matter and how to test options quickly. The projects above make that chain visible.
How do I bring this into my office without slowing teams down?
Start with a small library. One sun-tuned fin kit. One rationalized shell. One branching route tool. Wrap them with simple inputs. Train once. Reuse weekly.
Which tools should I learn first?
Get comfortable with Rhino and Grasshopper, then pick up Revit families for documentation. If you need a quick overview of options, see our software rundown.
How do I keep cost under control on a complex facade?
Limit panel types, keep fasteners standard, and tie part counts to your model outputs. Read our starter notes on smart exterior systems for practical checks.
Can this logic help interiors and small objects?
Yes. The same rules drive chair families, retail displays, stair runs, and acoustic screens. The scale changes. The process does not.
Closing Notes
These examples work because the teams wrote clear rules, tested options, and locked a kit of parts that shops could make. If you want similar results, put performance targets, part families, and site logistics into the model on day one. Then let the system do what it does best. If you need a simple overview of the steps, start with our short parametric process guide and build from there.
