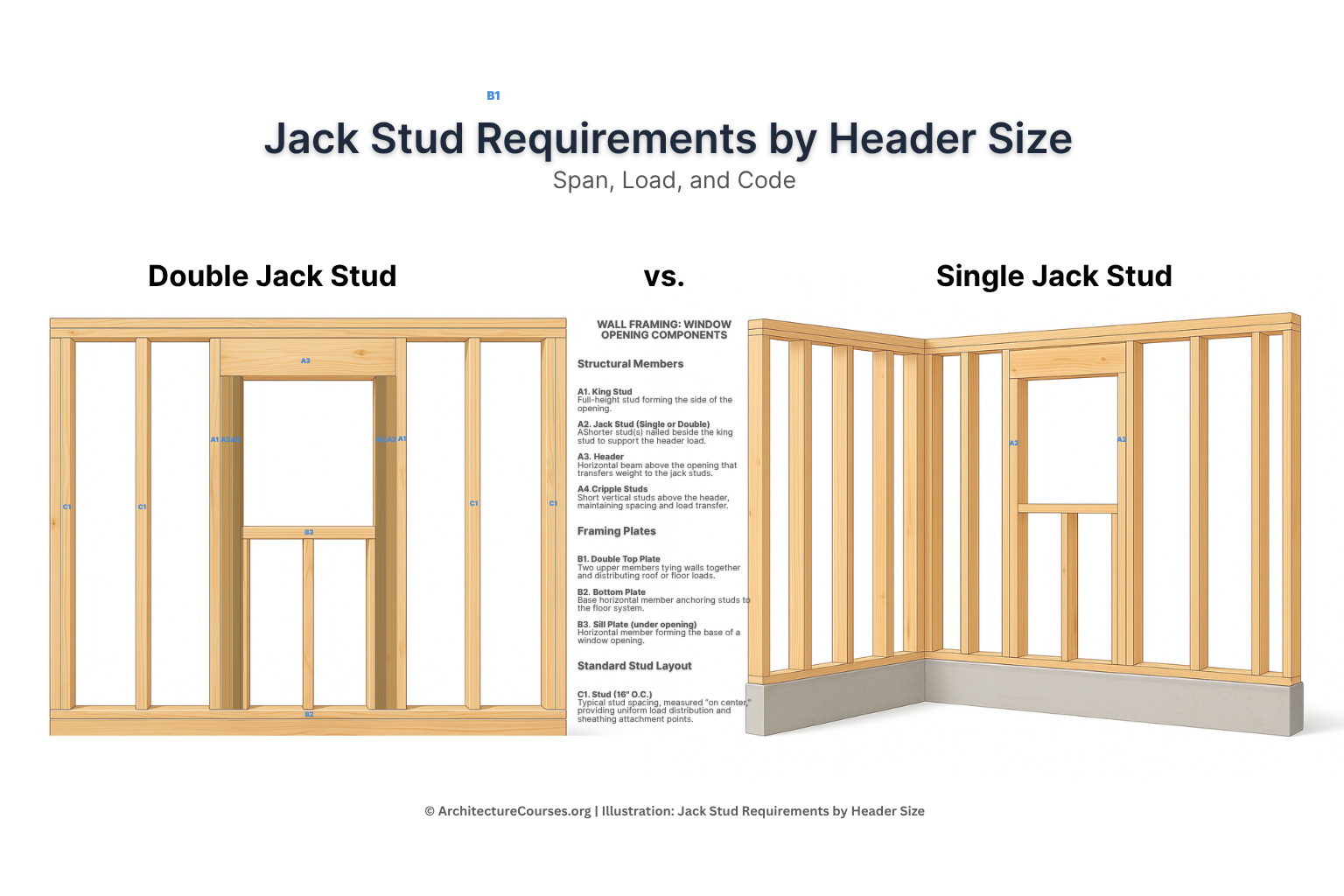

Illustration by ArchitectureCourses.org. Jack stud count, header support, and load path at a framed opening.
Header Support: How Many Jack Studs Do You Need?
Short answer. One jack each side is common on small openings with light loads. Two each side is the safer starting point on wider openings, patio doors, garage doors, thick LVLs, or anything carrying more than a simple roof load. Size the header first. Then give it enough bearing to carry the load cleanly to the floor.
That is the field rule. Simple. Safe. Usually cheaper than the callback.
Start With the Header Load
Span. Load. Header size. That is what decides jack count.
The wider the opening and the heavier the load above it, the more support the header wants under each end. Jacks do that job. They are not decoration. They are the short posts holding the beam up.
Ask one thing first: what does this header carry? Roof only. Roof plus ceiling joists. A second floor. A point load from a girder. Snow country or light snow. Once that is clear, size the header. Then decide the jacks.
If you want the wall anatomy first, start with Wall Framing Basics. For the straight sequence of laying out and standing walls, use How to Frame a Wall. If the bigger problem is opening parts and placement, Jack Studs Framing is the wider guide.
The Rule of Thumb That Saves Jobs
Small window. One jack each side. Standard door. One each side is common. Big glass. Wide patio door. Garage opening. Double jacks each side.
That is not engineering. It is field judgment. It keeps a lot of ordinary openings out of trouble before the trim ever goes on.
| Opening | What I Start With | What Pushes It Heavier |
|---|---|---|
| 2-6 to 3-0 window | One jack each side | heavier roof load, wider header, second story |
| 3-0 entry door | One jack each side | thick engineered header, hinge-side wear, floor load above |
| 5-0 to 6-0 patio door | Two jacks each side | snow load, second story, large glass units |
| 8-0 garage door | Two jacks each side | LVL stack, tight bearing, narrow side walls |
| 10-foot header | Two each side minimum | floor load above, heavy snow, engineered member |
Field sanity check: if the header takes two people to lift, it probably wants two jacks under each end. If it takes three people, stop pretending it is a light opening.
Code Minimums vs a Quiet Frame
Code sets the floor. Engineers set the numbers. The site sets the truth.
A lot of openings will pass with one jack each side if the header is sized right. Fine. But drywall cracks do not care that you met minimums. Patio doors do not care either. Wide glass likes a quiet frame. Garage openings with skinny side walls like a quiet frame too.
The extra jack costs little. The callback costs more. That is why a lot of framers double the jacks before the opening ever proves it needed them.
If you are comparing header behavior across larger houses, Single-Story vs Two-Story Framing is worth a look. Loads change faster than people think once the floor count changes.
Common Openings and Where I Start
2-6 to 3-0 window. One jack each side is common when the header is carrying a light roof-only load.
3-0 entry door. One jack each side is common on a simple one-story wall. If the wall is carrying more than that, or the header gets beefy, I stop treating it like a cheap opening.
5-0 to 6-0 patio door. Two jacks each side. Glass wants the frame quiet. This is not the place to save one stud.
8-0 garage door. Two jacks each side as the baseline in wood framing. Sometimes more support is needed when the member is thick, the bearing is tight, or the side wall is doing a lot of lateral work too.
Anything over 8 feet clear. Think engineered header, confirmed bearing, and at least double jacks as the starting posture.
If your next question is the opening itself rather than the jack count, go straight to Window Rough Openings or Window Header Framing.
Header First. Jacks Second.
Pick the header size with real information. Span tables. Engineer. Manufacturer sheet. Do not guess.
A header that is too small will deflect. Extra jacks do not fix that. A header that is right will sit quiet. Then the jacks give it clean bearing to the floor. Header depth. Bearing length. Load path. That trio is what keeps doors from rubbing and trim from opening later.
This is the mistake that burns people: they think jack studs decide everything. They do not. The header is still the beam. The jack is just the support under its end.
How to Set Jacks So They Carry
Cut them clean. Keep them tight to the king stud. Do not leave a lazy gap and call it close enough.
Crown the pair the same way. Nail them evenly. Keep the header flat on the jacks. If you need a shim, use structural shim stock. Not cedar scraps. Not whatever fell out of the cutoff pile.
Plumb both faces, not one. The opening should be square to itself before you ever ask the finish carpenter to trust it.
MUST READ
Complete Book of Framing
Clean diagrams for headers, jacks, bearing, and field layout.
When I Double the Jacks Without Arguing
Big glass. Long spans. LVLs. Point loads above. Second floor. Snow belt. Narrow garage side walls. Any two of those and I am not trying to save the extra stud.
This is especially true on patio doors and garage openings. Those openings do not just carry load. They also show movement fast. The trim tells on you. The door tells on you. The corners tell on you.
If you are cutting a new opening into an existing wall, use How to Frame a New Window in an Existing Wall before you start pulling studs. Existing walls are where the “one more jack won’t matter” logic usually goes bad.
King Stud and Jack Stud Work as a Pair

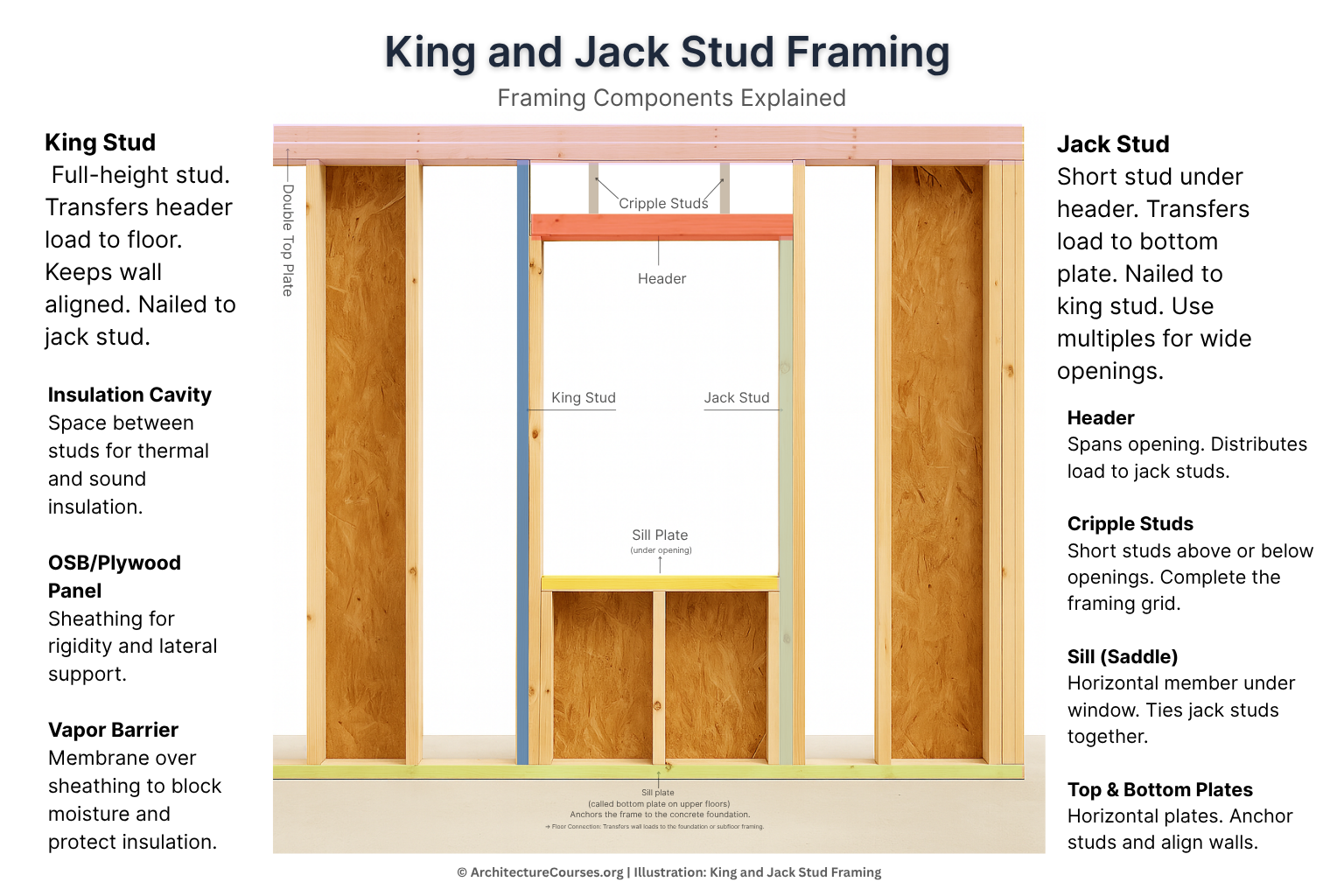

Illustration by ArchitectureCourses.org. King studs, jack studs, header, sill, and load path at a framed opening.
The king holds the wall line and keeps the opening tied into the rest of the frame. The jack is the column under the header. Different jobs. Same opening.
Do not swap them in your head. Do not notch the king beside a wide opening because a wire needed a shortcut. Keep the pair clean so the opening behaves like part of the wall, not like a weak interruption in it.
If you want the plain-language version of the parts before you get lost in jack count, King and Jack Stud Framing is the better overview.
RECOMMENDED TOOL
Heavy-duty carpenter’s square
Cheap insurance for square layout and clean jack cuts.
Garage Doors and Narrow Side Walls
A lot of garage openings fail at the corners, not because the header was wildly wrong, but because the side wall is narrow and doing too much. On those jobs, kings and jacks stop being just opening parts. They start acting like part of the lateral story too.
That is why two jacks each side is the default posture on a lot of 8-0 and bigger garage openings. Keep the sheathing edges tight. Keep the nailing honest. Do not let a big opening fool you into treating the last few inches of side wall like filler.
Old Houses and Crooked Walls
Old houses lie. Floors roll. Plaster hides bow. Studs wander.
Do not set new jacks to the old mistake beside them. Snap a clean reference line. True the king. Set the header level. Build the new opening square to itself, not to the crooked wall you opened up.
If the floor below feels soft, land the load over something real. Joist. Beam. Post. That matters more than the opening looking good for the first week.
Built-Up Headers Need Real Bearing
Two-ply LVL. Three-ply LVL. Built-up SPF with a spacer. Whatever the member is, it wants real bearing.
Do not leave a sliver under the end of a heavy header and call it good. Wood compresses under load. Small bad decisions show up later as small permanent movement. That is the kind of movement people notice in trim and blame on “settling.”
Give the header enough meat to sit on. That is half the game.
What the Extra Jack Costs
Not much. One more stud. A few nails. A few more minutes.
Compare that to a return trip, trim reset, sticky door, repaint, and the conversation you now have to have because the opening moved. The math is not hard.
On wide glass and garage openings, the extra jack is cheap insurance.
Metal Studs Use the Same Logic
Light-gauge steel framing uses trimmer studs under the header. Same structural idea. Different material.
Wide openings still get doubled support. The difference is the clip, the screw schedule, the section, and the manufacturer detail. Do not carry over wood-framing shortcuts and expect steel to forgive them.
Basements and Moisture-Prone Walls
In basements, think one step past the opening. Moisture shows up later.
Use treated bottom plates where the wall belongs on concrete. Keep the load path clean. Keep the opening from becoming the wet corner that starts the trouble.
This is not a reason to change jack count by itself. It is a reason to stop pretending the wall is living in the same conditions as a dry first-floor partition.
Where People Mess This Up
They size the header from habit. They put one skinny jack under a heavy member. They leave bad bearing. They cut the jack short and patch it. They notch the king for a pipe. They rely on trim to hide movement.
Do the opposite. Clean bearing. Straight load path. Tight pairs. Good cuts. The opening will behave.
A Fast Field Sequence
- Confirm the load above.
- Size the header from a span table or an engineer.
- Decide the jack count from the real opening, not the last job.
- Lay out kings first, then fit jacks tight to them.
- Cut the jacks true and keep the pair flush.
- Set the header flat with full bearing.
- Nail the pair evenly and check plumb again.
- Lock the opening in before sheathing hides the mistakes.
How Many Jack Studs for a 10-Foot Header?
A 10-foot span is not a light opening. It wants a real answer.
- Roof load only: two jacks per side is the common starting point.
- Roof plus floor load: two or three per side depending on the header and the plan.
- Heavy snow or tall wall: three per side is common enough that you should stop pretending one will do.
You do not eyeball this. Header size and jack count go together. A big engineered member over a 10-foot opening does not want one thin jack under each end and a promise.
If the real question is headers more than jacks, use Window Header Framing. If the issue is the full wall assembly around the opening, step back to House Framing 101.
FAQ
Do I ever need more than two jacks per side?
Yes, on thick engineered members, heavier loads, long spans, or when the plan calls for more bearing than a simple double jack gives you.
Can I use one jack and one king on a 6-0 opening if the header is big?
Maybe in some conditions. That does not make it the quiet or durable choice. Wide openings are where a second jack starts paying for itself.
Do metal studs change the rule?
No. The structural idea is the same. The header still needs real support under each end.
How tight should the header sit on the jacks?
Tight. Full contact. No daylight. No lazy shim pile.
Do I nail the jacks to the kings or leave a gap?
Nail them together. Keep the faces flush so the pair works like a unit.
What about old floors that bounce?
Add the second jack sooner, not later. Then make sure the load lands over something that can carry it.
Should I glue jacks to kings?
Not required. Some framers do it on big openings. The important part is still fit, bearing, and nailing.
Is there a chart that tells me jack count?
Most charts size headers, not jack count by itself. The safer field habit is still the one people keep coming back to: one each side for small openings, two each side for wide or heavy ones, then go stronger when the job clearly asks for it.
Read This Next
If you are still laying out the wall, start with Wall Framing Basics. If the opening is already cut and you need the parts around it, go to King and Jack Stud Framing. If the whole build is changing because of the opening, step back to House Framing 101.
