A builder’s guide to framing jack studs. Covers size, layout, fastening, and how they work with king studs and headers.
There aren’t many parts in framing that look as simple as a jack stud. It’s just a shortened stud under a header. But screw it up and the whole opening becomes weak. That’s why you see sagging drywall, cracked jambs, or trim gaps above windows and doors someone swore were “plumb and perfect.”
I’ve seen pros get lazy with these. Especially in remodels. They leave out a jack or use the wrong size. The header starts to sag. The drywall cracks. The inspector makes you tear it open and fix it.
This guide keeps it clean. What a jack stud does. When you need one. When you need two. What size. How to nail it. How it ties into the load path. And where inspectors look first. No hype. Just the truth and the field moves.

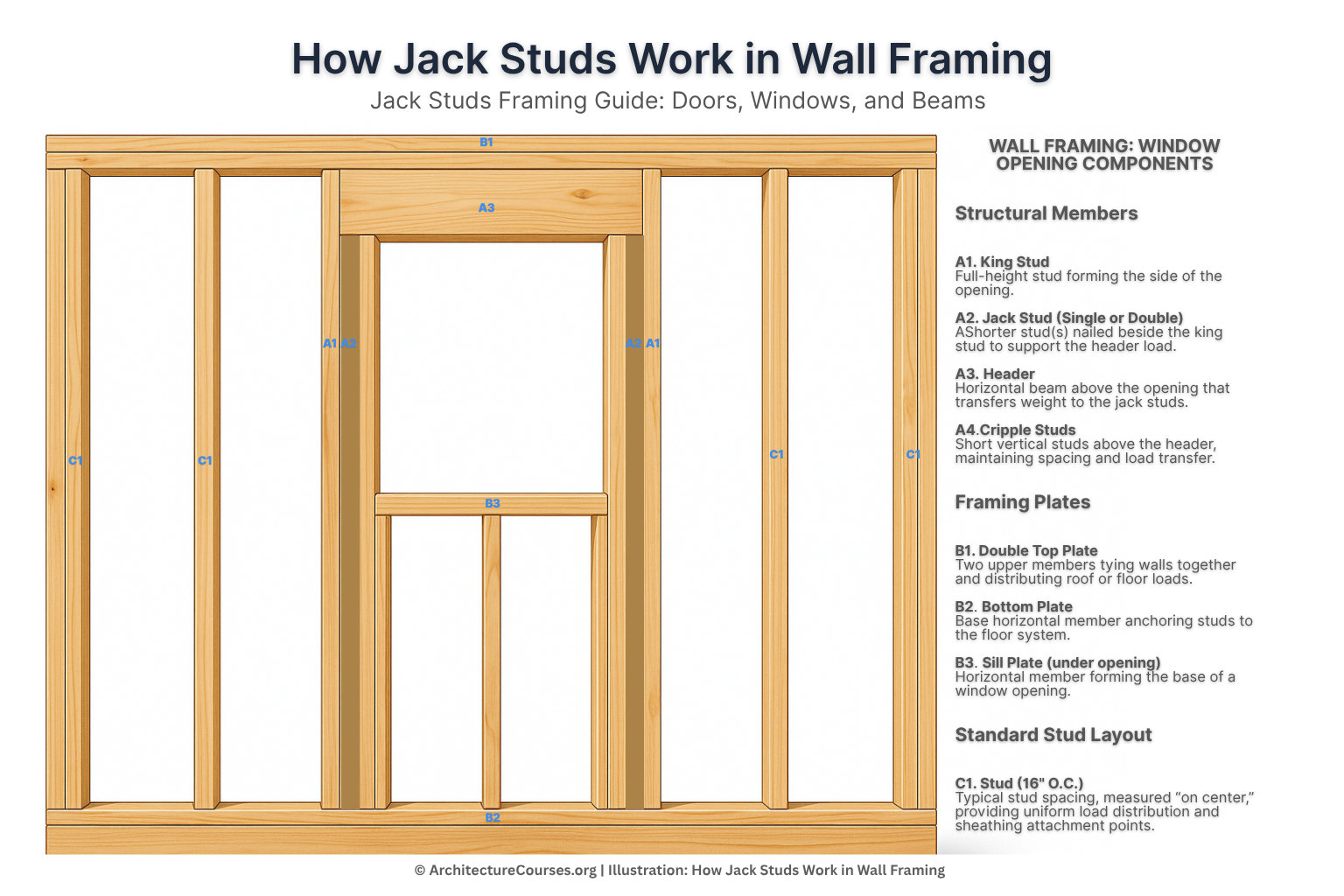

How Jack Studs Work in Wall Framing
A jack stud supports the header over a window or door. The header catches load above the opening. The jack carries that load down into the king stud, then into the floor or foundation. Skip the jack and the load has nowhere good to go.
If you’re not solid on how wall frames work as a system, take ten minutes and skim House Framing 101. Openings are just interruptions in that bigger load path. The jack stud makes the path whole again.
FIELD PICK
IRWIN Speed Square – set headers, check cuts fast. Solid metal. Doesn’t bend in the truck.
Jack Stud vs King Stud vs Cripple
King stud runs full height. Jack stud runs from bottom plate to header. Cripples fill the gaps above or below. It’s not complicated. What matters is knowing their roles.
- King stud holds everything together
- Jack stud transfers load
- Cripple stud holds drywall or window sill, not structural load
One good diagram of this is in the guide on framing window openings. If you need a reminder of how the stack sits, go review that later.
How Many Jack Studs You Need
One jack per side for small spans. Two jacks per side for bigger spans or heavier loads. That’s the rule of thumb framers follow in most of the U.S.
But code matters. Snow states ask more from headers. Some coastal zones do too because of wind loads. If the header gets deeper or heavier, the jacks need to take more weight. That’s when you double up.
Simple guide:
- 3 to 4 foot opening: single jack each side
- 5 to 6 foot opening (like sliding window): double jacks
- 8 to 16 foot garage or patio door: double or triple jacks on engineered spec
Header framing explained goes deeper on how span pushes header size and jack count. Good place to go if you’re sketching a big opening.
Double Jack Stud vs Single Jack Stud: When to Use Each
Here’s where framers argue. For a regular 3-0 door on a non-bearing wall, a single jack can do the job. But many builders still double the jacks on each side, even when they’re not required. Keeps the opening stiff. Makes trim hang better. Handles uplift and shrink better.
When to use single jacks:
- Interior non-bearing walls
- Small bathroom windows
- Closet openings
When to use double jacks:
- Exterior doors
- Patio sliders and French doors
- Anything over 4 feet wide
- Under LVL or steel beams
FIELD PICK
Estwing 22oz Framing Hammer – if you still hand-nail, this one stays tight after years. Takes a beating. Worth it.
Garage Doors and Big Openings
Garage doors don’t mess around. That’s a large hole in a load-bearing wall. You don’t guess here. Double jacks minimum. Triple sometimes. The header is usually an LVL or steel. It gets heavy. You don’t want that hanging on one stud.
If you want to see how a full garage header layout looks, skim garage door framing after this. There’s a small detail you don’t want to miss: lap those top plates and carry your studs down to your slab or foundation, not into thin air.
Jack Studs Under Beam Loads
Once you start hanging LVL or steel beams across an opening, code treats the jacks like posts. You need full bearing. Full fastening. Crippled jacks won’t help you here.
Most plans will call out “double jack studs supporting 3-ply LVL” or something close. Don’t cut corners on beams. Jack studs under beams get solid nails, good alignment, tight bearings, and no knots at mid-length.
If you’re swapping in new beams during remodels, keep this in mind while reading the section on load path in wood framing. Same rules apply even when the wall is old.
Jack Stud Codes and Inspector Checks
IRC code doesn’t spell out “one jack good, two jacks better.” It tells you header sizing and bearing load. That’s where the jack count comes from. Inspectors look for:
- Correct span for header
- Continuous load path from header to slab or joist
- Full-height king beside the jack
- Proper fastening (not toe-nailed junk)
- Jack ends cut clean and tight
Nail the header to the jacks with three 16d nails minimum. Sink them tight and straight. Leave a sloppy nail or a split stud, and they’ll call you on it.
Jack Studs in Remodels
Cutting in a new window or door in an old wall means you’re taking out studs. Don’t cheat and leave the header floating. If you don’t land it on a jack, you’re asking for sag.
One trick in remodels: use a jack stud pair screwed together with structural screws. This lets you “sandwich” the header instead of destroying the plaster on both sides.
You’ll see more on this method in framing window openings and retrofits. Clean method when you don’t want the whole house dusty.
FIELD PICK
Milwaukee Circular Saw 7-1/4" – clean cuts through studs and headers. Real power. No chatter.
Common Jack Stud Mistakes
- Using twisted studs as jacks – header sags
- Cutting jacks too short – no full contact to header
- Missing a jack on one side – header rotates
- Using nails too short – jack pulls away with time
- Not checking crown direction – opening twists
Fixes cost more than doing it right the first time. A bad jack install behind drywall costs around $400 to $900 to open up, repair, and close. Nobody wants that call later.
Jack Studs and Load Paths
The load path is everything. Roof to wall. Wall to floor. Floor to foundation. Jack studs are just a piece of that. But they’re the piece that lets you interrupt a wall without breaking the load.
If you’ve never mapped a full load path before, read wood frame construction and trace the route. You’ll never see an opening the same way again.
FAQ
Do jack studs always need a king stud beside them?
Yes. The king stiffens the whole assembly and anchors the jack and header into the wall lines.
Can I use screws instead of nails for jack studs?
Code allows structural screws if rated. Nails still preferred for framing because they absorb shock.
Can I use one jack stud on a 6-foot window?
Not recommended. Double jacks or engineered column. Check plans.
Can a cripple stud act like a jack?
No. Cripples don’t take full vertical load.
Can I skip jacks in metal framing?
Metal framing still uses jacks, but often with boxed or track openings instead of wood pairs.
How tall do jack studs go in balloon framing?
In balloon frames, the stud is full height but the jack is still cut to match the header height inside.
Keep Learning
Get the full breakdown on openings, plates, layout, and shear in wall framing basics. If you’re ready to step up to full house-level design, compare layouts in single vs two-story framing. It’ll show you where jacks change and where they don’t.
FIELD PICK
Bosch Laser Distance Measurer – fast checks when laying out openings solo. Saves time.
Frame clean. Use straight studs. Don’t skip the jacks. Inspectors always look there first.
