From the street, an exterior wall looks like one simple thing: siding, trim, done. Easy to assume it’s “just cladding.” Then you open one up on site and realize it’s a stack of control layers trying to behave like a system—shed water, stop air leaks, and stay warm enough that the inside layers don’t sweat and rot.
Most “exterior wall problems” aren’t really siding problems anyway, even though that’s what people blame first. The usual culprits are boring (and expensive): a broken drainage plane, leaky air-barrier details, or insulation placed where it can’t actually control condensation.
- What you’ll learn here: how exterior walls actually work (control layers), which assemblies survive real weather, and what to prioritize when you’re building or retrofitting.
- How to use this hub: start with the wall layers overview, then jump to the topic that matches your build (new wall, re-siding, adding continuous insulation, fixing drafts/leaks).
Start here
(the “how walls work” part)
A durable wall is basically the same idea every time: structure + four control layers, preferably continuous and preferably detailed like you actually expect water and air to show up. Building science folks often describe this as “perfect wall” logic: water, air, vapor, and thermal control layers arranged so the wall can drain and dry.
If you need a quick refresher on sheathing types and why some walls rack better than others, see exterior wall sheathing basics.

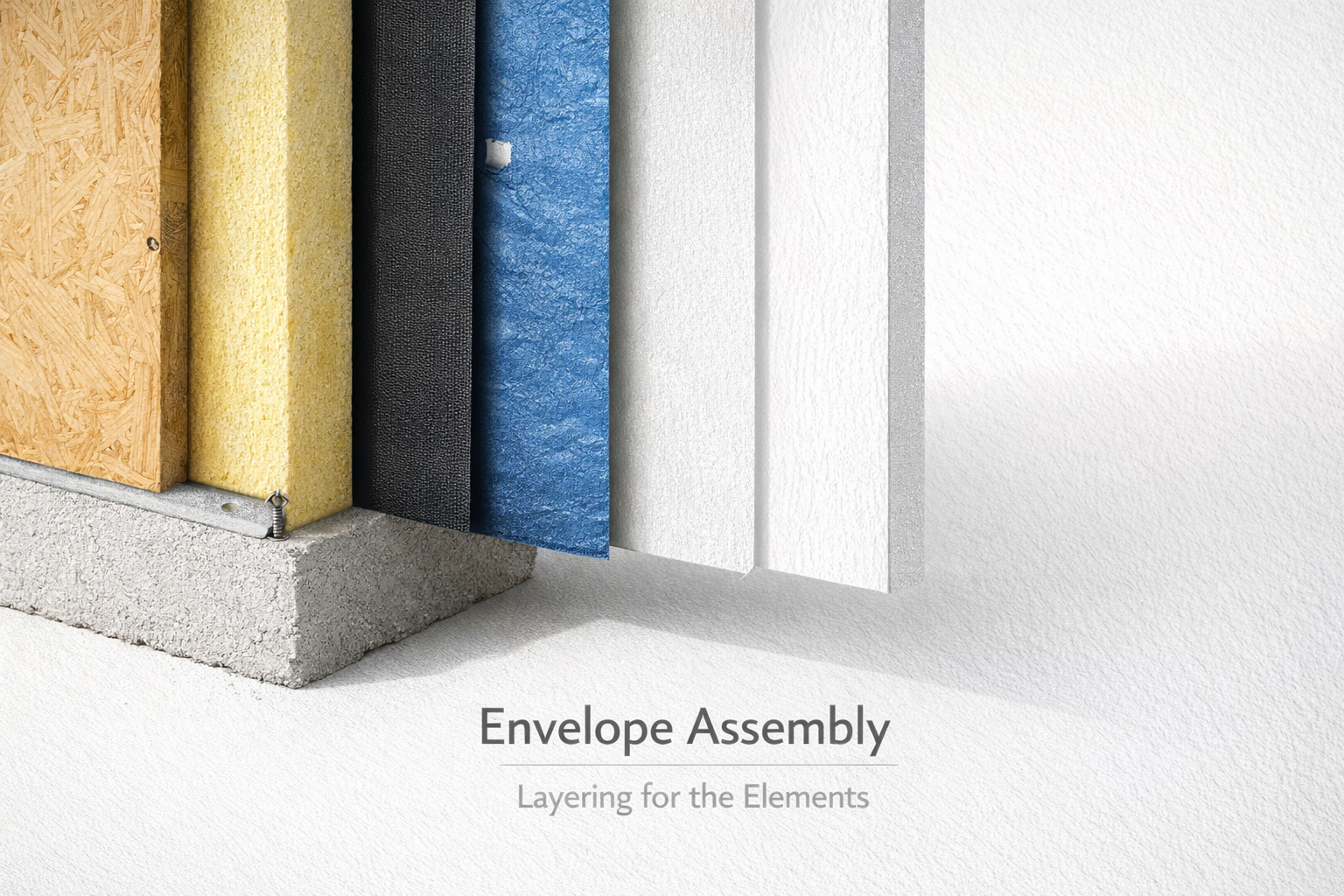

Exterior wall layers
(what each layer is supposed to do)
- Cladding: siding, stucco, brick veneer. It sheds most rain, not all rain.
- Drainage plane / WRB: your “second line” that manages the water that gets behind cladding.
- Air barrier: stops air leaks (and the moisture that rides with air). Often the biggest performance swing.
- Insulation: cavity, exterior continuous insulation, or both. Placement matters more than the label on the foam.
- Sheathing + structure: holds the building together and gives you a substrate to tape/flash/seal.
Want the plain list of common materials before you spec anything? Use this building materials reference.
Hub map
(pick what matches your project)
1) New build wall assemblies
- 2x6 exterior walls: when they’re worth it, and when they’re just “more cavity to mess up” (thermal bridges, wiring, missed air sealing).
- Advanced framing corners: corner framing options that reduce thermal bridging without creating drywall nightmares.
- Rainscreen basics: why “a little gap” behind siding prevents paint peel, cupping, and trapped moisture.
2) Re-siding and retrofits
- Adding continuous insulation: the clean way to move dew point outward and reduce condensation risk.
- WRB swaps: housewrap vs felt vs integrated sheathing membranes (what you gain, what can backfire).
- Window and door flashing: where water actually enters, and why “it looked sealed” means nothing in a storm.
3) Air sealing and comfort fixes
- Drafty walls: why the fix is usually air leakage, not “more insulation.”
- Band/rim transitions: the worst leakage line in most houses, and how to detail it so it stays tight.
- Top-of-wall and roof tie-ins: where the air barrier continuity usually breaks.
Continuous insulation
(why it’s showing up everywhere now)
Continuous insulation (CI) is the blunt instrument that solves a lot of real wall problems: it reduces thermal bridging, keeps the sheathing warmer, and lowers condensation risk. It also forces you to get serious about detailing (fasteners, furring, window bucks, flashing).
WRB and drainage
(the part people skip because it’s “not visible”)
The WRB is not a vibe. It’s the actual drainage plane when (not if) water gets behind cladding. The big mistakes are predictable: reverse laps, missing kick-out flashing, taped seams that don’t work with the system, and “sealed” penetrations that weren’t primed or rolled.
If you’re using integrated sheathing systems, read the manufacturer’s tape rules and follow them like they’re structural. Most of the failures happen in the boring details: surface prep, pressure, temperature, and what you do at corners and penetrations.
Code and compliance
(the stuff that stops projects mid-inspection)
- Foam plastics and fire protection: foam can trigger thermal barrier / ignition barrier requirements depending on location and use. Don’t assume “it’s fine behind siding.”
- Energy code: local code (often based on IECC/ASHRAE paths) can force minimum R-values, CI ratios, and better air sealing performance than older houses were built for.
- Water management: inspectors won’t always catch bad flashing, but the building will. Treat drainage detailing as code-level important even when it’s not policed hard.
Exterior wall buying guide
(what people actually buy, and why)
Air sealing kit
(tape + goo + the boring tools that make it actually stick)
- Tape (your primary air-seal layer at seams): pick a tape that matches your substrate and temperature window.
- Sealant (for transitions and “not tape-friendly” spots): a compatible sealant is what keeps corners from becoming leaks.
- Roller: without pressure, most tapes underperform.
- Primer (only if the tape system calls for it): dusty OSB and cold sheathing is where primer earns its keep.
FIELD PICK
3M 8067 All-Weather Flashing Tape (field-proven for rough openings + cold-weather installs)
RECOMMENDED TOOL
3M tape roller (cheap tool that prevents expensive callbacks)
WRB + flashing kit
(drainage plane + window/door detailing)
- WRB: housewrap (mechanically fastened) or self-adhered membrane (more expensive, but fewer fastener penetrations).
- Flashing tape: use a system that bonds to your WRB and your window/door materials.
- Sill pan strategy: formed pan or a site-built pan done clean (this is where leaks get trapped).
- Compatible sealant: for terminations, corners, and weird transitions.
FIELD PICK
Tyvek StraightFlash (common “default” for straight runs and rough-opening work)
SHOP NOTE
Wrap caps + nails (cheap insurance against torn WRB and loose wrap in wind)
Rainscreen kit
(drainage + drying gap behind cladding)
- Furring strips: the simple rainscreen most people actually build (fast, cheap, reliable).
- Fasteners rated for exterior use: corrosion resistance matters more than people think.
- Top/bottom vent + insect screen: keep bugs out but keep air moving.
IF YOU BUY ONE THING
A cladding-compatible flashing/tape roll (where furring, window trim, and WRB meet)
Note: rainscreen mats and vent strips exist on Amazon, but listings change constantly. If you paste the exact Amazon URLs you want to use, I’ll drop them in as short labeled inserts right under this section (and keep them matched to the “rainscreen intent”).
CI retrofit kit
(continuous insulation outside the sheathing)
- Exterior insulation: foam type depends on thickness, climate, and drying strategy.
- Long structural screws: don’t guess—this is load path for cladding/furring.
- Furring: creates the fastening plane for siding over thick foam.
- Window buck materials: bucks, tapes, and corner details are where CI jobs win or lose.
RECOMMENDED TOOL
Long structural screws (a common category pick for attaching through assemblies)
FAQ
(the questions that keep coming up)
Do I need a rainscreen gap behind siding?
If you want the wall to dry reliably, yes in most climates and with most claddings. Cladding leaks. A drainage/vent space makes that leak boring instead of destructive.
Is housewrap better than felt?
Depends on the product and the detailing. The WRB only works if laps and flashing are right, and if you integrate openings properly. Treat it as a system, not a sheet.
Can I just add more cavity insulation instead of exterior continuous insulation?
You can, but you don’t solve thermal bridging through studs, and you can still end up with cold sheathing that sees condensation. CI is often the cleaner fix when comfort and durability are the goal.
What’s the fastest way to screw up an exterior wall?
Breaking continuity: air barrier stops at the rim, WRB isn’t lapped into flashing, tape isn’t rolled, penetrations aren’t detailed, and “good enough” becomes a leak path.
Next
- 2x6 exterior walls: when they outperform 2x4 and when they don’t (air sealing, CI, cost).
- Exterior wall corner framing: corner options that insulate cleanly and still drywall easily.
- Continuous insulation retrofit: step-by-step sequencing that keeps windows and flashing sane.
- Rainscreen for siding: simple versions for DIY and more robust versions for high exposure.
