Yield Point in Steel: What Every Engineer Must Know

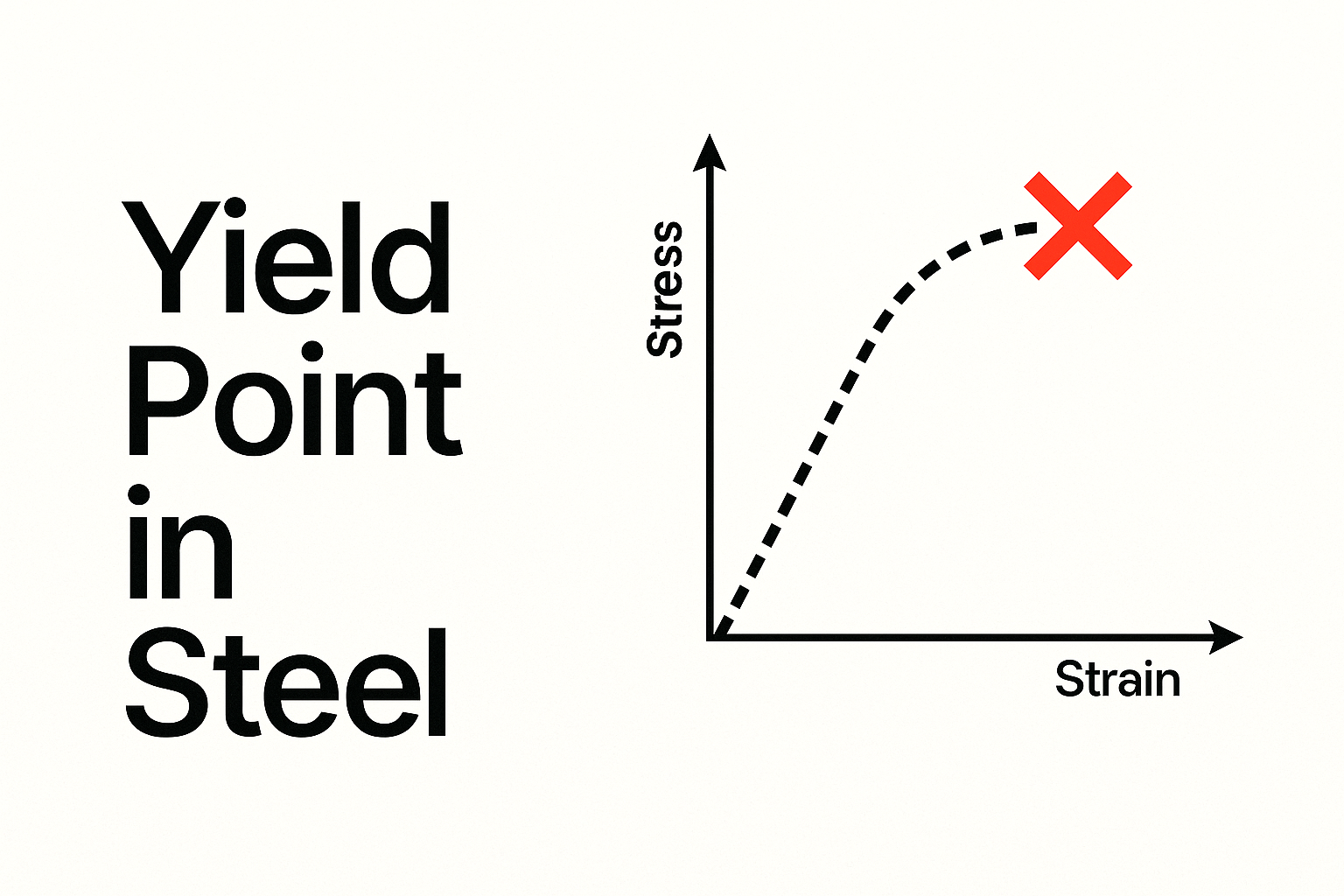

Diagram showing the yield point in steel stress-strain curve.

Yield Points in Architecture and Engineering: Where Materials Fail and Why It Matters

Every material has a limit. Cross it, and failure begins. Understanding yield points isn’t theory—it’s the line between buildings that stand and those that crack, bend, or collapse.

INTRO

Why Yield Points Matter

Understanding Yield Stress in Building Materials

Every material breaks—eventually. But most don’t fail all at once. First, they yield.

The yield point is the warning shot. It’s the moment when steel bends and doesn’t bounce back. When concrete starts cracking. When wood begins to splinter. It’s the quiet line between safe and damaged.

Architects and engineers build everything—bridges, homes, towers—with this line in mind. Because once you go past it, even if nothing collapses right away, the structure is no longer fully safe.

Real-world examples:

  • A beam that sagged half an inch after a heavy snow? That’s yield.

  • A parking garage ramp with a permanent crack across the base? It hit yield stress and kept going.

Yield points tell you how much stress a material can take before it deforms permanently. It’s not just academic—it decides:

  • How tall your building can go

  • How far a beam can span

  • How much load a slab can handle

  • How safe a structure remains after a storm or a crowd

If you don’t understand yield, you’re gambling with every load calculation.
If you do? You can push materials to their limit—without crossing it.

What Is a Yield Point?

Steel Yield Point in Architecture and Construction

Understand steel yield strength, yield stress, and why architects and engineers must design below failure thresholds.

Yield point = the limit before structural failure. Master it to avoid cracks, buckling, and disaster in your buildings.

The yield point is the moment when a material stops behaving elastically and starts to deform permanently. Before this point, if you remove the load, the material snaps back. After this point, it doesn’t. It bends, stretches, or cracks—and it stays that way.

In real terms? It’s the boundary between safe and dangerous. You pass it, and structure starts to fail.

● Pull steel too hard? It stretches and never returns.

● Push concrete past its compression limit? It cracks and crumbles.

● Bend a wooden beam too far? It snaps or stays warped.

This isn’t theoretical. Every beam, column, or slab has a specific stress value—measured in MPa or psi—where yield happens. Engineers calculate it. Builders must respect it. Because crossing that line is when buildings shift, floors sag, and failures begin.

Steel and Yield Stress: What You Need to Know

Steel Yield Point Explained

Steel is tough—but even steel has a limit. The yield point of steel is the stress level where it stops returning to its original shape after being stretched or bent.

Up to that point, steel acts elastically. Push it, and it springs back. Go further—and it yields. It might not break yet, but it’s permanently changed. And that’s where real-world problems start.

Real Numbers

  • Mild structural steel (like ASTM A36):
    Yield point ≈ 250 MPa (36,000 psi)

  • High-strength steel:
    Yield point ≈ 400–550 MPa (58,000–80,000 psi)

These numbers aren’t optional. They're written into building codes, structural design charts, and every engineer’s load calculations. If a steel beam is expected to carry 10,000 pounds, its yield point needs to be at least 1.5 to 2x higher to stay safe under surprises—like a snowstorm or crowded dance floor.

What Happens at Yield?

Let’s say a steel beam is loaded to 220 MPa. It's fine. Unload it—it springs back.

But if you load it to 270 MPa? It yields. The beam stretches a bit, and when you unload it, it stays stretched. That deformation doesn’t go away.

Keep going past the yield point, and eventually you hit the ultimate tensile strength (UTS)—where it snaps.

Yield is not the same as failure.
But it’s the red line you never want to cross in structural design.

See also: Understanding Architectural Structural Support: Load, Stress, and Stability

Concrete, Wood, Glass: Yield Behavior Compared

Where Materials Fail: Yield Points Explained

Every material has its own way of giving up. Steel bends. Wood cracks. Concrete snaps. Glass? It just shatters.

Here’s how each material behaves when stress pushes it to the edge:

● Concrete: Strong Until It Isn’t

Concrete loves compression. Stack it, load it vertically, and it’ll take tons of pressure without blinking. But pull on it—or bend it the wrong way—and it gives up fast.

  • Yield behavior:
    Concrete doesn’t yield like steel. It holds firm... then fractures.
    Once cracking starts, the strength drops fast.

  • What helps:
    Reinforcement. Steel bars (rebar) give concrete the tensile strength it lacks. Together, they handle both compression and tension.

  • Watch for:
    Spider-web cracks, edge spalling, corner shear — signs the yield zone has been breached.

● Wood: Flexible but Finite

Wood has a natural ability to bend. It yields slowly, showing signs well before failure—if you know what to look for.

  • Yield behavior:
    Gradual deformation under load. Depending on grain direction, it may split, crush, or creep.

  • What helps:
    Engineered woods (like glulam or LVL) reduce flaws and improve strength predictability.

  • Watch for:
    Fiber crushing, splitting at bolt holes, long-term sag in loaded beams (creep = delayed yield).

● Glass: No Warning, No Mercy

Unlike steel or wood, glass doesn’t yield—it fractures. Instantly. And dangerously.

  • Yield behavior:
    Technically, glass doesn’t have a yield point in the traditional sense. It’s either intact or it’s broken.

  • What helps:
    Tempered or laminated glass holds together longer and breaks more safely.

  • Watch for:
    Microfractures, edge chips, thermal stress zones — small damage can trigger full failure under load.

Side-by-Side Breakdown

Material Good At Weak Under Yield Type Failure Style
Concrete Compression Tension, shear Brittle, abrupt Cracking, spalling
Wood Flex + tension Creep, splitting Gradual, visible Splits, sags
Glass Surface loads Tension, impact None (brittle) Sudden shatter

Bottom line:
Steel may get the spotlight, but every material has its own breaking point. Smart design means knowing how—and when—they fail.

Elastic vs. Plastic Deformation

Elastic vs. Plastic: When Bending Turns to Breaking

Every material can bend—but only to a point. Go too far, and it won’t snap back.

Understanding the difference between elastic and plastic deformation is how engineers know when a structure is safe... and when it's seconds from failure.

● Elastic Deformation: Safe, Temporary Flex

This is the good kind of bending.

  • The material stretches or compresses, but returns to its original shape once the load is gone.

  • No permanent damage.

  • Think of it as your building taking a deep breath and exhaling.

Real example:
A steel beam supporting a party floor might dip slightly when it’s full of people—but once the crowd leaves, it straightens again. That’s elastic.

Key facts:

  • Happens before the yield point.

  • Follows Hooke’s Law (stress and strain are proportional).

  • Structure still 100% sound.

● Plastic Deformation: Damage You Can’t Undo

This is where trouble starts.

  • The material bends past the yield point and won’t bounce back.

  • It looks fine for a moment—but it’s weaker now.

  • If the load stays or increases, failure is next.

Real example:
A concrete column hit by a forklift may not collapse—but the hairline cracks and shift in shape mean it’s no longer structurally reliable.

Watch for:

  • Sagging beams

  • Cracked floors

  • Warped frames

How to Tell the Difference

Bend a paperclip:

  • Bend it a little → it returns (elastic)

  • Bend it more → it stays bent (plastic)

  • Keep going → it breaks

Same idea. Steel, wood, concrete—all follow this pattern. Only with real buildings, lives are at stake if you miss the signs.

Why It Matters in Real Design

● Elastic = normal working stress
● Plastic = permanent damage
● Beyond plastic = structural failure

Smart architects and engineers always design so structures stay well within the elastic zone, with room to move but not to break.

Yield Strength vs. Ultimate Strength: What’s the Real Difference?

Real-World Examples of Yield Stress Failure

Not all stress breaks a material — some just bend it. That’s the line between yield strength and ultimate strength, and knowing that line can save your structure.

Yield Strength (also called yield stress) is the point where a material starts to deform permanently. Before this, you can bend it — and it’ll snap back. After this? It’s changed for good.

Ultimate Strength is the highest stress a material can handle before it fractures completely. It's the breaking point. Go past it, and the material fails.

Here’s a simple way to think of it:

  • Up to yield point → the material bends and springs back

  • After yield point, before ultimate → it bends and stays bent

  • Past ultimate point → it snaps, shatters, or crumbles

Real Example: A Steel Beam Under Load

Imagine a steel beam holding up a roof.

● You slowly add weight.
● At first, it flexes slightly — no problem.
● Reach yield strength? It starts to bend permanently.
● Push further? You hit ultimate strength — the beam buckles or breaks.

If you’re designing for real-world loads — you build below the yield strength.
If you ignore that line? Disaster happens before you see a full break.

Why It Matters

  • Yield strength tells you when damage begins

  • Ultimate strength tells you when failure happens

  • Structural engineers always design with safety factors below the yield point — usually 1.5x to 2x lower

Getting this wrong isn’t about style or theory — it’s the reason bridges fall, roofs sag, and materials give out silently.

✔ FIELD TIP: Don’t wait for the break to know you’ve gone too far — design with yield in mind, not the ultimate.

How Engineers Calculate Yield Points

You can’t eyeball yield strength. Engineers use real tests, formulas, and safety codes to find that invisible line — the point where a material stops flexing and starts failing.

Step 1: Use a Stress-Strain Test

It starts in the lab.

A machine pulls or compresses a material sample — steel, concrete, wood — and records how much force it takes to stretch or compress it. This creates a stress-strain curve.

  • Stress = Force per area (e.g., N/mm² or psi)

  • Strain = How much the material deforms (e.g., % change in length)

The curve shows where the material goes from elastic to plastic — that’s the yield point.

Real example: For structural steel (like ASTM A36), the yield point typically shows up around 250 MPa (36,000 psi). That’s when it stops returning to shape.

Step 2: Read the 0.2% Offset Yield Point

Some materials don’t have a clear “yield point” that shows a sudden drop or kink.

In that case, engineers use a 0.2% offset method:

● Draw a line parallel to the elastic portion of the curve
● Start it at 0.2% strain
● Where it intersects the curve = defined yield point

Why? Because some metals (like aluminum) bend smoothly without a sharp yield event. This method gives a standardized point for design.

Step 3: Apply a Safety Factor

You never design right at the yield point. That’s asking for trouble.

Engineers apply a factor of safety (FoS) — usually:

  • 1.5 to 2 for buildings

  • 2 to 3+ for bridges, aircraft, or mission-critical structures

This means: if steel yields at 250 MPa, the design limit might be just 125–166 MPa. Better safe than cracked.

Tools Engineers Use

  • Tensile test machines (Instron, MTS systems)

  • Finite Element Analysis (FEA) for simulating stress in complex shapes

  • Building codes (like AISC, Eurocode, CSA) that define material behavior

Why This Matters

✓ It’s not enough to “trust the material” — engineers have to prove it holds
✓ Calculating yield points means no surprises on site
✓ Every weld, beam, truss, or bolt is sized with this logic

No guesswork. No shortcuts. Just physics, and numbers.

Student Tips: How to Learn Yield Calculations the Right Way

Most students memorize the stress-strain curve… but still fail to calculate real yield points correctly. Here’s how to think and work like a professional from day one:

● Learn Units Inside-Out

If you mix up MPa, kPa, N/mm², or psi — your numbers will be garbage. Get fluent in both metric and imperial. Know how to convert and spot a unit mismatch.

Pro move: Always write units at every step — no naked numbers.

● Don’t Skip the Diagrams

Draw your stress-strain curve by hand a few times. Know where:

  • The elastic slope ends

  • The 0.2% offset line starts

  • The yield plateau happens (in ductile metals like steel)

Seeing it makes it click.

● Practice with Real Specs

Grab real datasheets (e.g. for ASTM A36 steel or Grade 40 rebar) and practice reading:

  • Yield strength

  • Ultimate strength

  • Elastic modulus

Compare across materials. See how different concrete, aluminum, and steel behave.

● Use the Codes — Not Just Class Notes

Engineering codes like AISC, Eurocode, or CSA aren’t just legal documents — they’re step-by-step guides to safe structural design. Learn how to read the yield tables, formulas, and safety factors.

Tip: Download free public versions or use your school’s access.

● Think Like a Builder, Not Just a Student

Ask:

  • What happens if this beam gets overloaded?

  • Will this joint fail in tension or compression?

  • How much safety margin do I need if the use changes later?

These questions turn calculations into real-world thinking — which is what makes an engineer valuable.

Safety Factors and Design Margins

How to Design for Yield Points in Structural Systems

Designing to the limit is a good way to end up on the news—for all the wrong reasons.

In real engineering, we don’t design right up to the yield point. We build in buffers. These are called safety factors and design margins, and they’re what make buildings hold up under real-world chaos—extra weight, temperature changes, sloppy workmanship, or just time.

What’s a Safety Factor?

A safety factor (SF) is a multiplier. It tells you how much stronger your structure needs to be beyond the expected load.

Common safety factors:

  • Steel structures: 1.5–2.0

  • Concrete members: 2.0–3.0

  • Temporary scaffolding or non-critical parts: 1.2–1.5

  • Bridges, aircraft, life-safety elements: 3.0–5.0+

If a beam has a calculated yield stress of 250 MPa, and you apply an SF of 2.0, your working stress limit is only 125 MPa.

Why? Because loads are never exact. Materials vary. Mistakes happen. Safety factors absorb the unknowns.

Design Margin vs. Safety Factor

Engineers often use these terms together—but they’re not the same.

  • Safety factor (SF): A multiplier on the applied load or material strength

  • Design margin: The extra capacity remaining between actual stress and failure

Example:

  • Beam yields at 300 MPa

  • We design for 150 MPa (SF = 2.0)

  • In real use, it sees 120 MPa

  • → Your margin = 30 MPa

Think of it this way:

  • SF is your buffer by design
  • Margin is your actual breathing room

Why Students Mess This Up

Beginners often:

  • Confuse yield strength with ultimate strength

  • Forget to apply SFs after choosing the material

  • Skip checking combined loads (dead + live + wind + seismic)

Pro tip: Don’t just calculate — interpret. Always ask, “Is this strong enough with margin?”

What Codes Say About Yield

Design codes like:

  • AISC (USA)

  • CSA S16 (Canada)

  • Eurocode 3 (EU)

…all use Limit States Design or LRFD (Load and Resistance Factor Design) methods. These apply safety factors:

  • On loads (to cover underestimation)

  • On material strengths (to cover overestimation)

That’s why you’ll see:

  • Dead load factored by 1.2

  • Live load by 1.6

  • Steel resistance reduced by 0.9

It’s not arbitrary—it’s based on decades of failures, data, and safety reviews.

Design Tip: Use Partial Factors for Smarter Safety

Instead of one big safety factor, pros use:

  • Load factor (γ): Adjusts each load type

  • Material resistance factor (φ): Adjusts the strength you’re allowed to count on

This gives a more accurate and more conservative design.

What Happens If You Ignore This?

Without proper design margin, you’ll see:

  • Unexpected deflection or bounce

  • Cracking, buckling, or creep over time

  • Sudden failure when loads shift (e.g., renovation, snow load, added equipment)

Worse? You won’t always get warning signs. Yield doesn’t always look like failure—until it is.

Yield Points in Seismic Zones: Ductility, Collapse, and Survival

When an earthquake hits, you don’t want strength—you want ductility.

Strong but brittle structures (like unreinforced concrete or brick) crack and collapse. But ductile systems bend, absorb energy, and stay standing—even after they’ve passed their yield point.

In seismic zones, survival isn’t about avoiding yield—it’s about surviving it.

What Makes a Structure Survive an Earthquake?

It’s not just how strong your beams are—it’s how they behave after yield.

● Elastic phase → structure flexes
● Yield point → permanent deformation starts
● Plastic phase → structure bends without failing
● Collapse → system loses its shape entirely

Your goal? Design for the plastic phase. Let the structure absorb motion without breaking.

Why Ductility Beats Raw Strength

Let’s compare:

Structure Earthquake Behavior
Rigid concrete wall Cracks and crumbles
Steel frame Bends and sways, but stays up
Brick facade Shatters and falls off
Reinforced concrete frame Cracks, but holds together

In seismic zones, code requires ductile materials and flexible joints for this reason.

Yield Design in Seismic Codes

Modern seismic design assumes:
Your structure WILL exceed yield.

That’s why codes like:

  • IBC (USA)

  • NBCC (Canada)

  • Eurocode 8 (EU)

…all require ductile detailing, like:

● Proper bar hooks and lap lengths in concrete
● Strong beam-column joints
● Reduced mass at the top
● Clear load paths from roof to foundation

These aren’t suggestions. They’re survival rules.

What Engineers Actually Do

In seismic design, we:

● Allow controlled yielding
● Avoid brittle failure modes
● Use “capacity design” – make sure beams yield before columns

This ensures the building flexes in a controlled way—no toppling, no pancaking.

  • Beam yields = fixable
  • Column fails = collapse

Real-World Example: Christchurch, NZ

In 2011, a major earthquake hit Christchurch. Newer buildings designed with ductility in mind stayed standing. But older concrete frames without reinforcement collapsed completely.

✔️ Reinforced steel → bent but held
✕ Unreinforced masonry → total failure
✕ Poor foundation ties → buildings slid off footings

Lesson: Earthquakes don’t just shake things—they test your yield logic.

Pro Tips for Students & Junior Designers

● Always ask: “What happens when this part yields?”
● Think in energy, not force. Seismic design is about absorption, not just resistance.
● Learn moment-curvature behavior—not just linear elasticity.
● Use detailing (bars, ties, joints) to control failure after yield.

Yield isn’t the enemy in seismic design. It’s the plan.

What Happens Beyond Yield: Failures, Cracks, Buckling

Once you pass the yield point, you’ve entered dangerous territory.

The material no longer returns to its original shape. You’ve left the elastic zone and entered plastic deformation. It may still hold for a bit—but it’s on borrowed time.

And here’s the brutal truth:

Most structures don’t fail at once. They fail slowly—then all at once.

What Happens When Yield Is Breached?

Different materials fail differently. Here's what to watch for:

● Steel

  • Signs: Bending, permanent deformation, necking

  • Final failure: Snaps under tension or shear

  • Clue: It's flexible—until it isn't

● Concrete

  • Signs: Hairline cracks → wide fractures

  • Final failure: Shears or crumbles in compression

  • Clue: No warning. It’s brittle.

● Wood

  • Signs: Creaking, bowing, splintering

  • Final failure: Shear or crushing at joints

  • Clue: Moisture + load = creeping failure

Types of Failure Post-Yield

1. Cracking

  • Happens in concrete, glass, and masonry

  • Starts small—can go undetected

  • Often caused by tension exceeding material limit

Danger: Looks cosmetic. It's not. Cracks weaken the whole load path.

2. Buckling

  • Slender members (columns, studs) suddenly bend sideways

  • Happens before full yield if unsupported

  • Accelerated by long spans, poor bracing, or weak end connections

Think: A ruler snapping when compressed.

3. Creep

  • Long-term, slow movement under constant load

  • Materials like concrete and wood deform over months/years

  • Exacerbated by heat, moisture, and poor design

Real effect: Floors sag. Walls tilt. Doors stick.

4. Progressive Collapse

  • One failure leads to another

  • Like dominos—especially in trusses, slabs, or tied systems

  • Caused by unaccounted load paths or poor redundancy

Classic mistake: Removing a wall that “looked non-structural.”

Real Example: A Costly Buckle

In 2015, a newly-built library roof in South Korea buckled after heavy snowfall. The steel trusses had passed design checks—but not for wet snow loads. And the contractor had removed cross bracing to make room for HVAC.

Result?
● 3-month closure
● $2M in retrofits
● Public embarrassment

Lesson? Yield isn't just about force—it’s about how that force travels. If one link fails, the whole system can unravel.

Pro Tip: Know the Failure Mode Before You Pick the Material

  • Want flexibility? Use steel—but brace it properly

  • Need compression strength? Use concrete—but reinforce it

  • Want light + renewable? Use timber—but protect from moisture and fire

Structure is not a guessing game. Know what failure looks like, and you’ll design to avoid it.

Common Mistakes with Yield Stress in Design

Yield stress isn’t some bonus number you throw into your calculations—it’s the line between a building that holds and one that fails. And yet, people screw it up all the time.

Here’s where things go wrong:

1. Using the Wrong Yield Value

Mistake: Designers grab a yield strength number from a generic table without checking the actual grade, supplier spec, or test result.

Real risk: That steel might be A36 (250 MPa) or Grade 50 (345 MPa). Big difference. Wrong guess = undersized beam.

Fix: Always verify material specs from the mill certificate or manufacturer—not just textbooks.

2. Ignoring Stress Concentrations

Mistake: Calculating yield stress assuming a uniform section, ignoring bolt holes, weld zones, or notches.

Real risk: These spots create local stress risers where yielding starts earlier than expected. Cracks start here.

Fix: Add reduction factors or do a finite element analysis (FEA) if necessary. Don’t assume “average” load behavior.

3. Confusing Yield Stress with Ultimate Strength

Mistake: Using ultimate strength (where it snaps) instead of yield stress (where it bends) for design.

Real risk: That “extra strength” may seem like a buffer—but once you pass yield, the material deforms permanently.

Fix: Design stops at yield. Ultimate strength is for failure analysis, not safe design.

4. Forgetting About Load Combinations

Mistake: Running yield calculations under one load type (e.g. gravity), ignoring combined loads—like wind + snow, or quake + live load.

Real risk: The structure hits yield under a real scenario, not the one you designed for.

Fix: Always follow code-prescribed load combinations. The worst-case scenario is rarely the simplest.

5. No Safety Factor

Mistake: Designing right up to the yield line—no room for error, fatigue, or future changes.

Real risk: Over time, repeated stress or added load pushes it beyond yield. Sagging. Cracks. Collapse.

Fix: Use a proper Factor of Safety (FoS). Standard for steel is 1.5–1.67 in many codes. Never assume “close enough” is good enough.

6. Misreading Units

Mistake: Mixing up MPa and psi, or confusing stress (N/m²) with force (N).

Real risk: Bad math = bad beam size = structural disaster.

Fix: Double-check units at every step. It’s not academic—it’s safety-critical.

7. Students Skipping Yield Behavior Altogether

Mistake: Memorizing formulas but never visualizing how yield actually looks in the material.

Real risk: You design paper-perfect structures that break in real life.

Fix: Use stress-strain curves. Learn what the graph means, not just what it’s called.

Pro Tip:

Always ask this before locking your design:

“Where does this yield—and what happens next?”

If you can’t answer that, you’re not done designing.

Real-World Case Studies: When Yield Was Ignored

You don’t need to imagine what happens when engineers skip over yield points. It’s happened — in expensive, dangerous, and very public ways.

These cases show what goes wrong when someone forgets that materials bend, stretch, and break for real — not just in theory.

● The Hartford Civic Center Roof Collapse (1978)

What happened:
A massive steel space-frame roof collapsed overnight during a snowstorm. No one was inside, but the structure failed completely.

The mistake:
The design relied on thin compression members with very little margin beyond calculated loads. Engineers underestimated how close they were to the yield point — especially under combined snow and self-weight. No redundancy. No ductility.

Result:
Full structural collapse. Millions in damages. Rebuilt from scratch.

Lesson:
Designing to yield strength without a buffer is asking for failure. Real loads vary. Snow isn’t always predictable. Materials don’t warn you.

● World Trade Center Collapse (2001)

What happened:
After the impact, heat from fire weakened steel floor trusses. The steel didn’t melt — but it lost strength after crossing its yield point.

The mistake:
The original structure wasn’t designed to account for extreme thermal weakening and long-span truss sag beyond yield under elevated temperatures.

Result:
Progressive collapse — floor after floor. One of the most dramatic failures in modern structural history.

Lesson:
Yield strength drops drastically with temperature. A beam that holds 40 tons cold might only hold 15 under fire. That’s not failure — that’s softened yield.

● Sampoong Department Store, South Korea (1995)

What happened:
A five-story shopping center collapsed during business hours. Over 500 people died.

The mistake:
They added a heavy rooftop air-conditioning unit to a structure never designed for that load. The slab began to deflect — warning signs were ignored. Eventually, the load surpassed the concrete’s yield capacity and led to a pancaking failure.

Result:
Deadliest modern building collapse in a peacetime civilian setting.

Lesson:
You don’t get to "add weight" without recalculating yield. Once deflection appears, you’re already beyond safe limits. Yield isn’t an idea — it’s a line in the sand.

● London Millennium Bridge (2000)

What happened:
The pedestrian bridge wobbled so badly on opening day, it had to be closed after just two days.

The mistake:
The structure didn’t yield, but it danced close to it. Engineers didn’t account for dynamic synchronization — people walking in rhythm caused unexpected lateral loads. While no parts broke, some bracing was stressed to near-yield behavior.

Result:
Embarrassment, retrofits, and months of vibration analysis. No one died, but the press had a field day.

Lesson:
Yield isn’t just a static number. Under vibration, loads change. Structures behave differently. If you’re not simulating real behavior, you’re guessing.

● Silver Bridge Collapse, West Virginia (1967)

What happened:
An eyebar suspension bridge fell into the Ohio River, killing 46 people.

The mistake:
A single eyebar had a small crack — it passed yield during daily stress cycles and failed in brittle fracture. No redundancy meant total collapse.

Result:
Complete structural failure from one part yielding and snapping.

Lesson:
Even steel with high yield strength can fail from fatigue. You have to design for long-term use, not just day-one specs.

Bottom line:
Yield isn’t a theory exam question. It’s the first thing your structure hits when you mess up your math, your materials, or your assumptions.

Ignore it, and your building might not give you a second chance.

How to Apply This in Architecture Projects

Understanding yield points isn't just for engineers — architects need to know where things bend, snap, or hold. If you design without it in mind, someone else will have to fix it later — or worse, your project fails in real life.

Here’s how to apply yield point knowledge on real jobs — from early sketches to site walkthroughs.

1. Design Within Material Limits — Always

● Don’t assume a beam “should be fine” because it worked in a past project.
● Know the yield stress of every material you specify — steel, timber, concrete, even glass.
● Add minimum 1.5x safety factor — don’t design to the edge.

“That steel plate may look solid — until it’s holding HVAC units you didn’t account for.”

2. Coordinate Early With Structural Engineers

● Don’t just hand off the design after it’s done — bring engineers in early.
● Use your design brief to guide structural decisions: spans, openings, cantilevers, ceiling heights.
● Ask the yield questions in schematic design — not after CD phase.

“That 30-foot glass wall looks amazing—until they tell you it needs a steel frame the size of a truck.”

3. Use Load Path Thinking in Floor Plans

Every load has to go somewhere.
If your sketch has a bedroom floating above an open kitchen—what’s carrying the load down?

● Check walls below
● Trace beams and joists
● Know where columns or shear walls can hide cleanly in your layout

“Draw a clean floor plan — then do a quick structural trace. If it floats, fix it.”

4. Don't Ignore Live Load Variability

● A roof deck isn’t just space—it’s a full party, furniture, and rainwater load.
● Yield strength must cover real use, not just minimum code.

“Design for what could happen, not what should.”

5. Use Ductility Strategically

● Ask your engineer where ductile failure is possible — and where it's not.
● In seismic or dynamic zones, your materials need to bend before they break.
● Pick steel, engineered wood, or reinforced systems where shock is expected.

“If something’s going to yield—make sure it yields safely.”

6. Don’t Guess When Cutting, Drilling, or Altering

● You want recessed lighting? TV mount? HVAC ducts?
● Cutting a joist or beam without recalculating load? That’s how ceilings fall.

Always check:

  • Distance from support

  • Yield stress loss due to holes

  • Reinforcement requirements

“One electrician with a drill can destroy your structural plan if you don’t protect it.”

7. Know the Signs of Yield in the Field

● Hairline cracks in concrete = stress accumulation
● Sagging beams = yield point passed
● Vibration or flex = too close to failure

“Your site visits should include structural judgment—not just photos for the client.”

Final Advice for Architects:

  • Learn the basic numbers — yield strength ranges, deflection limits, typical safety factors

  • Practice sketching load paths into every plan

  • Ask your engineers for failure examples — they’ll show you what not to do

  • Treat structure like design — not like an afterthought

Structure is design. Yield is where design fails.

Checklist: What to Ask Your Structural Engineer

Don’t just hand over your drawings and hope for the best. Ask the right questions early — before the structure becomes a problem.

Here’s what architects, students, and builders should ask every time:

General Support Questions

  • What system are we using — frame, wall, truss, hybrid? Why?

  • Where are the primary load paths? Can you walk me through them?

  • What’s the longest unsupported span — and how are we handling it?

  • Where does the structure want to place columns or shear walls?

  • What’s the deflection limit for floors, roofs, and cantilevers?

Yield Point and Safety

  • What’s the yield strength of the main materials? How far are we from that in normal use?

  • What safety factor are we using for each element? Can it handle overload or misuse?

  • Is any part of this structure near yield under worst-case loads?

  • Where is failure most likely to happen if something shifts or gets overloaded?

  • Do we have ductile failure paths planned in seismic zones?

Details that Usually Get Missed

  • Are there any spots where we’re relying on unusual connections?

  • Will MEP (mechanical/electrical/plumbing) cuts or penetrations weaken anything?

  • Are we braced correctly for lateral forces — wind, earthquake, soil shift?

  • Can we handle heavy equipment loads (HVAC, water tanks, elevators) over time?

  • Have we protected exposed elements from corrosion, fire, or vibration fatigue?

Construction & Changes

  • What can the contractor not cut, drill, or alter without calling you first?

  • If the client changes layout or load during construction, what’s our backup plan?

  • What’s the worst mistake a subcontractor could make structurally — and how do we stop it?

Pro Tips to Ask Like a Pro

✓ “Can you show me where the highest bending moment occurs?”
✓ “Are any members designed right up to yield strength?”
✓ “Which part of this system would fail first under real-world misuse?”
✓ “If this building were to shift or settle slightly — where would we see it first?”

Final Rule:
If you don’t ask, they might not tell you. And when structure fails, everyone points fingers.
Better to ask dumb questions now — than fix expensive mistakes later.

Expert Voices on Yield Behavior

What Real Engineers Say About Yield Stress and Structural Failure

“Yield is not the problem. Ignoring it is.”
– Carlos Menendez, P.E., Forensic Structural Engineer

“Most failures I investigate aren’t because yield strength was too low. It’s because someone didn’t ask where the loads were going — or what would happen after something yields. Yield isn’t failure—it’s a warning.”

“You don’t just design for strength. You design for how it fails.”
– Dr. Tina Albrecht, Professor of Structural Mechanics

“Steel gives you signs. Concrete doesn’t. Wood splits without warning. If you don’t understand yield behavior, you don’t understand how to control collapse—and collapse control is what real engineering is about.”

“Yield strength is only useful if you know what the load is.”
– Jae Kim, Senior Engineer, High-Rise Projects, Seoul

“I’ve seen beams calculated down to the decimal—but no one bothered checking the actual HVAC equipment weight. It cracked the slab. Get the loads right first. Then worry about the numbers.”

“Architects who get yield points design smarter.”
– Marla Singh, Lead Architect at Crossform Studio

“When I started asking about stress, load, and bending early on—my buildings got cheaper and more beautiful. Structure doesn’t kill creativity. It sharpens it.”

“Always ask: What happens when it yields?”
– Lars Böttger, Bridge Safety Inspector, Germany

“Yielding doesn’t mean instant failure. Some bridges deform a little, and that’s okay. But if you don’t account for it—next thing you know, bearings are popping loose and slabs are tearing.”

“We don’t guess at yield. We test it.”
– Melissa Doan, Materials Lab Director, U.S. Army Corps of Engineers

“I’ve crushed more concrete samples than I can count. You’d be shocked how often design assumptions don’t match reality. That’s why field testing still matters. Yield isn’t theoretical—it’s physical.”

“Code minimum isn’t safety. It’s the starting line.”
– Adam Razi, Structural Plan Reviewer

“Designing to code yield values might pass review. But what about accidental overloads? Future equipment? Settlement? A good engineer goes beyond the code—because real life doesn’t care what you calculated.”

“Most students confuse stress and strain.”
– Laila Rahim, Civil Engineering Lecturer

“They memorize formulas but can’t explain what happens when a beam bends. You have to feel the force in your brain. Yield is a concept you have to see in motion, not just on paper.”

Best Books and Tools for Learning Yield Points

FIELD-PROVEN BOOKS

1. Design of Concrete Structures by Arthur Nilson
● Covers how yield relates to reinforced concrete
● Real equations, real logic—not just code parroting
● Great for students and early professionals
✔ Used in many top U.S. structural courses

2. Mechanics of Materials by Ferdinand Beer & E. Russell Johnston
● Classic strength of materials textbook
● Breaks down stress, strain, yield, and failure modes
● Great diagrams and practice problems
✔ You’ll actually understand what yield stress means

3. Why Buildings Stand Up by Mario Salvadori
● Non-technical language, real structures
● Explains how materials fail (and why)
● Includes historical collapse examples
✔ Great for architecture students or curious builders

4. Structural Engineering Reference Manual (PPI)
● FE and PE exam prep standard
● Includes yield, ultimate strength, safety factors
● Organized by topic with code references
✔ Field engineers swear by it—keeps your basics sharp

5. Steel Design by William T. Segui
● Everything about yield strength in steel beams, columns, trusses
● Includes LRFD and ASD approaches
✔ Ideal for learning structural steel in practice, not theory

MUST-USE TOOLS

● SkyCiv Beam & Frame Calculators
Online structural calculators that help you model and test yield points, shear, and deflection.
→ https://www.skyciv.com/free-beam-calculator/

● Engineering Toolbox
Quick lookup for yield strength of materials, safety factors, stress-strain diagrams.
→ https://www.engineeringtoolbox.com

● OnScale or SolidWorks Simulation
For advanced learners: simulate material deformation and stress beyond yield. Great if you want to see what’s happening.

How to Actually Learn Yield Behavior Right

● Don’t just memorize values—sketch force paths and failure points
● Test samples or do virtual labs if you can (labs > lectures)
● Ask: “What fails first?” every time you do a problem
● Study how real structures fail, not just how they’re built
● Follow engineers who do forensic work—not just design

Common Exam Questions on Yield Behavior

These are the types of questions that keep showing up—because they reveal who actually understands yield and who’s just memorizing.

1. Define yield strength. How is it different from ultimate strength?

What they’re testing: Your grasp of when a material starts to deform vs. when it fails completely.
Tip: Don’t confuse yield with breaking point—one is the warning, the other is the end.

2. What is the 0.2% offset method, and why is it used?

What they’re testing: Do you know how engineers determine yield in ductile materials like steel?
Tip: Know how to sketch a stress-strain curve and draw the offset line. You don’t need to memorize values—just show the method.

3. Explain the difference between elastic and plastic deformation.

What they’re testing: Can you explain what happens after yield is reached—and why it's important in seismic zones?
Tip: Use real-world analogies like a stretched rubber band vs. bent metal rod.

4. At what point is a structure considered to have failed?

What they’re testing: Do you know how to distinguish between serviceability and ultimate failure?
Tip: Just because it hasn’t collapsed doesn’t mean it’s safe. Yield = permanent damage.

5. Describe how safety factors relate to yield stress.

What they’re testing: Do you understand design margins and how real engineers avoid risk?
Tip: Know the typical factors used (1.5 to 2.0) and how they change with material or context.

6. Which material is stronger in compression: steel or concrete?

What they’re testing: Can you compare material behavior correctly—not just by number but by function?
Tip: Concrete wins in compression, steel wins in tension and ductility. That’s why we combine them.

7. Sketch a stress-strain curve and label yield point, elastic limit, and failure.

What they’re testing: Visual understanding. If you can’t draw it, you don’t really get it.
Tip: Practice this until it’s automatic. Diagrams are half the grade.

8. What is ductility and why is it critical in earthquake design?

What they’re testing: Do you know why materials that bend are safer than ones that snap?
Tip: Ductile failure gives time to evacuate. Brittle failure doesn’t.

9. Explain why brittle materials like glass don’t have a clear yield point.

What they’re testing: Can you explain the different behavior of glass, stone, ceramics?
Tip: Say this: “They fracture without significant plastic deformation—no yield warning.”

10. How do engineers prevent yielding in tension members?

What they’re testing: Do you know design tricks like using stronger materials, larger sections, or bracing?
Tip: Bonus points if you mention safety factors and failure modes.

FAQ

20+ Real Questions About Yield Stress and Yield Points

1. What is yield stress in simple terms?

It’s the stress level where a material stops bouncing back and starts bending or stretching permanently.

2. How is yield stress different from ultimate strength?

Yield stress = start of permanent damage.
Ultimate strength = when the material breaks.

3. Why is yield stress important in building design?

Because once a beam yields, it won’t return to shape. You’ve just damaged the structure, even if it doesn’t fall.

4. What’s the 0.2% offset method?

It’s how we define yield for materials (like steel) that don’t have a sharp yield point. Engineers draw a line 0.2% strain off the origin to find where yielding starts.

5. Does concrete have a yield point?

Not really. Concrete cracks and breaks without much warning. It’s brittle—no ductile yield phase like steel.

6. What’s the difference between yield strength and yield stress?

They’re often used interchangeably. Technically:

  • Yield stress = force per area (MPa or psi)

  • Yield strength = property of the material itself

7. What happens when a material reaches its yield point?

It deforms permanently. Steel might bend. Wood might warp. Concrete might crack. There’s no going back.

8. Can materials recover after yielding?

No. Yielding is permanent deformation. Only elastic deformation is reversible.

9. Is yield stress the same in every direction?

No. Materials can behave differently under tension, compression, and shear. Wood, for example, is strong along the grain—but weak across it.

10. How do engineers test yield strength?

With a tensile test machine. It pulls a sample until it stretches, yields, and breaks. The stress-strain curve shows the yield point.

11. Why do some materials not have a clear yield point?

Brittle materials (like glass, ceramics) break before they deform plastically. No warning, no yield.

12. What’s a safe safety factor for yield strength?

Typically 1.5 to 2.0 times the expected load. Depends on use, codes, and material variability.

13. What’s ductility, and why does it matter?

Ductility is the ability to bend/stretch without breaking. High ductility means the material gives warning before failure—super important in seismic zones.

14. Can temperature affect yield strength?

Yes. Steel, for example, gets weaker as it heats up. That’s why fire protection matters in structural frames.

15. What’s the yield strength of steel?

Depends on the type. Mild steel = ~250 MPa (36,000 psi). High-strength steel can be 2–3x higher.

16. How does yield stress apply in earthquakes?

Structures are designed to yield safely—absorbing energy—without collapsing. That’s called ductile design.

17. What’s the danger of ignoring yield points in design?

Permanent deformation, cracking, sagging—and in worst cases—structural collapse. It’s how most structural failures start.

18. Can wood yield like steel?

Not really. Wood behaves differently—can compress and bend a bit, but it cracks or crushes rather than yielding smoothly.

19. Is yield stress used in codes and standards?

Yes. Structural codes base their limits and design factors on tested yield strengths of materials.

20. What happens if a beam yields but doesn’t break?

It still needs to be repaired or replaced. Yielding means the member has lost stiffness and capacity.

21. How do I avoid yield failure in my design?

Use the correct safety factor, double-check your material specs, and confirm the actual loads (live, dead, wind, etc.) you’re dealing with.

22. Does every structure have to consider yield points?

Yes. Even small decks or sheds. Any structure that carries load needs to avoid yielding under normal use.

Official Codes, Standards, and References

For architects, engineers, and students working with yield strength and structural design

1. American Institute of Steel Construction (AISC)

Standard: AISC 360 – Specification for Structural Steel Buildings
📎 https://www.aisc.org/
➤ Defines yield strength design limits, safety factors, ductile detailing, and load resistance.

2. American Concrete Institute (ACI)

Standard: ACI 318 – Building Code Requirements for Structural Concrete
📎 https://www.concrete.org/
➤ Covers concrete behavior, compressive limits, and design around brittle failure — especially relevant since concrete doesn’t yield like steel.

3. ASCE (American Society of Civil Engineers)

Standard: ASCE 7 – Minimum Design Loads for Buildings and Other Structures
📎 https://www.asce.org/
➤ This sets wind, seismic, snow, and live load assumptions. Yield point design starts with accurate loads.

4. Eurocode (EN 1990–1999)

Standard: EN 1993 – Eurocode 3: Design of Steel Structures
📎 https://eurocodes.jrc.ec.europa.eu/
➤ Includes partial safety factors, yield limits, plastic hinge formation, and seismic ductility.

5. National Building Code of Canada (NBCC)

📎 https://nrc.canada.ca/en/certifications-evaluations-standards/codes-canada
➤ Uses CSA structural codes; includes material yield limits and design rules for snow, wind, and seismic.

6. CSA Group (Canada)

Standard: CSA S16 – Design of Steel Structures
📎 https://www.csagroup.org/
➤ Canadian version of steel code; covers allowable stress design and yield resistance.

7. International Building Code (IBC)

Publisher: International Code Council (ICC)
📎 https://www.iccsafe.org/
➤ IBC references AISC and ACI documents; governs most local codes in the US.

8. FEMA (Federal Emergency Management Agency)

Reference: FEMA 356 – Prestandard and Commentary for the Seismic Rehabilitation of Buildings
📎 https://www.fema.gov/
➤ Offers design guidelines for ductility, yield capacity, and post-yield behavior under earthquake loading.

9. ASTM International

Key Tests:

  • ASTM A36 – Standard for structural steel

  • ASTM E8 – Tensile testing for metals
    📎 https://www.astm.org/
    ➤ These define how yield strength is tested and reported.

10. NIST (National Institute of Standards and Technology)

Reference: Engineering Laboratory – Structural Engineering
📎 https://www.nist.gov/el/structural-engineering
➤ Publishes failure reports, yield research, and material behavior data.

11. ICC-ES Evaluation Reports

📎 https://icc-es.org/
➤ For products with declared yield strength—check if a product is certified for structural use.

12. Structural Engineers Association

Check your local SEAo (e.g., SEAOC in California)
📎 https://www.seaoc.org/
➤ Offers yield-related guidance, seismic design tips, and continuing education.
