Permanent Truss Bracing Requirements: What You Need to Know

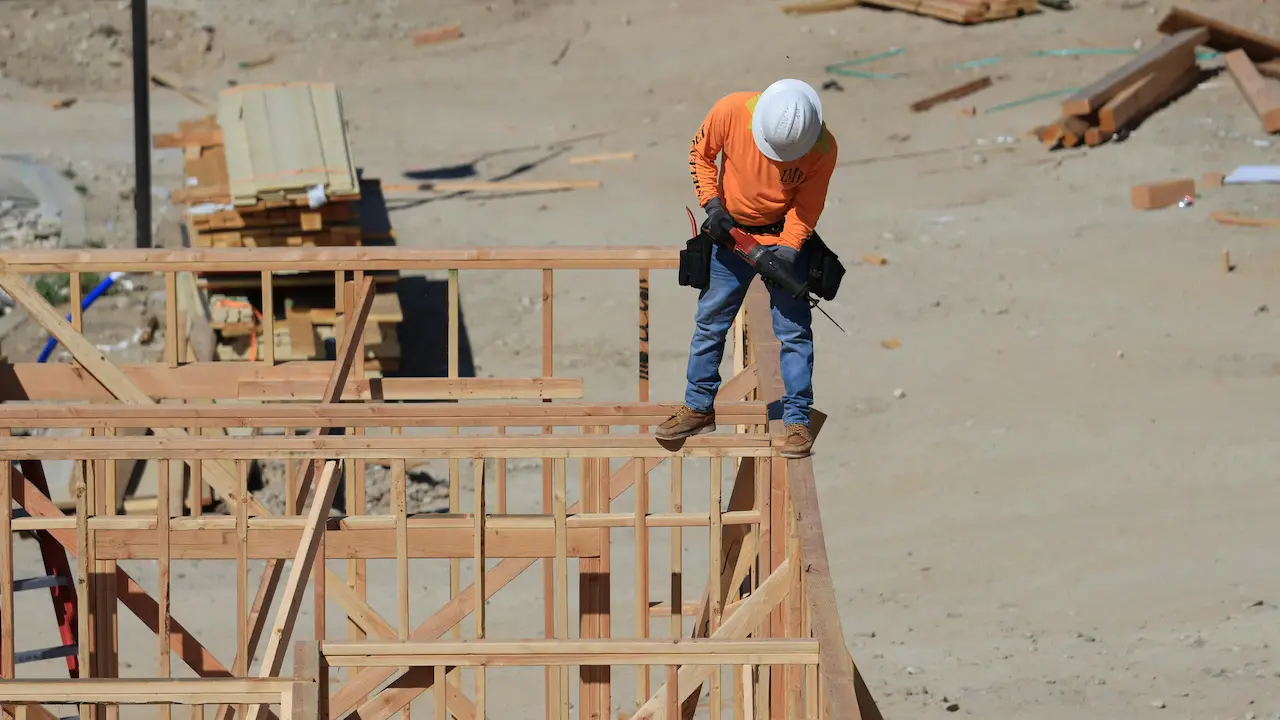

Construction worker installing truss braces on house frames at a building site.

Truss Bracing Done Right: Meeting Permanent Bracing Standards

How to Ensure Permanent Truss Bracing Meets Building Code Requirements

Trusses are the backbone of many roofs and floors, letting us span large areas without tons of interior walls or posts.

They’re lightweight, efficient, and cost-effective. But they also need proper permanent bracing to stay stable and do their job over the long haul.

We’ll explain why permanent bracing matters, what it involves, and how to ensure your trusses remain sturdy from day one.

We’ll also cover typical challenges, best practices, and a practical Do’s and Don’ts section to help you avoid common pitfalls. By the end, you’ll have a clear understanding of how to brace trusses so they don’t twist, wobble, or buckle.

How to Meet Permanent Truss Bracing Requirements for a Safe Structure

Understanding Permanent Truss Bracing: Safety Standards and Best Practices

Why Permanent Truss Bracing Matters

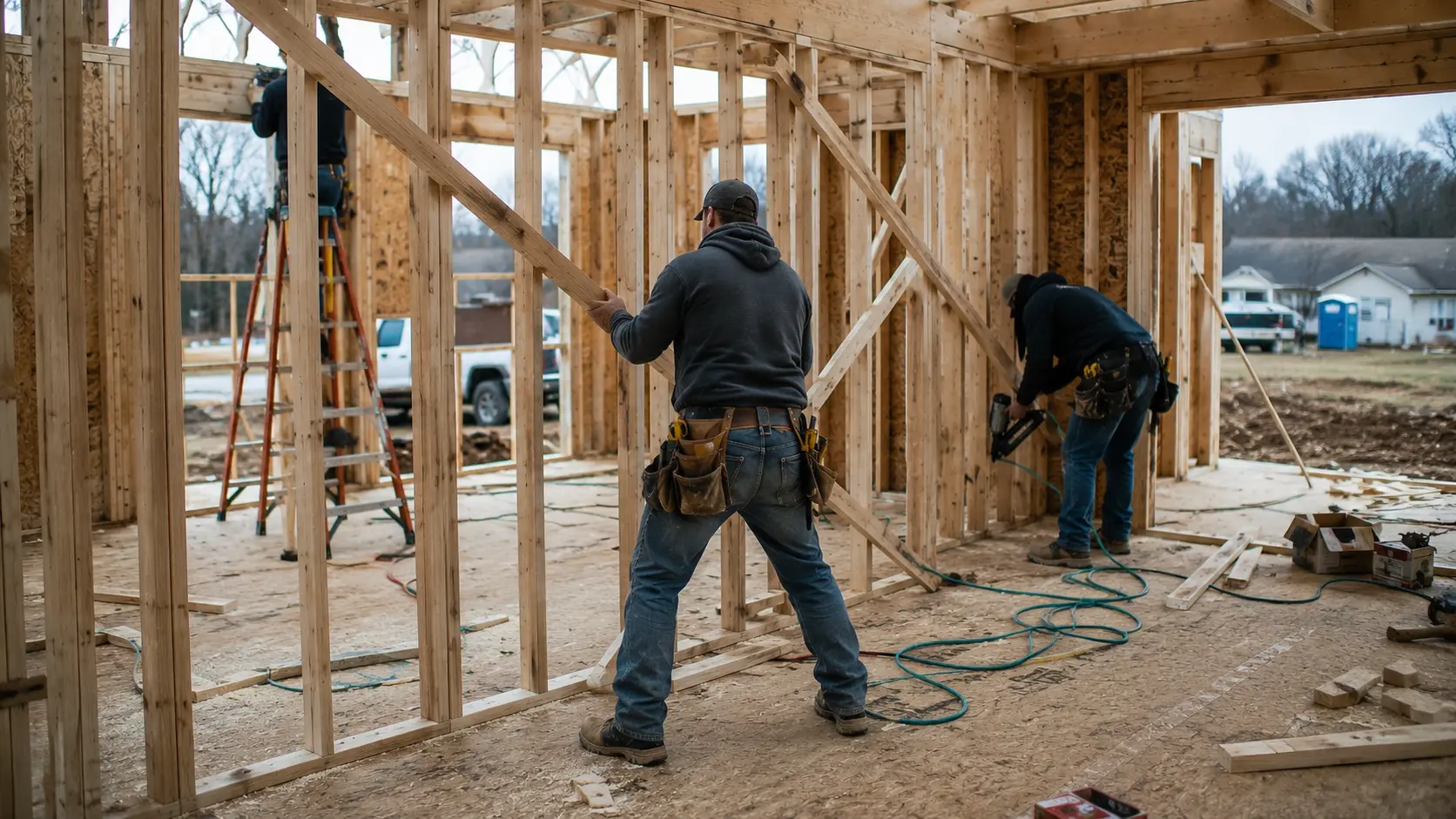

Framing workers installing diagonal temporary braces inside a partially framed wood house.

Let’s start with the basics. Trusses handle vertical loads (like snow or people walking on a floor) within their plane really well. But they can be vulnerable to forces from other directions—like wind, seismic activity, or just the stress of someone working up in the rafters.

Without bracing, parts of a truss can bend or buckle sideways (out of plane), causing structural damage or even failure.

Key Goals of Permanent Bracing

  • Prevent Out-of-Plane Buckling: Compression members (chords or webs under compression) can bend sideways if not braced.
  • Keep Trusses Aligned: Ensuring each truss is spaced correctly so loads distribute evenly.
  • Resist Lateral Loads: Wind or seismic forces that push sideways need bracing to keep the system from racking or shifting.

Ignoring these can lead to big headaches. Repairs can be costly, and occupant safety is at stake. That’s why building codes and design specs always stress the importance of permanent truss bracing.

Core Components of Permanent Truss Bracing

Different bracing components work together to reinforce the trusses in multiple ways. Let’s break them down:

1. Continuous Lateral Restraint (CLR)

  • What It Is: Longitudinal members (often wooden strips or metal sections) attached along specific points of truss chords or webs.
  • Purpose: Stop those members from moving sideways.
  • Where You’ll See It: Typically at intervals specified by the truss designer, often running across multiple trusses in a row.

2. Diagonal Bracing

  • What It Is: Boards or metal straps placed at angles—often forming an “X” or diagonal pattern.
  • Purpose: Work with CLRs to create a rigid framework that resists side-to-side forces.
  • Placement: Usually installed near or alongside CLRs to lock everything in place.

3. Permanent Building Stability Bracing (PBSB)

  • What It Is: A broader term for the bracing system that ties trusses into the rest of the building—walls, beams, etc.
  • Purpose: Make sure the entire structure acts as a single unit against wind or seismic loads.
  • Critical Note: PBSB can include diagonal braces in walls, roof decks that act as diaphragms, and more.

(References: For standards on bracing, see SBCMAG.INFO or check local building codes. The ANSI/TPI 1 standard also highlights these components.)

Official Design Specifications & Codes

Every set of trusses typically arrives with an engineer-approved layout that spells out where to put bracing. It’s vital to follow these documents. Some guidelines to note:

  1. Truss Design Drawings
    • Often show where each CLR or diagonal brace should go.
    • Specify spacing intervals (e.g., every 3.5 to 5.5 meters, or as the design states).
    • Provide details on fastener types—nails or screws, lengths, and positions.
  2. For Long-Span Trusses (60 feet / 18.3 meters or more)
    • The ANSI/TPI 1 standard says you need a Registered Design Professional to develop a detailed bracing plan.
    • This plan often covers both temporary bracing (used during construction) and permanent bracing (what stays for the life of the building).
  3. Local Building Codes
    • May require extra bracing in high-wind or seismic regions.
    • Could have additional rules on materials (lumber grade, metal strapping, etc.).

Ignoring or altering these specs without approval can compromise the structure. If changes are needed, always consult the design professional first.

Step-by-Step: How to Implement Permanent Truss Bracing

Let’s walk through the main steps you’d typically follow on a jobsite. Whether it’s a house roof or a commercial building, the process is similar.

1. Adhere to Design Specs

  • Gather Documents: Have the truss shop drawings and the permanent bracing layout on hand.
  • Mark Locations: Before installing anything, mark on the trusses where CLRs and diagonal braces should go. That way you’re not guessing mid-installation.

2. Use the Right Materials

  • Stress-Graded Lumber (often 2x4 or 2x6) for bracing.
  • OSB or Plywood if the design calls for structural sheathing or stiffeners.
  • Metal Straps or Purlins for extra stability.
  • Fasteners: Usually nails or screws of a specific type and length.

(References: WWTAMS.COM has guidelines on bracing lumber and connections.)

3. Install CLRs & Diagonal Braces

  • Position CLRs at the chord or web points shown in the drawings. Make sure they run continuously across the trusses. Overlap splices where indicated.
  • Attach Diagonals that cross the CLRs to form a rigid triangle. Diagonals might run from the top of one truss chord to the bottom chord of a neighboring truss.

4. Anchor Bracing Securely

  • Fasten braces to the truss chords or webs with nails/screws in the pattern recommended (e.g., 2 nails at each connection).
  • Avoid Overdriving nails, which can weaken the joint.
  • Check for Alignment: Everything should be straight and tight to each truss, with no big gaps.

5. Integrate Bracing into the Overall Building

  • Tie-Ins: If the design requires connecting the roof or floor trusses to certain walls or beams, follow that.
  • Sheathing Over: Sometimes the roof deck or floor sheathing also acts as bracing if installed with the correct pattern of fasteners.

6. Inspect & Recheck

  • During Construction: Have a supervisor or engineer check that each brace is placed correctly.
  • After Finishing: Periodic inspections keep an eye out for any damage, missing braces, or modifications by other trades.

Common Challenges & Real-World Solutions

No project is perfect. Below are typical snags and how to handle them.

1. Complex Bracing for Large Spans

  • The Issue: Big trusses (over 60 ft) require more robust bracing.
  • Solution: Bring in a specialized engineer. They’ll design a system that handles both construction-phase stability and permanent loads.
  • Tip: Check references from SBCMAG.INFO for large-span guidelines.

2. Coordination Between Trades

  • The Issue: Electricians, plumbers, or HVAC installers might cut or move bracing to run their lines.
  • Solution: Communicate early. Everyone should know which braces are off-limits. If something must be relocated, consult the design professional.
  • Tip: Label critical braces with “Do Not Remove” or similar signage.

3. Mid-Project Changes

  • The Issue: Sometimes the layout changes or new openings (like a skylight) get added.
  • Solution: Any modification that impacts truss geometry or bracing must be signed off by the engineer. Don’t just guess or “make it work.”
  • Tip: Document changes in writing so there’s a record for final inspections.

4. Weather & Moisture

  • The Issue: If trusses or bracing materials get wet for too long, they can warp or lose strength.
  • Solution: Store lumber off the ground, cover materials if storms are expected, and let them dry if they’re damp before installing.
  • Tip: Inspect for mold or rot if the project has been delayed in a humid climate.

Advanced Best Practices

Going beyond the basics can help you achieve a truly robust system.

1. Evaluate Actual Site Conditions

Even a perfect bracing design might need tweaks if the site has unusual wind exposure or if the building layout changed from original plans. Keep your eyes open for red flags like large doors in end walls or interior load shifts.

2. Use Sheathing Strategically

Sometimes roof or floor sheathing can double as bracing when installed with a certain pattern of nails, known as a “diaphragm.” This can eliminate the need for many separate braces, but only if the design specifically calls for it.

3. Combine Wood & Metal Bracing

For big jobs or tricky layouts, a mix of wood purlins and metal straps can handle tension and compression more effectively. Metal rods can also be used as cross-bracing in extreme cases.

4. Thorough Documentation

Take photos of the bracing once it’s installed, especially if it’ll be covered by drywall or insulation. This helps future renovations or repairs know where critical structural elements lie. Keep a log of any design changes or site modifications.

Truss Lateral Bracing Span: What You Need to Know

Lateral bracing in trusses prevents them from buckling or shifting sideways, ensuring your structure stays strong and safe.

How It Works

  • Lateral braces are long, horizontal supports placed across multiple trusses.
  • They keep trusses from flexing, especially in high winds or heavy load conditions.
  • Proper spacing is critical—too far apart, and braces lose effectiveness.

Spacing Guidelines

✅ Standard Residential Spacing: Usually 3 to 10 feet apart (based on truss type and design).
✅ Long-Span Trusses: Require closer bracing and diagonal reinforcements to prevent flexing.
✅ Always Follow the Plan: Truss manufacturers provide exact layouts—don’t guess.

Installation Tips

✔ Use Strong Materials – 2x4 stress-graded lumber or metal straps are commonly used.
✔ Align Everything Properly – Crooked bracing won’t do its job.
✔ Don’t Remove Bracing Later – If you need to adjust for wiring or vents, get engineer approval first.

Common Mistakes to Avoid

🚫 Skipping Braces – Just one missing piece can cause roof movement over time.
🚫 Overdriving Nails – This can weaken the wood. Use the right fasteners for secure connections.
🚫 Ignoring Load Requirements – High-wind areas or heavy roofs need stronger bracing—don’t assume all trusses are the same.

By getting lateral bracing right from the start, you’ll avoid expensive repairs, sagging roofs, and structural failures. Keep it tight, follow the plans, and your trusses will hold strong for years to come. 🏗

Do’s & Don’ts (Quick Reference)

Let’s keep it simple and direct.

✅ Do’s

  1. Follow the Engineer’s Plan: It’s not optional. The plan was made for safety.
  2. Check Lumber Grades: Lower-grade lumber might not meet the load requirements for permanent bracing.
  3. Communicate with Other Trades: Everyone should know the bracing layout so they don’t cut or remove structural elements.
  4. Incorporate Regular Inspections: During construction and periodically afterward, ensure no bracing is missing or damaged.
  5. Use Proper Fasteners: If the design says 3-inch nails, don’t use shorter ones.

🚫 Don’ts

  1. Skip or Skimp on Bracing: Even if a short span seems stable, minimal bracing can fail under strong wind or unexpected loads.
  2. Assume All Changes Are Fine: Removing a brace or shifting it for wiring without approval can weaken the structure.
  3. Use Undersized Materials: 1x4 might be cheaper than 2x4, but if 2x4 is specified, it’s for a reason.
  4. Forget About Seismic or Wind Requirements: In high-wind or quake zones, codes are stricter. You can’t treat it as a normal site.
  5. Ignore Temporary Bracing: While we’re focusing on permanent bracing, the building can collapse during construction if temporary bracing is neglected.

Extra Tips for Success

  1. Keep Photos & Records: Snap pictures of each stage of bracing installation. Good documentation can be a lifesaver if there’s ever a dispute or future renovation.
  2. Label Key Braces: Placing a small tag or marking on critical braces can warn other trades not to remove them.
  3. Plan the Work Sequence: Coordinate with the framing crew, roofing installers, and any mechanical trades so no one’s bracing gets dismantled by accident.
  4. Mind the Weather: If you’re working in a rainy or snowy season, keep an eye on moisture content in your lumber. Warped or swollen bracing won’t fit snugly, leading to potential alignment issues.
  5. Ongoing Education: Building codes evolve. Stay updated on changes regarding bracing or new materials that might simplify your job.

Real-World Example: A Residential Roof with Long Trusses

Imagine a new house that uses trusses spanning about 50 feet across an open-concept living area.

The truss manufacturer’s prints detail exactly where to put continuous lateral restraints on the top chords and some diagonal braces bridging from the first truss to the last.

The builder diligently follows these specs, nails everything correctly, and schedules a framing inspection.

A few weeks later, the homeowner says they want a skylight in the middle. Suddenly, that might require cutting or modifying part of a truss.

Without adjusting the bracing plan, the structure could be weakened. The contractor calls the truss engineer, who redesigns the bracing around the altered chords, and everything proceeds smoothly.

This scenario shows how crucial bracing is—and how important it is to consult professionals if the design changes.

FAQs

Q1: Do I really need an engineer for bracing?

  • Answer: For standard smaller spans (often under 60 ft), the truss manufacturer’s design typically suffices. But if you have long spans, complex designs, or local code demands, an engineer’s input is crucial.

Q2: How often should I inspect the bracing after the building is finished?

  • Answer: At least once a year, or whenever you suspect damage (like a storm or a renovation that might have altered the structure). Quick visual checks are usually enough unless you see major issues.

Q3: Can metal straps replace all wood bracing?

  • Answer: Not necessarily. Many designs use both. Metal straps are great in tension, while wood braces can help with compression. Follow your design specs.

Q4: Are roofing nails okay for bracing?

  • Answer: It depends on the design. Usually, ring-shank or specific nail types/sizes are recommended. Roofing nails might be too short or have inadequate holding strength.

Q5: Does each truss type require the same bracing?

  • Answer: No. Roof trusses, floor trusses, or attic trusses can have unique bracing needs. Always refer to the exact plan for your truss type.

Best Sellers: Helpful Construction & Bracing Books

If you’d like a deeper dive into wood construction, structural design, or truss bracing specifics, these books can broaden your knowledge. Watch for deals—prices often shift, and sometimes these go on sale.

1. “Modern Carpentry” by Willis H. Wagner

Why It’s Great:
✅ Covers framing, bracing, and real-world building methods.
✅ Known as a go-to resource in many trade schools.
⏰ Price Tip: Check Amazon for discounts or used copies.

2. “The Visual Handbook of Building & Remodeling” by Charlie Wing

Why It’s Great:
✅ Packed with illustrations showing how structural components fit together.
✅ Easy to follow, even for novices.
⏰ Availability: Sometimes limited in stock—grab it if you see a good price.

3. “Building Construction Illustrated” by Francis D.K. Ching

Why It’s Great:
✅ Clear diagrams on everything from foundations to roof systems.
✅ Helps you visualize how bracing integrates with the entire structure.
⏰ Watch for occasional price drops.

4. “International Building Code (IBC)” by ICC

Why It’s Great:
✅ Direct code references, including sections on bracing.
✅ Not the easiest read, but essential for understanding legal requirements.
⏰ E-book versions can be cheaper or included in certain professional subscriptions.

Pro Tip: Reading about bracing can help you discuss it more confidently with engineers or inspectors, and ensures you’re up to date on best practices.

Conclusion: Truss Bracing Is Non-Negotiable

Permanent truss bracing isn’t just a checklist item—it’s a critical safety measure. A well-braced truss system handles day-to-day loads, resists wind and seismic forces, and stands the test of time. On the flip side, skimping on bracing or ignoring design specs puts the entire structure at risk.

The steps are straightforward: follow your truss design drawings, pick the correct materials, install them carefully, and keep them in good shape over the years. If changes arise, consult the engineer or truss supplier instead of guessing. By doing so, you ensure everyone using or living in that building can trust its integrity.

Final Thought: Don’t be afraid to ask questions or to bring in extra expertise. The money and time spent on proper bracing upfront is a fraction of the cost of fixing a structural failure later. Stay safe, follow your approved plans, and you’ll have a stable, long-lasting structure that meets code and keeps occupants confident in its strength.
