Santiago Calatrava’s architecture is easy to recognize: white ribs, tilted pylons, twisting towers, bridges under tension, and buildings that seem to move even when they are standing still.
Santiago Calatrava makes structure visible. That is the reason his work is loved, copied, photographed, criticized, and argued about. A Calatrava bridge rarely tries to disappear. A Calatrava station does not behave like a quiet roof over tracks. His museums, towers, pavilions, and transportation hubs often turn engineering into a public event.
The useful way to study him is through the pressure inside the work: architecture, engineering, sculpture, public symbolism, budget, maintenance, and civic pride all tied into one visible structure.
His best work can make infrastructure feel alive. His weaker or more controversial work shows the risk of architectural drama when cities have to maintain it, clean it, insure it, defend the cost, and live with the leaks, repairs, or operational limits after the opening ceremony is over.
Calatrava is not a safe architect. That is the point.
Valencia, Zurich, and the Engineer’s Eye

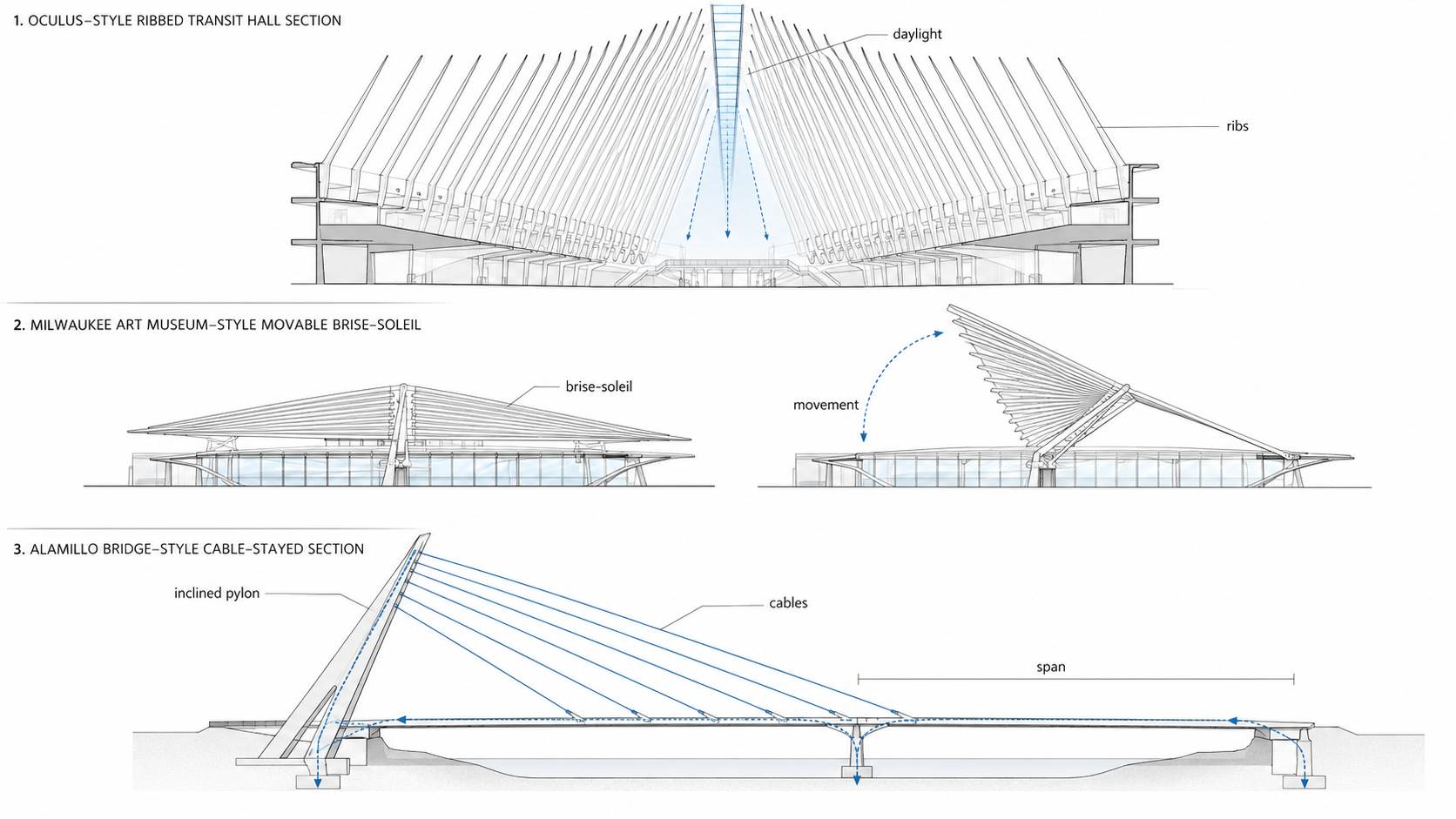

Illustration by ArchitectureCourses.org. Simplified studies of real Calatrava design systems: ribbed transit halls, movable brise-soleil shading, inclined pylons, cable-supported spans, daylight, and structural movement.
Santiago Calatrava Valls was born in Valencia, Spain, in 1951. Valencia matters in his story because it gave him light, civic space, Mediterranean geometry, and later one of his most visible testing grounds: the City of Arts and Sciences.
He first trained as an architect at the Escuela Técnica Superior de Arquitectura de Valencia. Then he went to ETH Zurich, where he studied civil engineering and completed a doctorate in technical science. That second training changed the work. Calatrava did not treat engineering as a consultant’s problem handed over after the sketch. He made engineering part of the sketch.
This is where many quick profiles get him wrong. The point is not that he is an architect who likes structure. The point is that his career sits in the narrow space where architectural form and structural behavior fight each other until one drawing has to carry both.
That is why his early work included stations, bridges, warehouses, canopies, and infrastructure. Those projects suited him. They gave him spans, load paths, movement, repeated ribs, compression, tension, and public circulation. A wall was rarely enough. Calatrava needed a force to draw against.
For a useful contrast, Norman Foster also makes structure and technology visible, but Foster usually pushes toward disciplined system clarity. Calatrava pushes toward expressive structure, bodily movement, and civic spectacle.
Structure First, Sculpture Second

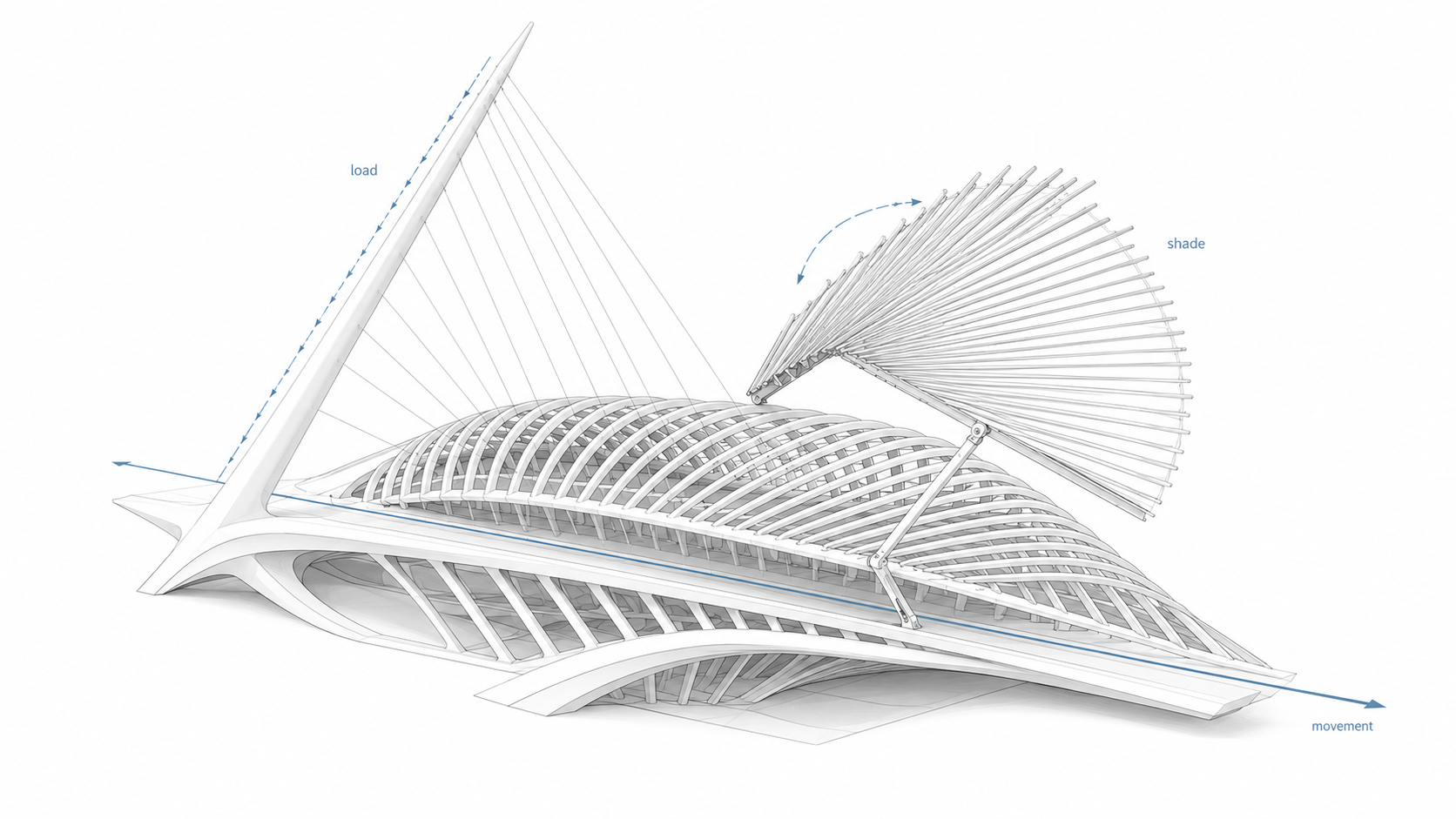

Illustration by ArchitectureCourses.org. This diagram shows how Calatrava-inspired architecture often combines movement, structure, ribs, cables, and shade into one expressive civic form.
Calatrava’s buildings are often described as sculpture. That is partly fair. He draws, paints, and sculpts, and his buildings often come from studies of bodies, wings, skeletons, shells, eyes, spines, and movement.
Still, calling the work “sculptural” can be too easy. Sculpture does not need to drain rainwater. Sculpture does not need to move commuters through a station at rush hour. Sculpture does not need to keep a museum lobby comfortable in winter, protect a bridge deck from slipping, or justify a public budget.
Calatrava’s architecture becomes interesting at that point. The form wants to be art, but the building still has to behave.
His best projects hold those two pressures together. The moving wings of the Milwaukee Art Museum are beautiful because they shade, signal, and perform. The Turning Torso reads like a twisting body, but its core and stacked units make the twist legible as structure. The World Trade Center Oculus uses a ribbed form to create a vast, bright public interior, but the project also carries the burden of cost, delay, security, circulation, and symbolism.
The mistake is to copy the shape without copying the discipline. A ribbed roof with no structural logic is decoration. A twisted tower with no plan logic is a rendering trick. A dramatic bridge that ignores maintenance, deck performance, drainage, and daily users becomes a problem dressed as an icon.
The Design Language

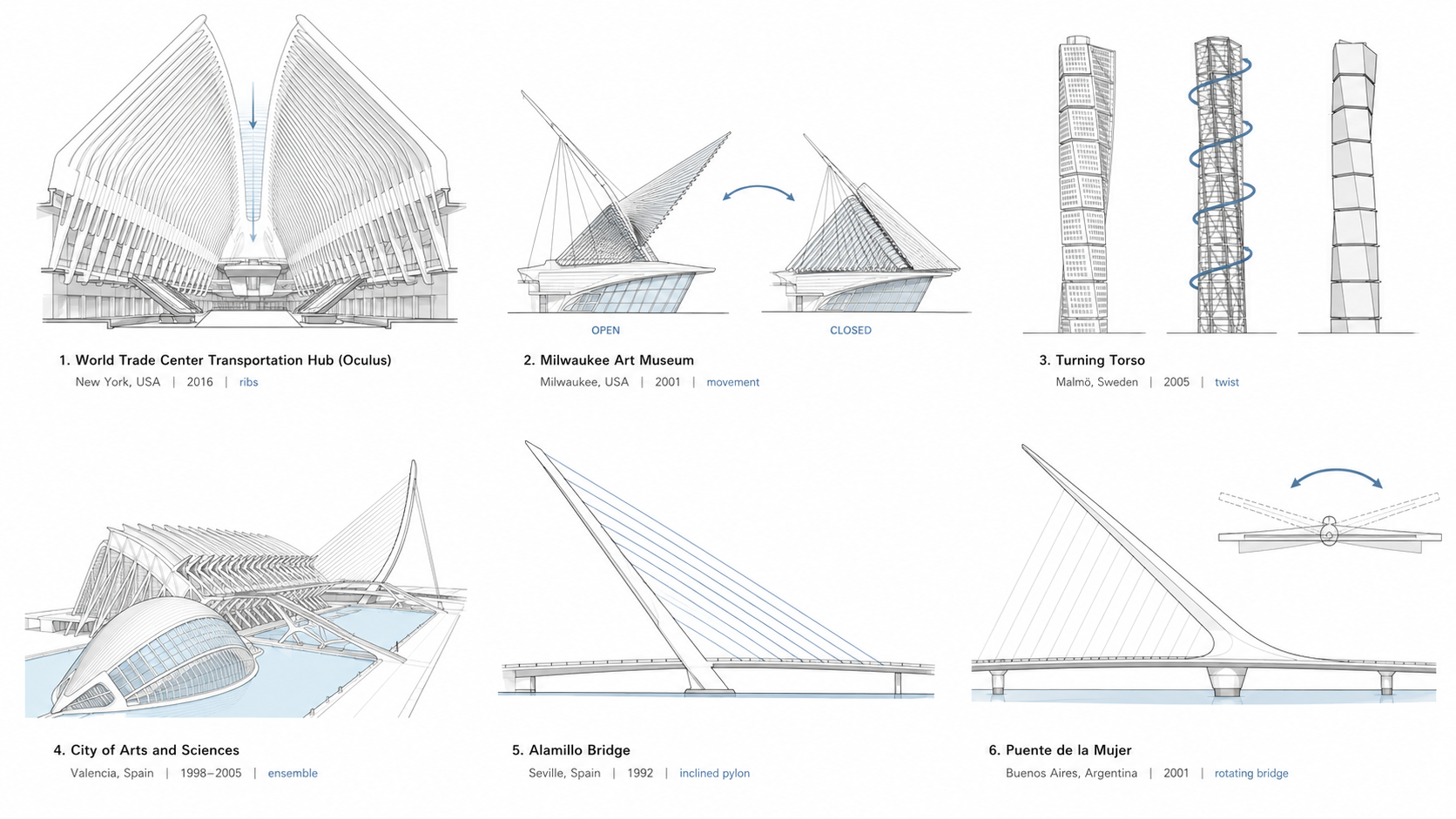

Illustration by ArchitectureCourses.org. Some of Santiago Calatrava’s best-known works include the Oculus in New York, the Milwaukee Art Museum, Turning Torso, the City of Arts and Sciences, Alamillo Bridge, and Puente de la Mujer, each showing his recurring interest in ribs, movement, twisting form, and cable-supported structure.
Calatrava has one of the clearest design languages in contemporary architecture. That clarity is useful for students, but it is also dangerous. The visible cues are easy to imitate.
| Design Move | What It Does Well | Where It Can Fail |
|---|---|---|
| White ribs and repeated structural members | Make span, rhythm, and light feel architectural | Can become expensive visual repetition if the members are not doing real work |
| Tilted pylons and cable systems | Turn bridges into civic markers rather than simple crossings | Create complex forces, details, inspection needs, and maintenance exposure |
| Kinetic elements | Give a building public drama and environmental function | Add motors, hinges, sensors, weather risk, and long-term service costs |
| Biomorphic forms | Make structure feel connected to bodies, wings, bones, shells, and motion | Can slide into gesture if the plan, section, and construction do not support the metaphor |
| Monumental public interiors | Give stations, museums, and civic buildings a strong memory | Can cost heavily in structure, cleaning, glazing, climate control, and security |
The table matters because Calatrava is easy to praise badly. “It looks like a bird” is not enough. The better question is whether the wing, rib, pylon, twist, or shell helps the building stand, move people, manage light, mark a civic place, or carry meaning that the public can still understand after the novelty fades.
Famous Buildings by Santiago Calatrava
Calatrava’s career is easier to understand by project type than by a simple top-ten list. His strongest work usually appears where span, movement, public circulation, and symbolism are already part of the problem.
Bridges

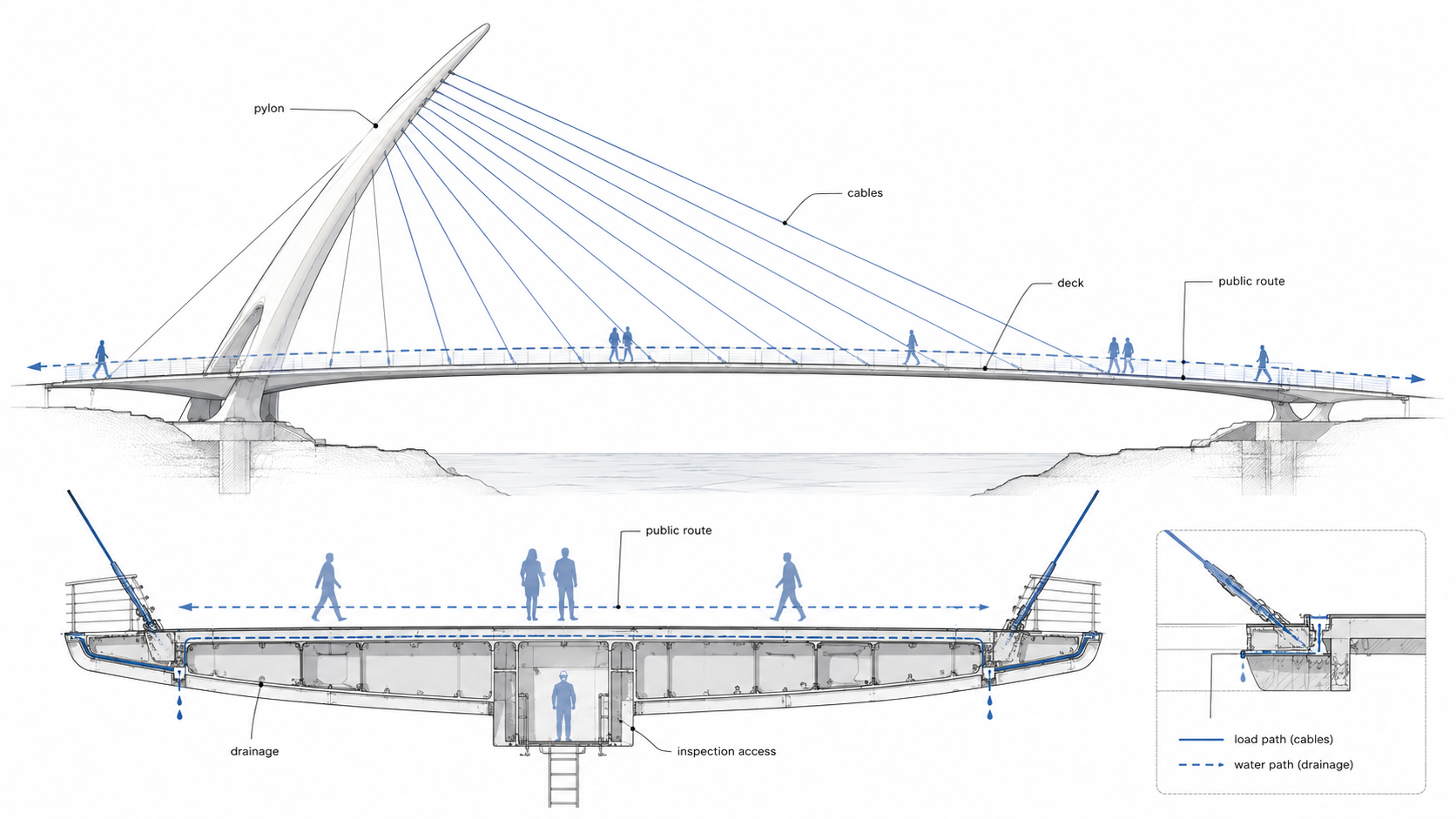

Illustration by ArchitectureCourses.org. A sculptural pedestrian bridge can work as a civic icon above, but it also brings hidden maintenance demands below, including drainage, inspection access, cable anchoring, and deck upkeep.
Bridges gave Calatrava the cleanest stage. A bridge already has a structural job. It crosses, spans, balances, pulls, and transfers load. Calatrava made those forces visible.
The Alamillo Bridge in Seville, the Puente de la Mujer in Buenos Aires, the Chords Bridge in Jerusalem, the Sundial Bridge in Redding, the Peace Bridge in Calgary, and the Margaret Hunt Hill Bridge in Dallas all show the same ambition: infrastructure can become a civic object.
That ambition is powerful. It is also risky. A city buys more than the opening-day image. It buys inspection, cleaning, repainting, weathering, lighting, deck performance, public safety, and repairs.
Museums and Cultural Buildings
The Milwaukee Art Museum remains one of the cleanest introductions to Calatrava. Its Burke Brise Soleil opens and closes like a bird’s wings. The wings have a job beyond gesture: shade, signal, and civic identity. Visitors remember the building before they know the technical name of the moving screen.

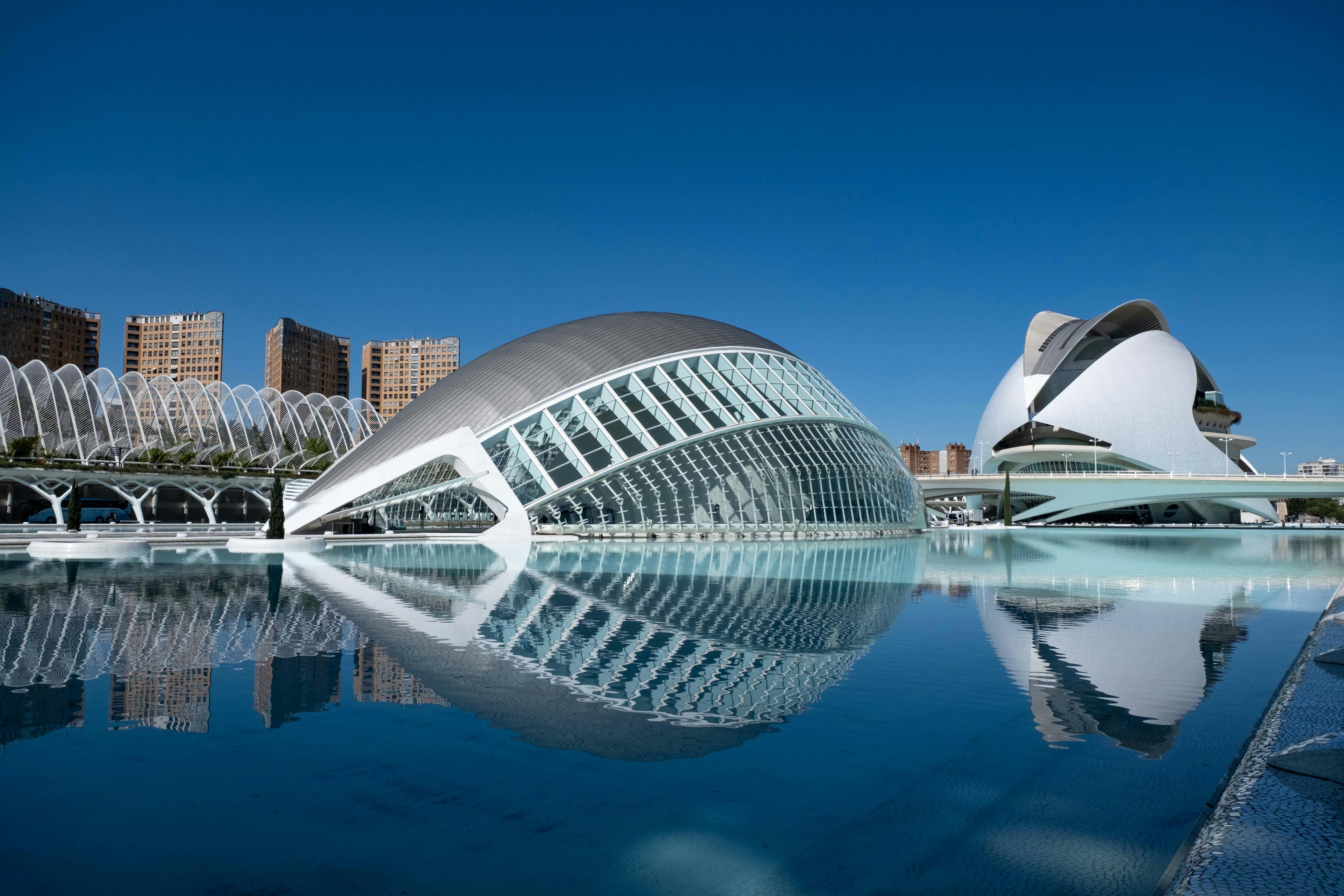

The City of Arts and Sciences in Valencia is larger and more complicated. It is a cultural complex, urban image, tourist magnet, and hometown monument all at once. It also shows the cost of making architecture carry so much symbolic weight. The buildings are unforgettable, but they are not modest civic containers.
The Museum of Tomorrow in Rio de Janeiro extends the same language into a waterfront setting. It uses a long, cantilevered form and moving environmental features to make a museum feel like a machine pointed toward the future.
Towers
Turning Torso in Malmö is Calatrava’s most famous tower. It takes a human-torso idea and turns it into a high-rise: stacked units rotate around a central core, creating a 90-degree twist from base to top.

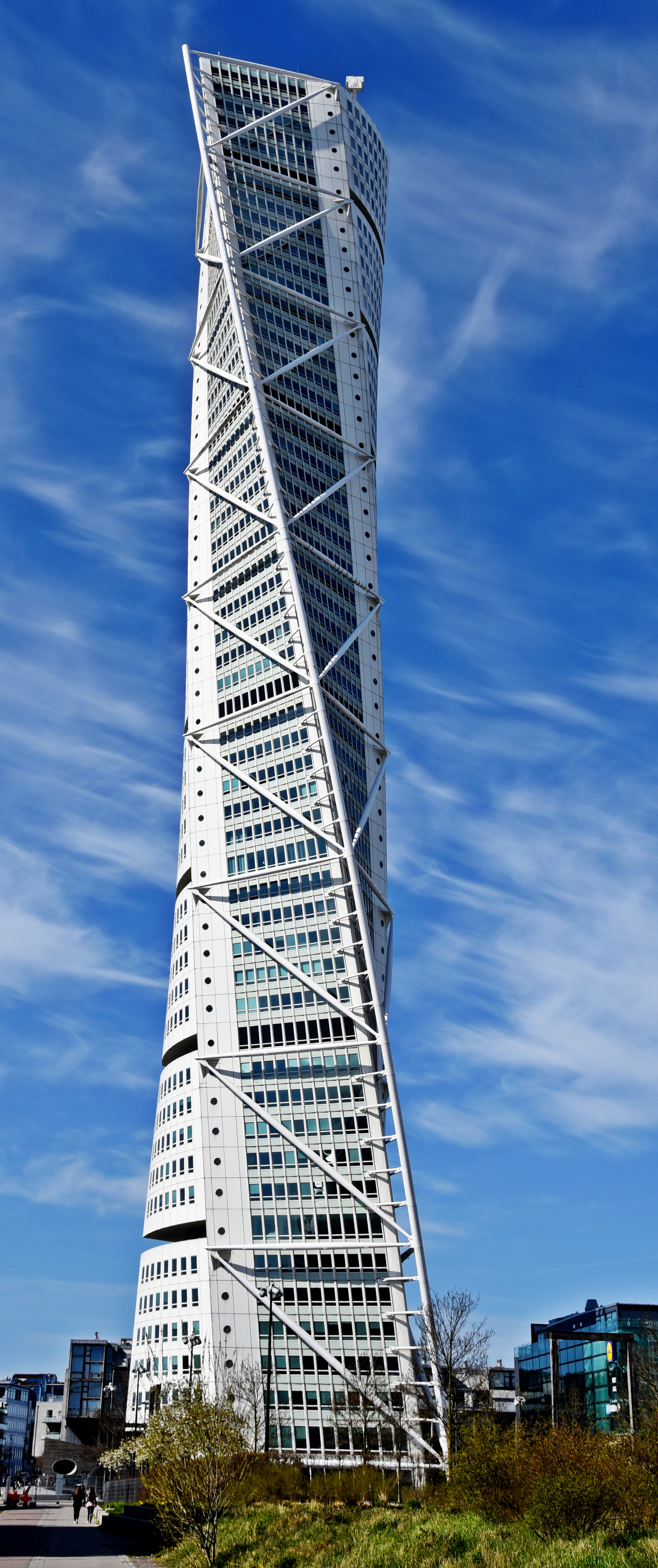

The Turning Torso in Malmö turns Calatrava’s interest in the body into a high-rise structure. The useful lesson is the relationship between twist, core, stacked floor units, and image.
The tower is often copied visually in student projects. The copy usually fails because a twist changes everything: core position, floor plates, facade geometry, structure, wind behavior, vertical services, cladding tolerances, and cost. A twist is not a styling move. It is a building-wide commitment.
Transportation Hubs
Calatrava’s stations and transport buildings show both sides of his talent. Stadelhofen Station in Zurich, Lyon-Saint-Exupéry TGV Station in France, Liège-Guillemins Station in Belgium, and the World Trade Center Transportation Hub in New York all make movement visible.
Stations suit him because people are already moving. The architecture does not have to invent drama from nothing. It can give form to arrival, departure, waiting, crossing, and orientation.
The problem is scale. A transportation hub has to work on the bad day, not only in the photograph. Crowds, signage, security, snow, leaks, cleaning, maintenance access, and daily frustration do not care how beautiful the ribs are.
The Moving Part Becomes the Maintenance Problem

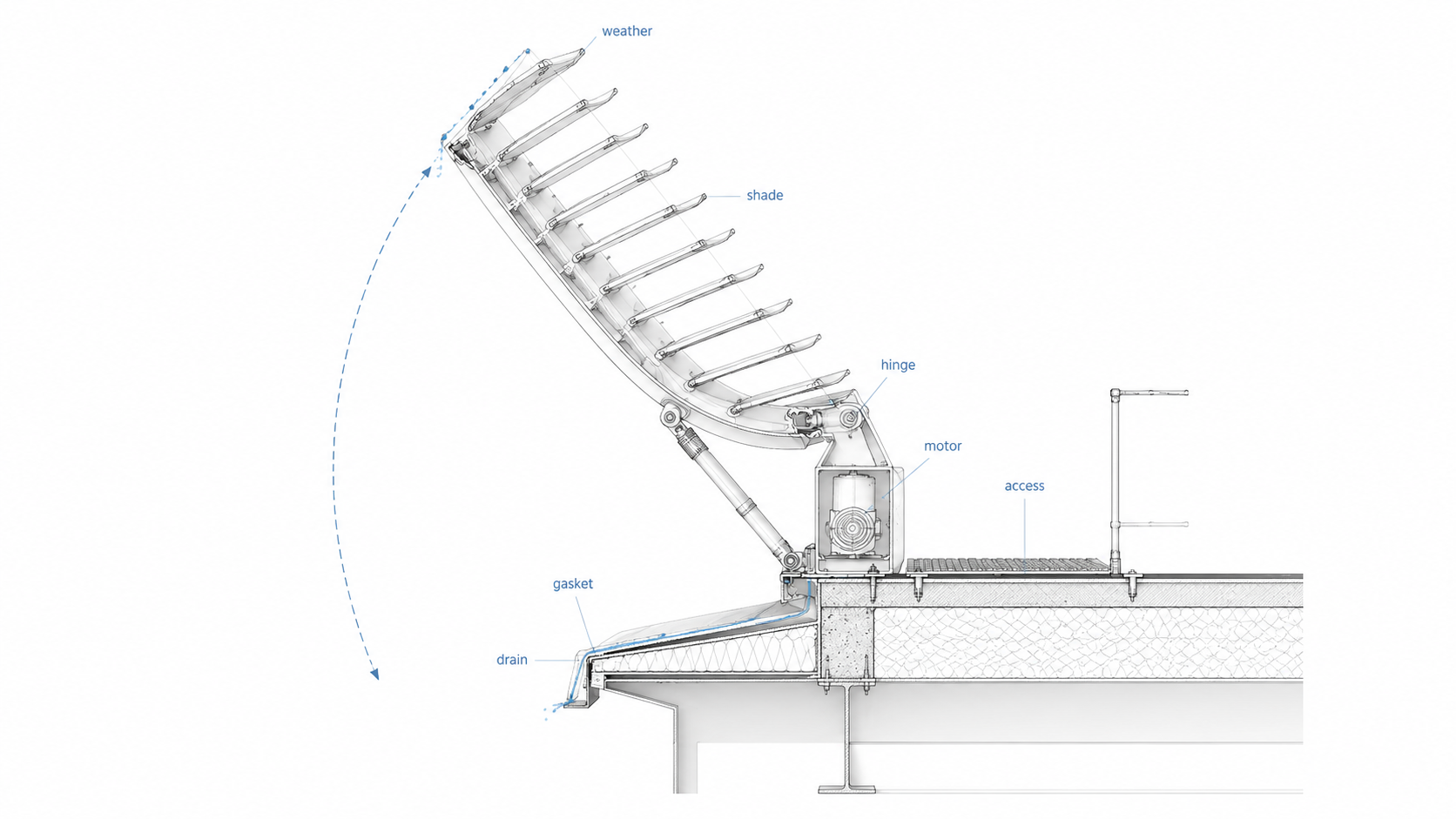

Illustration by ArchitectureCourses.org. A moving architectural element may look light and expressive, but the hinge, motor, gasket, drain, and access path make it a serviceable piece of building equipment.
This is the section most polite Calatrava profiles avoid.
A moving roof, bridge, screen, or wing is not finished when it opens for the photographer. It has a second life as equipment. Hinges need service. Motors fail. Sensors drift. Seals age. Drainage paths clog. Glazing gets dirty. Painted steel needs inspection. Public agencies inherit the work long after the design team leaves.
That does not make kinetic architecture wrong. It makes it expensive in a way the first drawing rarely admits.
The Milwaukee Art Museum’s moving brise-soleil works because the motion has a clear public and environmental role. It shades, performs, and turns the museum into a civic event. That is a high bar. If a moving element only exists to make a building memorable, the owner is left maintaining a mechanical metaphor.
This is the harder lesson for students and cities. Calatrava’s work can inspire better architecture, but it also warns against cheap spectacle. If the moving part cannot be maintained, if the drainage cannot be reached, if the glass cannot be cleaned, if the bridge deck becomes slippery, or if the city cannot defend the maintenance budget ten years later, the icon starts losing the argument.
The protective question is blunt: what happens after the opening week?
Cost Overruns Are Part of the Story
Calatrava’s controversies are not a side note. They are part of how his work should be taught.
Large public architecture is already vulnerable to cost escalation. Add unusual geometry, custom structure, symbolic pressure, complex procurement, public politics, and changing client demands, and the risk grows. Calatrava did not invent that problem, but several of his projects became famous examples of it.
The World Trade Center Transportation Hub opened after years of revisions, delays, and escalating costs. Valencia’s City of Arts and Sciences became a landmark, but it also became impossible to separate from public debate over spending, defects, repairs, and political responsibility. Those examples matter because they show what happens when civic ambition, custom structure, and public budgets collide.
Supporters argue that the buildings create lasting civic value. Critics argue that the public pays too much for spectacle.
Both arguments can be true at the same time.
A city may decide that an unforgettable station, bridge, or museum is worth the premium. That is a political and cultural choice. The weak move is pretending the premium does not exist. The honest move is asking what the public gets in return: better movement, stronger identity, tourism, civic pride, durable materials, better public space, or only a dramatic object that becomes harder to defend every budget cycle.
Calatrava’s architecture teaches a valuable lesson because it refuses to stay inside architecture. It pulls in public money, procurement, maintenance, engineering risk, image-making, tourism, and civic memory. That is why the work remains alive as an argument.
How to Study Calatrava Without Copying Him

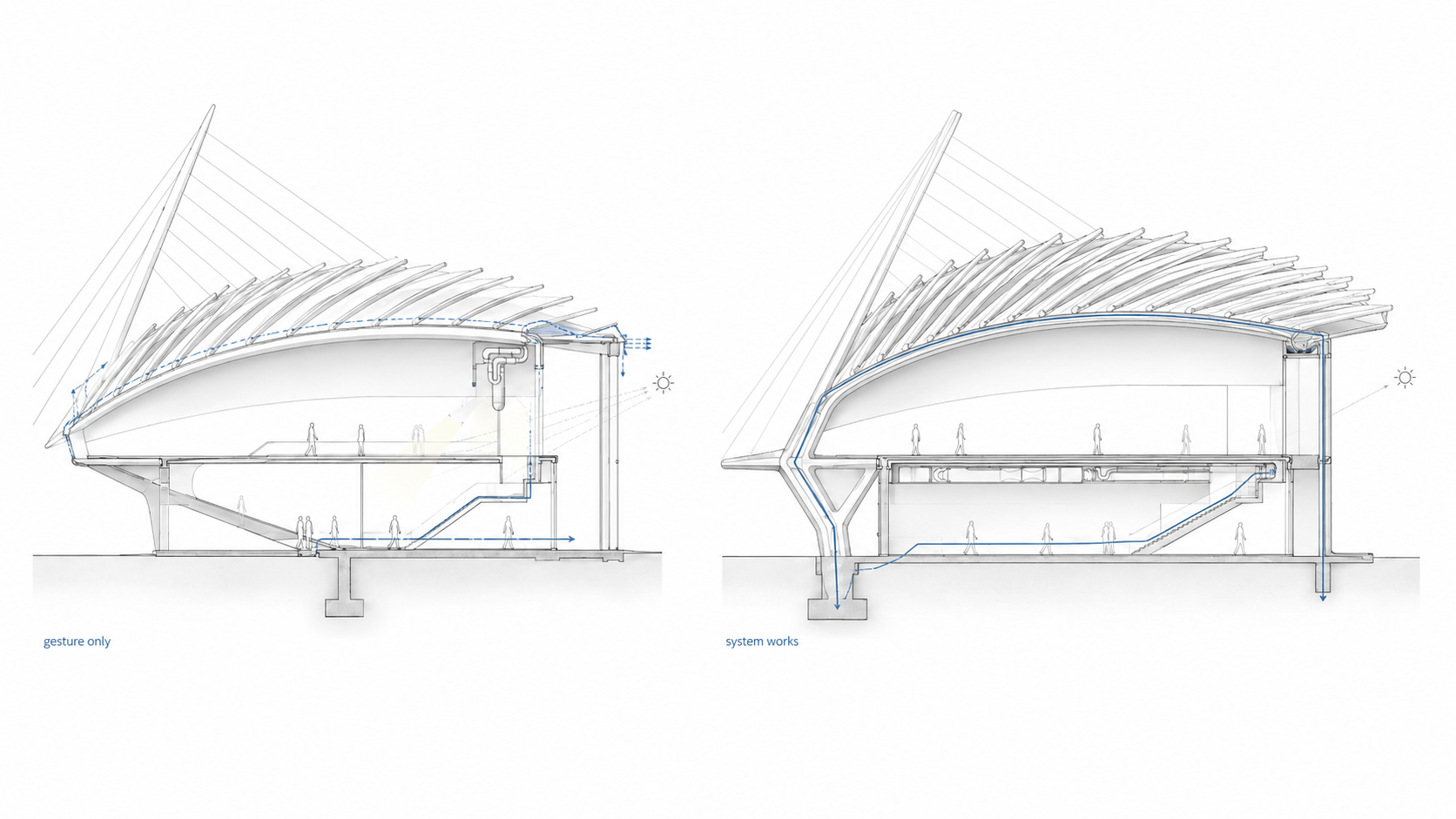

Illustration by ArchitectureCourses.org. Copying Calatrava’s ribs and sweeping forms without resolving load, drainage, services, glare, and circulation turns the architecture into gesture instead of a working system.
Students love Calatrava because the drawings feel alive. The danger is that the first thing they copy is usually the least useful thing: the shape.
Do not start with a white ribcage. Start with a force.
A bridge needs to cross. A station needs to move people. A museum needs light, arrival, galleries, structure, weather protection, and service access. A tower needs core logic, wind resistance, vertical services, cladding, fire strategy, and livable floor plates. The form should come after those pressures start arguing with each other.
If you want to learn from Calatrava, redraw one project three ways. First, draw the public route. Then draw the structural load path. Then draw the maintenance problem. The third drawing is where the romance usually gets corrected.
This is also where Calatrava becomes more useful than his fan pages. The work is about more than beauty. It is about what beauty costs when it has to stand up, move, shed water, carry people, and survive public ownership.
Books Worth Having
Calatrava’s work is unusually dependent on drawings, models, and construction photographs. A short article can explain the themes, but the books are where the process becomes clearer.
Worth reading: Santiago Calatrava: Complete Works 1979–Today is the better pick if you want a broad project record with strong visuals. It works best as a reference book for studio, precedent research, and visual comparison.
Also useful: Santiago Calatrava: Drawing, Building, Reflecting is stronger if you care about drawings, process, and the relationship between sketch, sculpture, and structure.
I would skip novelty “Calatrava-style” products unless they are clearly official or clearly educational. The serious value is in the drawings and project documentation, not in collecting a shape.
Calatrava Beside Other Famous Architects
Calatrava belongs in the famous architects cluster, but he should not be flattened into the same lane as everyone else.
Norman Foster and Calatrava both use engineering as architectural language. Foster usually makes systems feel clean, coordinated, and corporate. Calatrava makes structure feel bodily, symbolic, and dramatic.
Rem Koolhaas is almost the opposite comparison. Koolhaas is interested in program, congestion, media, and the strange logic of the modern city. Calatrava is interested in form under force.
Frank Lloyd Wright gives another useful contrast. Wright’s architecture is tied to land, house, plan, hearth, and organic continuity. Calatrava’s organic language is more skeletal, mechanical, and kinetic.
For broader placement, use Most Famous Modern Architects and Top 10 Famous Architects You Need to Know. Those pages should send readers here when they want the deeper Calatrava-specific explanation.
FAQ
What is Santiago Calatrava best known for?
Santiago Calatrava is best known for expressive bridges, transportation hubs, museums, towers, and civic buildings that combine architecture, engineering, sculpture, and movement. His best-known works include the Milwaukee Art Museum addition, Turning Torso, the World Trade Center Oculus, City of Arts and Sciences, and several major bridges.
Is Santiago Calatrava an architect or an engineer?
He is both. Calatrava trained as an architect in Valencia and later studied civil engineering at ETH Zurich, where he completed a doctorate in technical science.
What style is Santiago Calatrava known for?
His work is often linked to neo-futurism, high-tech architecture, biomorphic design, and expressive structural design. The simplest description is architecture shaped by movement and visible forces.
What is Calatrava’s most famous building?
There is no single answer. The Milwaukee Art Museum is probably his clearest kinetic building. Turning Torso is his most famous tower. The World Trade Center Oculus is his most visible American transportation project.
Why are Calatrava’s buildings controversial?
Some projects have been criticized for cost overruns, delays, leaks, difficult maintenance, or spectacle that seems to outweigh function. The criticism matters because his work often uses public money and complex custom construction.
What should architecture students learn from Calatrava?
Learn the relationship between form, structure, movement, and public symbolism. Do not copy the white ribs or twisting shapes first. Study the load path, section, movement system, drainage, maintenance access, and civic cost.
Can you visit Calatrava’s buildings?
Yes. Many of his best-known works are public buildings, bridges, stations, museums, and civic spaces. They are useful to visit because the experience of movement, scale, light, and circulation is hard to understand from photographs alone.
