Architecture depends on clear language. Drawings, specifications, site instructions, and studio conversations all use terms that carry precise meaning. When you understand those words, the work becomes easier to read and much easier to do.
Architectural Terms and Definitions
This dictionary brings together the terms you’ll meet in design school, construction documents, building sites, and everyday studio work. Each entry is short, practical, and written for fast use.
The goal is simple: you look up a term and immediately understand what it is, where it’s used, and why it matters in real projects. Over time the vocabulary becomes second nature, and the entire design process starts making more sense.
Architectural Dictionary for Beginners, Students, and Self Taught Designers
Fast, clear architectural dictionary with definitions of plans, sections, materials, and structures. Built for architecture students, builders, and curious homeowners.
1. Drawing Symbols & Notations
Architectural drawings depend on a visual language. Lines, symbols, markers, and tags replace long explanations and keep a sheet readable at a glance. Every break line, hatch, grid label, or section marker carries specific meaning, and the drawing falls apart if those signals are unclear or inconsistent. These symbols tell you what is being cut, where you’re looking, how big something is, and how it fits within the rest of the project. They guide orientation, scale, material interpretation, and sheet navigation. Once you know how to read them, a complex set of drawings becomes a precise map instead of a guessing game.
1A. Line Types (Core Drafting Signals)
Each line type visually communicates intent. A drawing is unreadable without them.

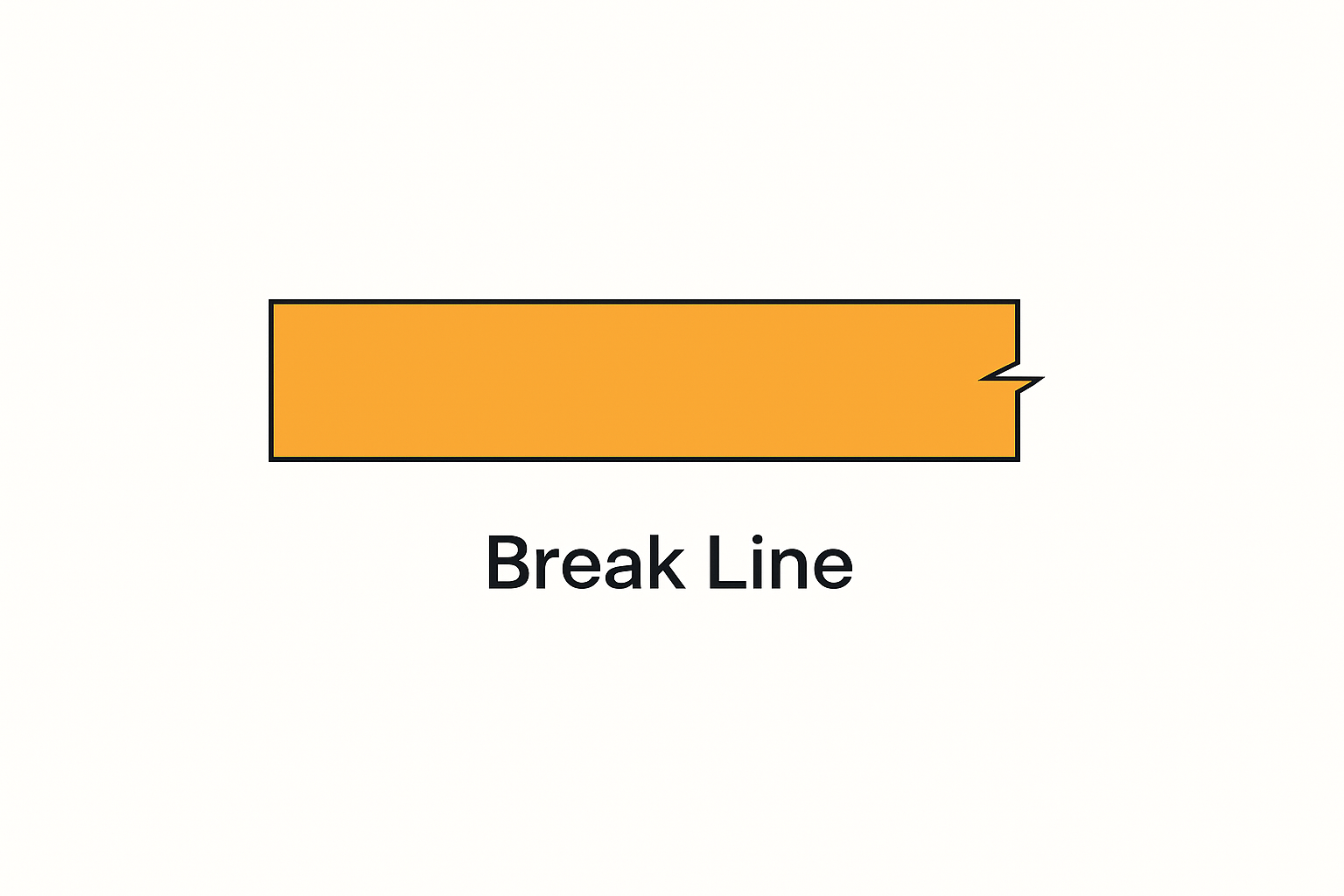

Break Line
Used when a portion of an object is intentionally removed to shorten the view or omit unneeded detail.
Center Line
Represents the center of circles, columns, shafts, grids, or symmetrical objects.
Hidden Line
Shows edges or features not visible in the current view (usually dashed).
Cutting Plane Line
Indicates where a section is taken; usually arrowed to show viewing direction.
Phantom Line
Shows alternate positions of objects or repetitive units.
Leader Line
Connects a note or dimension to the specific feature being described.
Object Line / Visible Line
Primary outline of objects; thickest continuous line.
Section Line / Hatch Pattern
Crosshatch inside cut regions, representing material type or cut-through surface.
Extension Line
Extends from an object to guide placement of a dimension.
Dimension Line
Carries the numerical measurement between extension lines.
Property Line / Boundary Line
Used in site plans to show legal lot limits.
1B. Drawing Identifiers & Orientation
These symbols tell the reader where they are and how to read the sheet.
North Arrow
Shows orientation of the project relative to true or project north.
Grid Line
Vertical/horizontal axes used to locate structural elements and dimensions.
Level Marker / Elevation Datum
Indicates finished-floor levels, slab heights, roof elevations.
Datum Point
Reference coordinate for all heights or dimensions on the project.
Reference Symbol
Points to another sheet, detail, or drawing for related information.
Key Plan
Small map showing the overall building with a highlighted area of the current drawing.
Orientation Marker
Sometimes used in site or urban drawings to show context relationships.
1C. View & Sheet Indicators
These symbols define what the viewer is looking at.
Elevation Marker
Indicates direction of an elevation view and references sheet number.
Section Marker / Section Callout
Shows the location and direction of a section cut.
Detail Bubble / Callout
Points to a specific detail drawing, usually with a circle and sheet reference.
Drawing Title / View Title
Provides view name, scale, and reference information directly below each drawing.
Drawing Sheet Number
Identifies the sheet in the drawing set; essential for navigation.
Title Block
Formal block containing project data, sheet number, date, revisions, designers, and firm info.
Revision Cloud
Marks changes since the last issue of the drawing.
Scale Bar
Graphical scale reference for manually measuring printed drawings.
1D. Annotations & Information Elements
These carry notes, instructions, or clarifications.
General Notes
Project-wide notes that apply to the full drawing set.
Material Tags
Short symbols referencing material types, finishes, or specifications.
Room Tags
Identify room name, number, area, and sometimes finish schedule links.
Door / Window Tags
Reference door and window schedules.
Finish Tags
Point to finishes for floors, walls, and ceilings.
Fixture Tags
Used for plumbing, mechanical, and electrical equipment.
Legend
Defines symbols, abbreviations, and patterns used on the sheet.
Abbreviations List
Explains shorthand used throughout the drawings.
1E. Scales & Measurement Tools
Scale indicators for interpreting dimensions.
Drafting Scale
Indicates the ratio between drawing size and real-world size.
Architect’s Scale
Specific measurement tool used in North America (imperial scales).
Engineer’s Scale
Used for civil drawings with decimal-based scales.
Scale Note
States the drawing scale in text form (e.g., “Scale 1:100”).
1F. Patterns, Fills, and Material Representation
Visual language for materials and surface treatments.
Hatch / Fill Pattern
Represents materials in section view (concrete, wood, brick, insulation).
Poche / Solid Fill
Used for walls, cut elements, or solid geometry representation.
Insulation Symbol
Zig-zag or batt pattern indicating thermal insulation.
Earth / Soil Fill Pattern
Used in foundation and site sections.
Concrete Fill Pattern
Dots or speckled pattern for cast concrete.
2. Structural Elements
Structural elements are the parts of a building that take loads, move them, and release them safely into the ground. Every wall, column, beam, slab, or footing exists for one reason: to keep the structure stable under weight, movement, and environmental forces. A building works only when these pieces act together. Foundations carry the loads into soil. Columns and walls take vertical forces. Beams and slabs move those loads sideways to where the structure can handle them. Bracing and shear systems stop the building from swaying in wind or shifting during an earthquake. Reinforcement inside concrete resists tension where the concrete would fail. Steel plates, bolts, and connections tie everything into one continuous system.
If you understand each element and how it behaves, you can read any structural drawing, judge whether a design is realistic, and understand why certain forms are possible while others collapse. Structural design is not guesswork. It’s the physics behind every architectural decision.
2A. Foundations & Below-Grade Components
Structural elements that carry loads into the soil.
Footing
The widened base that spreads column or wall loads to the soil.
Isolated Footing
Supports a single column or pier.
Combined Footing
Supports two or more columns where spacing is tight.
Strip / Wall Footing
Continuous footing supporting a wall.
Raft / Mat Foundation
Large slab supporting the whole building footprint.
Pile
Deep foundation element that transfers load to deeper soil/rock layers.
Pile Cap
Thick slab tying multiple piles together under a column.
Grade Beam
A reinforced beam at ground level spanning between footings or piles.
Ground Beam
Beam just above ground level supporting walls or distributing loads.
Plinth Beam
Reinforced beam at plinth height tying walls together, preventing settlement cracks.
Underpinning
Strengthening or stabilizing an existing foundation.
2B. Vertical Structural Members
Elements carrying vertical loads (compression-dominant).
Column
Vertical load-carrying element transferring loads to foundation.
Pier
Short, thick column often used in masonry or bridge supports.
Load-Bearing Wall
Wall that supports structural loads above.
Non-Load-Bearing Wall
Partition wall carrying only its own weight.
Shear Wall
Vertical plate resisting lateral forces from wind/quake.
Core Wall / Lift Core
Reinforced concrete core housing elevators and stairs, acting as a lateral system.
2C. Horizontal Structural Members
Beams and slabs that carry loads across spans.
Beam
Horizontal member supporting loads and transferring them to columns/walls.
Tie Beam
Horizontal member connecting columns at low levels to avoid buckling or spread.
Lintel
Beam spanning openings such as doors and windows.
Slab (One-Way or Two-Way)
Horizontal plate carrying loads to beams or walls.
Cantilever
A structural element projecting beyond support without back support.
Spandrel Beam
Beam at slab edge supporting façade or floor loads.
Ribbed Slab / Waffle Slab
Slab system with ribs to reduce weight while maintaining strength.
2D. Lateral, Bracing & Stability Systems
Elements resisting wind, seismic loads, sway, and drift.
Bracing
Diagonal members stabilizing frames against lateral movement.
Cross Bracing / X-Bracing
Two intersecting diagonal braces forming an X.
K-Bracing / V-Bracing
Special bracing geometries used in steel frames.
Moment Frame
Jointed frame resisting lateral forces through rigid beam-column connections.
Truss
Triangulated system used to span large distances with minimal material.
Space Frame
3D version of a truss; used for roofs and large halls.
2E. Steel Connection Components
Critical hardware in steel structures.
Gusset Plate
Steel plate where truss members or braces connect.
Base Plate
Steel plate anchoring a column to its foundation.
Anchor Bolts
Fasteners holding base plates to the concrete foundation.
Cleat / Angle Plate
Small steel angles connecting beams or joists.
End Plate
Plate welded to the end of a beam for bolted connections.
Splice Plate
Plate joining two pieces of steel beam or column.
2F. Reinforcement Components
Elements used inside reinforced concrete.
Reinforcement Bar (Rebar)
Steel rods providing tensile strength in concrete.
Stirrups / Ties
Small closed loops wrapping around reinforcement to resist shear and buckling.
Mesh Reinforcement
Welded wire mesh used in slabs and pavements.
Rebar Cage
Assembled reinforcement frame placed inside formwork.
Dowels
Short rebars transferring load between slabs or walls.
Development Length / Anchorage
Length required for rebar to develop full strength.
2G. Masonry Structural Units
Often forgotten, but essential.
Masonry Unit (Brick / Block)
Basic structural piece of a masonry wall.
Bond Beam
Reinforced concrete beam built into masonry walls.
Collar Joint
Vertical space between wythes filled with grout.
Reinforced Masonry Column / Pier
Grouted masonry with rebar, carrying loads.
2H. Roof Structural Systems
Major roof load-carrying elements.
Rafter
Sloped structural member supporting roofing material.
Purlin
Horizontal member supporting rafters or decking.
Truss (Roof)
Prefabricated triangular structure spanning wide spaces.
Decking
Structural sheathing placed over rafters or trusses.
3. Architectural Components
Architectural components are the physical parts that shape how a building looks and works. These are the pieces people touch every day: doors, windows, stairs, openings, roof edges, and the small details that guide light, movement, ventilation, and weather protection. Each component solves a specific problem. A stair connects levels. A sill sheds water. A parapet guards the edge of a roof. A canopy shields an entry from rain. Once you know these parts and how they fit together, you can read any building clearly and design with intention.
3A. Openings & Framing Elements
Elements that create controlled openings in walls and roofs.
Door
Moveable barrier providing entry and exit between spaces.
Window
Opening for light, views, and ventilation.
Ventilator
Small opening for air flow, often above doors or in walls.
Skylight
Roof opening for overhead daylight.
Dormer
Vertical window projecting from a sloped roof.
Bay Window
Projected window creating interior alcove and exterior shape.
Sill
Bottom horizontal member of a window or door opening; sheds water outward.
Head / Lintel Area
Top horizontal portion above an opening.
Jamb
Vertical sides of a door or window frame.
Threshold
Bottom transition piece at a doorway.
3B. Stairs & Vertical Movement
Parts that allow movement between levels.
Staircase
Series of steps connecting floors.
Tread
Horizontal surface you step on.
Riser
Vertical face between treads.
Landing
Flat platform between flights for rest or direction change.
Baluster
Vertical support under a handrail.
Handrail
Graspable rail for support and safety.
Newel Post
Main vertical post at the start or turn of a stair.
Stringer
Inclined structural support carrying the treads and risers.
3C. Roof Edge, Eaves & Overhead Elements
Components shaping the roof perimeter and protections.
Soffit
Underside of an overhang or projection.
Fascia
Vertical band at the roof edge supporting gutters.
Parapet
Low wall at the edge of a roof or terrace.
Cornice
Projecting decorative molding at the top of a wall or façade.
Canopy
Fixed overhead projection above an entry or walkway.
Awning
Lightweight fabric or metal projection providing shade and rain protection.
Pergola
Open-roof structure with beams and slats, used for shade and outdoor space.
3D. Wall Components & Exterior Detailing
Elements completing wall edges, surfaces, and transitions.
Plinth
Raised base of a building; protects walls from splash and moisture.
Ledge
Horizontal projection acting as a shelf or break in the wall plane.
Soffit (Interior or Exterior)
Underside of beams, arches, stairs, or roof projections.
Reveal
Setback edge around openings or frames.
Moulding / Trim
Profiles used to finish edges or transitions.
Junction Detail
Where materials or planes meet (floor-to-wall, wall-to-ceiling, etc.).
3E. Arches, Vaults & Special Forms
Traditional structural shapes that still define space.
Arch
Curved opening transferring load around the void.
Vault
Arched roof or ceiling formed by extended arches.
Dome
Curved roof formed by revolving an arch around its axis.
Oculus
Circular opening at the top of a dome or roof.
Buttress
Side-supporting mass resisting thrust from arches or vaults.
3F. Exterior Extensions & Shade Elements
Light structures projecting from the façade.
Pergola
Open-frame outdoor structure offering partial shade.
Awning
Light shading or rain-protection screen.
Canopy
More solid overhead protection at entries.
Veranda / Porch
Covered outdoor platform attached to a building.
Balcony
Projected platform accessible from upper floors.
4. Building Materials
Building materials determine how a structure performs, ages, and responds to climate, load, and use. Every choice—concrete mix, timber grade, insulation type, sealant class—changes durability and cost. Good design depends on knowing what each material does, where it works best, and how it reacts with other systems. This section collects the core materials used in foundations, structure, walls, finishes, waterproofing, and insulation. Once you understand these materials, drawings and specifications become easier to read and the construction process becomes far more predictable.
4A. Cementitious Materials
Materials that harden through hydration and form the backbone of modern construction.
Cement
Binding material used in concrete, mortar, and plaster.
Concrete
Composite of cement, aggregate, and water used for structural elements.
Mortar
Cement or lime mix used to bond bricks and blocks.
Grout
Fluid mix used to fill gaps, joints, and cavities in masonry or tile.
Screed
Thin cement layer used to level floors before finishing.
Plaster (Cement or Gypsum-based)
Finish coat on walls and ceilings.
Render
Exterior plaster layer protecting masonry walls.
4B. Aggregates & Fillers
Granular materials essential for concrete and site works.
Aggregate (Coarse & Fine)
Crushed stone, gravel, or sand used in concrete mixes.
Sand
Fine aggregate used in mortar, plaster, and bedding layers.
Gravel
Coarse aggregate used in concrete and drainage layers.
Crushed Stone
High-strength aggregate for structural concrete.
4C. Masonry Units
Solid modules forming load-bearing or partition walls.
Brick
Clay or concrete unit used for masonry walls.
Block (Concrete Block / CMU)
Larger masonry unit used for load-bearing or partition walls.
Stone
Natural material used for walls, cladding, and structure.
AAC Block (Autoclaved Aerated Concrete)
Lightweight block with thermal efficiency.
Clay Tile Block
Hollow fired units used in walls and floors.
4D. Metals & Structural Materials
High-strength materials for frames and details.
Steel
Primary structural metal for beams, columns, rebar, and connections.
Reinforcement (Rebar)
Steel rods embedded in concrete to resist tension.
Aluminum
Lightweight metal used for windows, cladding, and façade systems.
Copper
Used in roofing, flashing, and detailing.
Stainless Steel
Corrosion-resistant metal for fixtures and high-spec detailing.
4E. Timber & Engineered Wood
Wood-based materials for structure, interiors, and finish layers.
Timber (Softwood/Hardwood)
Natural wood used for framing and finishes.
Plywood
Engineered sheet made from cross-laminated wood veneers.
MDF / HDF
Medium or high-density fiberboard for furniture and interiors.
OSB (Oriented Strand Board)
Strand-based sheet used in sheathing and subfloors.
LVL / Glulam
Engineered structural timber for beams and columns.
4F. Glass & Façade Materials
Materials used in openings and cladding.
Glass
Transparent or translucent material for windows, skylights, and façades.
Tempered Glass
Safety glass used in doors, facades, and railings.
Laminated Glass
Two-layer glass with interlayer for safety and acoustics.
Cladding Panels (ACP, HPL, Fiber Cement)
Exterior skin materials for façades.
4G. Waterproofing & Protective Layers
Materials preventing water penetration and improving durability.
Waterproofing Membrane
Sheets or liquid-applied coatings preventing water ingress.
Bitumen
Sticky petroleum-based waterproofing and roofing material.
Sealant
Flexible material filling joints to prevent water and air leaks.
Primer
Base coat improving adhesion and sealing surfaces.
Paint
Protective and decorative coating for walls and ceilings.
4H. Insulation Materials
Materials enhancing thermal and acoustic performance.
Mineral Wool
Fibrous insulation with good fire resistance.
Rockwool
Type of mineral wool known for density and fire performance.
Foam Board (XPS / EPS)
Rigid thermal insulation for walls, floors, and roofs.
Spray Foam
Expanding insulation used for gaps and cavities.
Fiberglass Insulation
Common batt insulation for walls and ceilings.
4I. Flooring, Tiling & Adhesives
Surface materials and their bonding agents.
Tiles (Ceramic, Porcelain, Stone)
Durable surface material for floors and walls.
Tile Adhesives
Mortar-based or polymer-based bonding agents.
Grout (Tile Grout)
Fills gaps between tiles and seals joints.
Floor Screed
Creates a flat base for tile, wood, or vinyl flooring.
5. Construction Drawings & Documents
Construction drawings and documents are the communication system of a project. Plans show layout. Sections explain how materials meet. Engineering drawings coordinate structure and services. Schedules organize repetitive components. Specifications define performance and materials. Administrative documents control change, cost, and responsibility. A project only runs smoothly when all of these align. Once you understand each document’s role, a construction set becomes a predictable tool instead of a pile of confusing sheets.
5A. Core Architectural Drawings
Site Plan
Shows building location, boundaries, access, levels, landscape, drainage, and context.
Floor Plan
Horizontal cut showing rooms, structure, circulation, doors, windows, and dimensions.
Elevation
Exterior vertical view showing materials, proportions, openings, and façade details.
Section
Vertical cut showing internal relationships, heights, materials, and structural layers.
Detail Drawing
Close-up showing how components meet and how assemblies are built.
Working Drawing
Construction-ready drawing with full dimensions, notes, and references.
As-Built Drawing
Drawing updated after construction to show the exact built condition.
5B. Structural & Engineering Drawings
Structural Drawing
Details beams, columns, slabs, reinforcement, footings, and structural notes.
MEP Drawing
Coordinated mechanical, electrical, and plumbing layout for clash-free installation.
HVAC Layout
Ducts, air-handling units, diffusers, fans, equipment locations.
Electrical Plan
Power circuits, lighting layout, switches, cables, conduit, and panels.
Plumbing Plan
Water supply, drainage, venting, pipe sizes, slopes, fixtures.
Fire Protection Plan
Sprinklers, alarms, extinguishers, risers, safety routes.
Low-Voltage / Data Layout
Network, communications, security systems, and access control.
Shop Drawing
Fabricator or contractor drawings showing how items will be built (steel, joinery, HVAC).
5C. Schedules
Finishing Schedule
Lists interior finishes per room: floors, walls, ceilings, trims.
Door Schedule
Sizes, types, materials, hardware, and fire ratings for all doors.
Window Schedule
Dimensions, glazing type, frame material, and operation details.
Hardware Schedule
Hardware sets for each door and opening.
Lighting Schedule
Fixture types, mounting, wattage, and control information.
5D. Specifications & Quantity Documents
Material Specification Sheet
Describes materials, performance criteria, finishes, and standards.
Construction Specification
Comprehensive document defining workmanship, standards, and technical requirements.
Bill of Quantities (BOQ)
List of quantities and costs for all major building elements, used for tendering.
Tender Document
Complete package inviting contractor bids; includes drawings, BOQ, and contract terms.
Method Statement
Step-by-step description of how a construction activity will be carried out safely and correctly.
Inspection & Test Plan (ITP)
Defines checks and testing procedures for structural, MEP, and finishing work.
5E. Approvals, Coordination & Administrative Documents
Shop Drawing Approval
Architect/engineer approval that the contractor’s shop drawings meet design intent.
RFI (Request for Information)
Formal request used when drawings or specifications need clarification.
Change Order / Variation Order
Document approving changes to design, scope, or cost.
Inspection Report
Record of site inspections, compliance checks, and deficiencies.
Daily Log Sheet
On-site record of labor, equipment, weather, and work completed.
Site Report / Progress Report
Periodic report documenting construction progress and issues.
Construction Schedule / Gantt Chart
Timeline outlining sequence and duration of construction tasks.
Quality Assurance Document
Procedures and forms ensuring work meets required quality standards.
6. Design Concepts & Theories
Design concepts shape how space works, feels, and communicates. These ideas guide the arrangement of forms, proportions, movement, light, and structure. They help you understand why a building feels balanced or chaotic, why a plan works or fails, and why certain compositions hold together. When you understand these concepts, your design decisions become intentional instead of accidental. This section covers the core principles used in studios and real architecture practice.
6A. Composition Principles
Axis
A straight organizing line for space or elements.
Balance
Distribution of visual or spatial weight.
Symmetry
Mirror-like equality across an axis.
Asymmetry
Intentional imbalance to create interest.
Proportion
Relationship between parts and the whole.
Scale
Size relative to the human body or surroundings.
Rhythm
Repetition that creates movement.
Harmony
Coherent fit between design elements.
Contrast
Strong differences used for emphasis.
Unity
Sense of completeness across the design.
6B. Spatial Organization
Circulation
Paths people take through a building.
Spatial Flow
How spaces connect, open, compress, or expand.
Hierarchy
Levels of importance among spaces.
Sequence
The planned order of spatial experiences.
Transition
Shift between spaces or conditions.
6C. Form and Geometry
Form
Physical shape or geometry.
Massing
Overall volume and three-dimensional shape.
Void
Empty space defining or shaped by form.
Solid–Void Relationship
Balance between built form and open space.
Figure–Ground
Relationship between built shapes and empty space.
Transparency
Ability to see through or understand layers of space.
Opacity
Boundary that blocks view or separates spaces.
Layering
Arranging planes or forms to create depth.
6D. Context and Site
Orientation
Position relative to sun, wind, views, climate.
Context
Surrounding physical and cultural environment.
Genius Loci (Sense of Place)
Character and atmosphere of a location.
Site Response
Design decisions shaped by topography, climate, and surroundings.
6E. Function and Typology
Form and Function
Relationship between use and shape.
Program
Required spaces and uses of a building.
Typology
Classification of buildings by form or use.
Adaptability
Ability of a space to change over time.
Flexibility
Ease with which a space supports multiple uses.
6F. Human Experience
Human Scale
Design tuned to human proportions.
Light and Shadow
Use of light to shape perception and atmosphere.
Depth
Spatial layering that creates visual distance.
Threshold
Point where one space transitions to another.
7. Site & Foundation Work
Site and foundation work prepares the ground, stabilizes the soil, sets levels, and builds the structural base of a building. This phase decides how stable, dry, and durable the entire structure will be. Good site work avoids settlement, cracking, moisture problems, and structural failure. This section covers the core tasks used on construction sites before and during foundation building.
7A. Site Preparation
Excavation
Removal of soil to required depth for foundations or basements.
Backfilling
Placing soil back into excavated areas around foundations.
Compaction
Densifying soil using rollers, rammers, or plates to improve strength.
Grading
Shaping ground levels to achieve proper slopes and drainage.
Benchmarks
Fixed reference points that define site elevation and layout.
Trenching
Narrow excavations for footing strips, utilities, and drainage lines.
Dewatering
Removing groundwater from excavation areas to keep the site workable.
7B. Soil & Stability
Soil Bearing Capacity
Maximum load soil can safely support.
Retaining Structure
Walls or systems holding back soil to prevent collapse.
Shoring
Temporary supports preventing excavation sides from caving in.
Geotextile
Fabric placed under soil to stabilize ground and improve drainage.
Compaction Test
Field test ensuring soil reaches required density.
7C. Foundation Components
Pile Cap
Thick slab connecting piles and distributing loads.
Raft Foundation (Mat)
Large thick slab supporting the entire building footprint.
Blinding Layer
Thin concrete layer providing a clean base for reinforcement.
PCC (Plain Cement Concrete)
Non-reinforced concrete used below footings for levelling.
Rebar Cage
Steel reinforcement cage placed inside footings or piles.
Footing Formwork
Temporary molds shaping concrete footings.
Plinth Protection
Concrete or paving around the building to keep water away from walls.
DPC (Damp Proof Course)
Layer preventing rising moisture through walls and floors.
7D. Drainage & Moisture Control
French Drain
Gravel trench with perforated pipe to redirect groundwater.
Sump Pit
Collection pit for groundwater pumped during construction.
Waterproofing Membrane
Barrier preventing water from entering foundation walls or slabs.
8. Construction Methods & Systems
Construction methods and systems define how a building is assembled, what materials carry the load, and how fast or durable the final structure will be. Every method has its own workflow, equipment, advantages, and limitations. Understanding these systems helps you choose the right structure, estimate timelines, and prevent construction errors. This section covers the main techniques used in residential, commercial, and industrial projects.
8A. Structural Systems
RCC (Reinforced Cement Concrete)
Concrete strengthened with steel reinforcement to handle tension and compression.
Precast Concrete
Concrete components cast off-site and assembled on-site for speed and quality control.
Post-Tensioning
Concrete strengthened by tensioned steel tendons after the concrete sets.
Steel Frame
Structure made of steel beams and columns forming a high-strength skeleton.
Timber Frame
Structural system using heavy timber or engineered wood beams and posts.
Load Bearing Construction
Walls carry the structural load instead of columns and beams.
Composite Construction
Combination of materials (steel + concrete, timber + steel) for performance or economy.
Masonry Construction
Bricks or blocks bonded with mortar to form structural or non-structural walls.
8B. Prefabrication & Industrialized Systems
Prefabrication
Building components manufactured off-site and assembled on-site.
Modular Building
Entire volumetric units built off-site and craned into place on-site.
Light Gauge Steel System (LGSF)
Thin steel sections assembled into frame systems for fast construction.
ICF (Insulated Concrete Forms)
Hollow foam blocks filled with concrete for structural and insulation performance.
8C. Temporary Works & Site Systems
Formwork
Temporary molds used to shape freshly poured concrete.
Scaffolding
Temporary platforms to reach elevated work areas.
Centering & Shuttering
Supports and forms used for arches, domes, beams, and slabs.
Shoring
Temporary supports to stabilize excavations or structures during construction.
Bracing
Diagonal supports stabilizing frames, formwork, or scaffolding.
8D. Construction Processes
Reinforcement Detailing
Arrangement of steel bars, stirrups, laps, and bends to meet structural design.
Curing
Maintaining moisture and temperature to let concrete gain strength.
Finishing
Final surface treatments such as plastering, grinding, polishing, or painting.
Masonry Bond Types (English, Flemish, Header, Stretcher)
Patterns of laying bricks to improve strength, stability, and appearance.
Jointing
Finishing the mortar joints for protection and appearance.
Grouting
Filling voids around reinforcement or base plates with high-strength material.
9. Finishing & Interior Elements
Finishing and interior elements shape what people actually see and touch. These materials and components define the final look, comfort, acoustics, and lighting quality inside a building. This section covers the essential elements used to complete interiors in residential and commercial projects.
9A. Surface Finishes
Flooring
Final surface material applied to floors such as tile, wood, vinyl, or stone.
Skirting
Strip installed at the joint between wall and floor to protect walls and hide gaps.
Wall Cladding
Exterior or interior wall covering made from stone, tile, panels, or composite materials.
Paint Finish
Coating applied to walls and ceilings for color and protection.
Texture Finish
Decorative surface treatment giving walls depth and pattern.
Veneer
Thin slice of real wood bonded to a base material for premium appearance.
Laminate
Factory-made sheet with printed or textured finish used on furniture and wall panels.
Wallpaper
Decorative paper or vinyl sheet applied to walls for pattern and color.
9B. Ceiling Systems
False Ceiling
Secondary ceiling suspended below the structural slab for lighting, HVAC, and acoustic control.
Cornice Moulding
Decorative trim installed at the wall–ceiling junction.
9C. Electrical Fixtures
Lighting Fixture
Installed luminaire providing general, task, or accent lighting.
Switchboard
Panel containing switches to control lighting or fans.
Socket
Electrical outlet providing power access for appliances and devices.
9D. HVAC Interior Elements
HVAC Diffuser
Ceiling or wall-mounted element distributing conditioned air evenly into a room.
Duct Grille
Metal or plastic cover placed over ducts for air intake or exhaust.
10. Building Services
Building services keep a building functional, safe, and comfortable. These systems manage water, waste, electricity, air movement, fire safety, and energy. A good design integrates all services so they work smoothly without clashing with structure or interiors.
10A. Water & Waste Systems
Plumbing
Pipes and fixtures that supply water and remove waste.
Water Supply System
Network bringing clean water into the building under pressure.
Drainage System
Pipes that carry wastewater from fixtures to the sewer line.
Sewage Treatment Plant
System that treats wastewater on-site before reuse or discharge.
Greywater Recycling
Reusing water from sinks, showers, and laundry for flushing or irrigation.
Rainwater Harvesting
Collecting and storing rainwater for reuse.
10B. Electrical Systems
Electrical Wiring
Network of cables and conduits supplying power throughout the building.
Switchgear
Equipment controlling, protecting, and isolating electrical circuits.
Lighting Layout
Plan showing placement of lights, circuits, and control systems.
10C. Fire & Life Safety
Fire Alarm System
Network of detectors, alarms, and panels that identify fire and alert occupants.
Fire Sprinkler
Automatic water discharge system activated by heat to suppress fire.
10D. Mechanical & Smart Systems
HVAC
Heating, ventilation, and air-conditioning systems that control temperature and air quality.
Solar Panel
Panels converting sunlight into electricity for building use.
Smart Building Systems
Sensors and automated controls managing lighting, temperature, security, and energy use.
11. Architectural Styles & Periods
Architectural styles describe how buildings look, how they are organized, and what ideas shaped them. Each style comes from a historical moment, a set of materials, and a cultural attitude. This section outlines major global styles used in design education and professional reference.
11A. Classical to Pre-Modern
Classical Architecture
Style based on Greek and Roman orders, symmetry, columns, and proportion.
Gothic
Vertical, pointed arches, ribbed vaults, and light-filled interiors.
Renaissance
Return to classical proportion, geometry, perspective, and symmetry.
Baroque
Dynamic shapes, dramatic curves, and rich ornament.
Neoclassical
Simplified classical vocabulary with strong symmetry and monumental scale.
11B. Modern Movements
Modernism
Functional, minimal forms emphasizing structure and materials.
Bauhaus
Modernist style focused on simplicity, industrial materials, and rational design.
Brutalism
Massive concrete forms, rough textures, and exposed structure.
Postmodernism
Playful mix of historical references, color, and symbolism.
Deconstructivism
Fragmented forms, irregular geometry, and non-linear compositions.
Minimalism
Pure forms, simple lines, and reduction of detail.
11C. Decorative & Cultural Styles
Art Deco
Geometric patterns, strong lines, and luxurious materials.
Vernacular
Local building traditions adapted to climate, culture, and materials.
11D. Contemporary Approaches
Sustainable / Green
Design focused on low energy use, ecological materials, and environmental performance.
Contemporary
Current design trends using mixed materials, clean forms, and new technologies.
12. Codes, Standards, and Legal
Codes and legal standards control how buildings are designed, built, and approved. They ensure safety, accessibility, environmental performance, and compliance with local rules. Understanding these codes helps architects avoid delays, violations, and redesign during permitting.
12A. Local Building Control
Building Code
Set of safety and construction rules governing structure, fire protection, and health standards.
Zoning
Regulations controlling land use, building size, height, density, and permitted activities.
FAR (Floor Area Ratio)
Ratio of total building floor area to site area determining allowed building size.
Setback
Minimum required distance between the building and property boundaries.
Building Permit
Official approval allowing construction to start after plans meet code requirements.
Occupancy Certificate
Document confirming a building is safe and ready for use.
12B. Safety, Environment, and Performance
Fire Safety Code
Standards governing fire protection, alarms, exits, and suppression systems.
Accessibility Code
Rules ensuring buildings are usable by people with disabilities.
Energy Efficiency Code
Requirements for insulation, HVAC, lighting, and energy consumption.
Environmental Regulations
Standards related to waste, emissions, water use, and ecological impact.
12C. Industry Standards and Professional Bodies
ISO Standards
International standards ensuring quality, safety, and performance.
ASTM Standards
Material and testing standards used for construction components.
NAAB / RIBA / NCARB
Professional accreditation and licensing bodies for architects.
13. Site Planning & Urban Design
Site planning and urban design organize land, movement, microclimate, and open space. These elements shape how people move, how buildings sit on the land, and how services function across a site. Good planning reduces conflicts, improves comfort, and links the project to its surroundings.
13A. Site Boundaries & Legal Layout
Plot
The defined piece of land allocated for development.
Easement
Legal right allowing access or use of part of a property for utilities or services.
Boundary
Legal perimeter line marking the limits of a property.
Setback Line
Line beyond which no permanent building can be constructed.
13B. Access, Roads & Movement
Road Width
Approved width of a road affecting traffic flow and access.
Right of Way
Legal passage allowing roads, utilities, or public access.
Pedestrian Path
Dedicated walkway for safe foot movement through the site.
Circulation Network
System of vehicle, pedestrian, and service routes across a site.
Parking Layout
Arrangement of parking spaces, drive aisles, and entry/exit points.
Service Yard
Designated space for waste handling, loading, and building services.
13C. Site Environment & Physical Conditions
Site Orientation
Direction a site faces relative to sun, wind, and views.
Microclimate
Local climate conditions created by shade, vegetation, wind, and nearby structures.
Topography
Natural ground levels, slopes, and contours influencing building placement.
Drainage Pattern
Natural or planned flow of surface water across a site.
13D. Landscape & Open Space
Landscape
Planned outdoor areas using plants, paving, and terrain shaping.
Green Belt
Land preserved for vegetation to control density, improve environment, or buffer development.
14. Sustainability & Building Science
Sustainability and building science deal with how buildings use energy, handle heat, control moisture, and reduce environmental impact. These concepts shape comfort, durability, and long-term performance. Good design reduces energy use, improves indoor conditions, and lowers cost over the building’s life cycle.
14A. Thermal Performance
U-Value
Measure of heat loss through a building element; lower means better insulation.
R-Value
Measure of thermal resistance; higher values slow heat transfer.
Thermal Mass
Material’s ability to store and release heat to stabilize indoor temperatures.
Solar Gain
Heat from sunlight entering a building through openings or surfaces.
Embodied Energy
Total energy used to extract, manufacture, and transport building materials.
14B. Passive Environmental Strategies
Passive Design
Design approach using orientation, shading, massing, and openings to reduce energy use.
Natural Ventilation
Airflow driven by wind or temperature differences without mechanical systems.
Daylighting
Use of natural light to illuminate spaces while controlling glare and heat.
Shading Device
Architectural elements blocking excessive sun while allowing daylight.
Building Envelope
All components separating inside from outside, affecting heat, air, and moisture flow.
14C. Energy & Resource Efficiency
Energy Modeling
Simulation predicting building energy use for HVAC, lighting, and envelope performance.
Water Efficiency
Strategies that reduce potable water use inside and outside the building.
Recycled Material
Materials produced from previously used resources to reduce environmental impact.
Net Zero
Building that produces as much energy as it consumes yearly.
Carbon Footprint
Total greenhouse gas emissions from building materials, construction, and operation.
Life Cycle Assessment (LCA)
Evaluation of environmental impact from material extraction through disposal.
14D. Certifications & Performance Standards
LEED / BREEAM / IGBC
Green building rating systems measuring sustainability across energy, water, materials, and indoor quality.
Thermal Bridging
Loss of heat through conductive materials bypassing insulation layers.
Air Tightness
Measure of uncontrolled air leakage through the building envelope.
Moisture Control
Strategies preventing mold, condensation, and material decay.
Vapor Barrier
Layer controlling the movement of water vapor through walls and roofs.
15. Architectural Software & Tools
Architectural software and tools support modeling, documentation, visualization, environmental analysis, coordination, and digital fabrication. These tools shape how architects design, represent ideas, and manage construction information.
15A. Drafting, Modeling & BIM
AutoCAD
2D drafting software used for plans, sections, elevations, and technical drawings.
Revit
BIM platform for coordinated modeling, documentation, and clash-free design.
SketchUp
Quick 3D modeling tool for massing, concepts, and early-stage design.
Rhino
NURBS-based modeling software for advanced geometry and precision surfaces.
Grasshopper
Visual programming tool inside Rhino for parametric and generative design.
ArchiCAD
Architect-focused BIM software used for modeling and documentation workflows.
Civil 3D
Software for site grading, topography, corridors, and civil infrastructure design.
Navisworks
BIM coordination tool used for clash detection and project integration.
BIM (Building Information Modeling)
Data-rich digital building model used for design, coordination, and lifecycle management.
15B. Rendering, Visualization & Graphics
Lumion
Real-time rendering tool for quick high-quality visualizations.
Twinmotion
Real-time renderer known for speed and easy environment creation.
D5 Render
Fast photorealistic renderer optimized for architectural workflows.
V-Ray
High-quality rendering engine for photorealistic images and animations.
Enscape
Real-time renderer integrated directly into BIM and modeling platforms.
Photoshop
Editing tool for post-processing renders, diagrams, and presentations.
Illustrator
Vector graphics tool for diagrams, icons, maps, and clean line graphics.
InDesign
Layout software for portfolios, reports, and presentation documents.
15C. Environmental Analysis & Simulation
Energy Modeling Tools (Insight, IES, OpenStudio)
Used to simulate HVAC loads, energy performance, and building efficiency.
Ladybug / Honeybee
Environmental plugins for Rhino/Grasshopper used for daylight, sun, climate, and energy studies.
Ecotect
Legacy environmental analysis tool still referenced in studios for conceptual studies.
15D. Digital Fabrication & Site Technology
3D Printing
Additive manufacturing used to create physical models from digital files.
Laser Scanning
High-accuracy 3D capture of existing buildings and sites using LiDAR.
Disto Laser Measure
Handheld laser device used for fast site measurements and as-built verification.
Bluebeam
PDF markup tool used for reviewing drawings, tracking changes, and measuring.
16. Construction Equipment & Tools
Construction equipment and tools support excavation, concrete work, measurement, lifting, cutting, transportation, and site safety. These tools affect accuracy, speed, and the overall quality of the built structure.
16A. Concrete & Masonry Tools
Concrete Mixer
Machine that mixes cement, sand, aggregate, and water into concrete.
Vibrator
Tool used to remove air pockets and compact freshly poured concrete.
Trowel
Hand tool for spreading and smoothing mortar or plaster.
Float
Flat tool used to level and finish concrete surfaces.
Screed Board
Straight board used to level concrete to the required height.
Chisel and Hammer
Basic tools for shaping, cutting, and removing masonry.
Rebar Cutter
Tool for cutting steel reinforcement bars.
Bucket / Wheelbarrow
Used to transport small quantities of concrete, mortar, and debris.
16B. Measurement & Surveying Tools
Measuring Tape
Flexible scale used for all layout and measurement tasks.
Spirit Level
Tool confirming horizontal or vertical alignment.
Laser Level
Device projecting laser lines for accurate leveling and alignment.
Chalk Line
Tool used to mark straight layout lines on surfaces.
Plumb Bob
Weight used to establish a true vertical line.
Theodolite
Optical instrument for measuring angles.
Total Station
Electronic surveying tool combining angles, distance, and coordinates.
16C. Heavy Equipment & Power Tools
Dump Truck
Vehicle used to transport sand, gravel, soil, and demolition waste.
Excavator
Machine used for digging, demolition, and lifting.
Backhoe Loader
Versatile machine combining excavator and loader functions.
Wheel Loader
Machine used for loading materials into trucks.
Crane
Equipment used to lift and move heavy materials.
Drill Machine
Tool used for drilling holes and fixing anchors.
Angle Grinder
Power tool for cutting, grinding, and polishing metal or masonry.
Cutting Machine (Tile/Marble Cutter)
Tool for precise cutting of tiles, marble, and stone.
16D. Access, Lighting & Safety
Scaffolding
Temporary structure providing work platforms at height.
Scaffold Planks
Boards used on scaffolding platforms for safe footing.
Ladder
Portable tool for accessing elevated areas.
Work Lights
Temporary lighting used in low-light or night work conditions.
Safety Gear (Helmet, Harness, PPE)
Equipment that protects workers from site hazards.
Barricades / Safety Cones
Used to mark restricted areas and guide safe movement.
17. Measurement & Survey
Measurement and survey work determine ground levels, building positions, contours, and distances. Accurate survey information prevents errors in layout, excavation, and structural placement. This section includes the tools and methods used in architectural, civil, and construction surveys.
17A. Survey Principles & Reference Points
Scale
Ratio used to represent real-world measurements on drawings.
Dimension
Numerical measurement of length, width, height, or depth.
Elevation Datum
Reference level from which all site heights are measured.
Benchmark
Permanent reference point used to establish elevations on-site.
Spot Level
Recorded elevation at a single specific point.
Offset
Horizontal distance measured perpendicular from a survey line.
String Line
Tensioned line used to mark straight layout lines.
17B. Survey Instruments & Techniques
Chain Survey
Basic method using measuring chains or tapes for short distances and small sites.
Total Station
Electronic instrument measuring angles, distances, and coordinates.
Theodolite
Optical instrument for measuring horizontal and vertical angles.
GPS Survey
Survey using satellite positioning for large areas and high-accuracy coordinates.
Auto Level (Dumpy Level)
Instrument used to find level differences between points.
Leveling Staff
Graduated rod used with leveling instruments to measure height differences.
Laser Distance Meter
Handheld tool for quick, accurate linear measurements.
GIS (Geographic Information System)
System for mapping, analyzing, and managing spatial data.
17C. Survey Drawings & Site Representation
Contour
Line connecting points of equal elevation on a map.
Cross-Section
Vertical cut showing ground profile perpendicular to a road or feature.
Longitudinal Section
Vertical section showing ground profile along a road, pipe, or site line.
Topographic Survey
Detailed survey mapping contours, features, utilities, and site conditions.
As-Built Survey
Survey verifying actual built positions, levels, and dimensions after construction.
18. Professional Practice
Professional practice covers the full life cycle of an architectural project: securing the client, planning the design stages, coordinating consultants, supervising construction, and closing out the project. These activities ensure design intent, legal compliance, cost control, and quality.
18A. Project Initiation & Design Stages
Client Brief
Document describing client needs, goals, spaces, and functional requirements.
Feasibility Study
Early analysis of budget, site conditions, codes, and project viability.
Concept Design
Initial ideas exploring form, massing, layout, and design direction.
Schematic Design
Refined plans, sections, elevations, and early engineering input.
Design Development
Detailed design including structure, materials, MEP layouts, and coordination.
Construction Documents
Complete technical drawings and specifications used for permitting and construction.
18B. Procurement, Contracts & Cost
Tendering
Process of inviting contractors to price the project based on drawings and specs.
Bid Evaluation
Reviewing contractor bids for cost, compliance, and capability.
Contract Administration
Managing the contract during construction, including claims, payments, and compliance.
Value Engineering
Adjusting materials or methods to reduce cost without losing function.
Change Order
Formal document approving design or scope changes that affect cost or time.
18C. Construction Phase Services
Site Supervision
Checking progress, quality, alignment, safety, and compliance on site.
Consultant Coordination
Aligning structural, MEP, landscape, and specialist drawings with architectural intent.
RFI (Request for Information)
Contractor request for clarification when drawings or specs are unclear.
Site Instruction
Written directive issued by the architect for corrections or clarifications on site.
Shop Drawing Review
Architect’s review of contractor or fabricator drawings before fabrication.
Mock-Up Review
Inspection of sample installations or materials before full execution.
Progress Payment Certificate
Architect’s approval for contractor payment based on completed work.
18D. Completion, Handover & Post-Construction
Punch List
List of incomplete or defective items to be corrected before handover.
Substantial Completion
Milestone when the building is ready for occupancy except for minor items.
Final Completion
When all punch list and outstanding work is completed.
Defects Liability Period
Period after completion during which the contractor must fix defects.
Project Closeout
Final submission of warranties, manuals, as-builts, and certificates.
19. Building Types
Building types classify projects based on use, function, and occupancy. Each type has its own codes, structural needs, circulation patterns, and service requirements. Understanding building types helps guide planning, design standards, and engineering strategies.
19A. Residential
Residential
Housing units including single-family homes, apartments, and townhouses.
Low-Rise
Residential buildings up to a few stories with simple circulation and services.
High-Rise
Tall residential towers requiring elevators, fire cores, and advanced systems.
Skyscraper
Very tall buildings with specialized structural systems and life safety design.
19B. Commercial & Mixed-Use
Commercial
Buildings used for retail, offices, restaurants, and services.
Mixed-Use
Combined residential, commercial, or institutional functions in one building.
Public Building
Facilities serving the public such as auditoriums or community centers.
Civic Building
Government-related structures like city halls or courthouses.
Mall / Retail Center
Large commercial complex for shops and public activity.
Office Building
Spaces for workstations, business operations, and corporate functions.
19C. Institutional & Specialized
Institutional
Buildings for education, health, culture, or government.
School
Educational facility with classrooms, labs, and activity spaces.
Hospital
Healthcare building with strict zoning, services, and mechanical needs.
Museum
Exhibition and cultural space requiring controlled environment and circulation.
Library
Information and reading spaces with quiet zones, stacks, and study areas.
Religious Building
Places of worship such as mosques, churches, or temples.
University / Campus
Higher education facilities including academic and student buildings.
19D. Transportation & Large Public Infrastructure
Airport
Complex terminal building combining circulation, security, and transport systems.
Stadium
Venue designed for sports, events, and large crowds with tiered seating.
Transit Station
Rail, metro, or bus stations requiring clear movement and safety zones.
Parking Structure
Multi-level facility designed for vehicle storage and circulation.
19E. Industrial & Utility
Industrial
Manufacturing, warehousing, and production facilities.
Factory
Building used for industrial fabrication processes.
Warehouse
Large storage facility for goods and logistics.
Data Center
Building with high electrical load and cooling requirements for servers.
Power Plant
Facility generating electricity with heavy industrial systems.
20. Architectural Theories & Movements
Architectural theories and movements describe the ideas, values, and design philosophies that shaped architecture across history. They influence how architects think about form, space, context, and society. These movements guide design decisions and reflect cultural, political, and technological shifts.
20A. Modern & Post-War Ideas
Functionalism
Design driven by purpose, efficiency, and use. Form follows function.
Formalism
Focus on pure form, geometry, and composition over social context.
Organic Architecture
Buildings integrated with nature, materials, and site logic.
Expressionism
Emotional, sculptural forms reflecting movement or inner ideas.
Structuralism
Architecture shaped by social structures, patterns, and human relationships.
Constructivism
Industrial aesthetics, bold geometry, and machine-age influence.
High-Tech Architecture
Structure and services exposed as design elements.
Brutalism
Raw concrete, honesty of materials, and monumental forms.
Metabolism
Japanese post-war movement pushing modular, expandable megastructures.
Minimalism
Reduction, clarity, and essential elements with controlled material palettes.
20B. Late-Modern & Contemporary Movements
Postmodernism
Playful forms, historical references, and rejection of strict Modernist rules.
Deconstructivism
Fragmented forms, non-linear geometry, and visual instability.
Parametricism
Computational design using algorithms, smooth surfaces, and relational rules.
Neo-Futurism
Bold, fluid, forward-looking designs aligned with new materials and tech.
Critical Regionalism
Modern design adapted to local climate, culture, and materials.
Sustainable / Green Architecture
Design aimed at reducing environmental impact and resource use.
Biophilic Design
Architecture integrating natural systems, light, and greenery for well-being.
20C. Urban & Social Theories
New Urbanism
Walkable neighborhoods, mixed-use planning, and human-scale streets.
Landscape Urbanism
Landscape systems guiding urban form and infrastructure.
Social Architecture
Design focused on community needs, equity, housing, and public life.
Adaptive Reuse Theory
Transforming old buildings with new programs instead of demolishing.
21. Common Construction Defects & Issues
Construction defects come from poor workmanship, incorrect detailing, material failure, or site conditions. These issues affect structural performance, waterproofing, durability, and finishing quality. Knowing defects helps diagnose problems early and avoid expensive repairs.
21A. Structural & Concrete Defects
Settlement Crack
Cracks caused by uneven soil movement or foundation settlement.
Honeycombing
Void pockets in concrete due to poor compaction.
Spalling
Surface concrete breaking off from moisture, freeze–thaw, or corrosion.
Corrosion
Rusting of reinforcement leading to cracking and loss of strength.
Delamination
Concrete layers separating due to improper curing or contamination.
Crazing
Fine surface cracks from rapid drying or weak surface mortar.
Cold Joint
Weak bond between two concrete pours not placed continuously.
Bleeding
Water rising to the surface, weakening the top layer.
Segregation
Aggregate separating from cement paste during placement.
Uneven Settlement
Differential soil movement causing cracked floors, beams, and walls.
21B. Moisture, Waterproofing & Envelope Failures
Dampness
Moisture rising through walls or floors from poor damp-proofing.
Leakage
Water penetration through roofs, joints, or plumbing failures.
Efflorescence
White salt deposits on masonry from water movement through pores.
Water Infiltration
Water entering through facade gaps, windows, or faulty flashing.
Condensation
Moisture buildup from poor insulation or ventilation.
Mold Growth
Fungal growth from trapped moisture and poor air movement.
Roof Ponding
Standing water on flat roofs causing leaks and membrane failure.
21C. Material, Finishing & Installation Defects
Warping
Twisting of timber or panels due to moisture or improper storage.
Cracking in Finishes
Hairline or structural cracks in plaster, tiles, or drywall.
Tile Debonding
Tiles lifting from poor adhesive, moisture, or substrate movement.
Paint Failure
Peeling, blistering, or chalking from poor prep or humidity.
Misalignment
Doors, windows, or tiles installed out of level or plumb.
Poor Grouting
Hollow joints, cracks, or moisture penetration from weak grout.
Surface Undulation
Uneven plaster or flooring due to poor workmanship.
Improper Slope
Wrong floor slope causing water trapping instead of drainage.
22. Lighting & Acoustics
Lighting and acoustics shape comfort, visibility, mood, and usability of spaces. They influence energy efficiency, glare control, speech clarity, and privacy. Designers use these terms to evaluate performance and create healthy interior environments.
22A. Lighting Terms & Concepts
Lux
Light falling on a surface; used to measure brightness of a space.
Lumen
Total light output from a lamp or fixture.
Candela
Light intensity emitted in a specific direction.
Color Temperature
Warm or cool appearance of light measured in Kelvin.
CRI (Color Rendering Index)
Accuracy of how light reveals true colors.
Efficacy
Lumens produced per watt; measures energy efficiency.
Glare
Visual discomfort caused by excessive brightness or contrast.
Task Lighting
Focused lighting for specific work areas.
Ambient Lighting
General background lighting in a room.
Accent Lighting
Light used to highlight objects or architectural features.
Uplighting
Light directed upward for soft, indirect illumination.
Downlighting
Light directed downward from ceiling fixtures.
Daylight Factor
Ratio of indoor light to outdoor light; used in daylight design.
Light Shelf
Reflective surface that bounces daylight deeper into interiors.
Photometry
Measurement of light performance and distribution.
22B. Acoustics Terms & Concepts
Sound Absorption
Material’s ability to reduce echo by absorbing sound energy.
Sound Reflection
Sound bouncing off surfaces, shaping reverberation patterns.
Reverberation
Persistence of sound in a space after the source stops.
RT60
Time it takes sound to decay by 60 dB; key room acoustics metric.
STC (Sound Transmission Class)
Rating of how well a wall blocks airborne sound.
NRC (Noise Reduction Coefficient)
Average measure of material sound absorption.
Acoustic Panel
Panel used to absorb sound and reduce echo.
Noise Transmission
Transfer of sound through walls, floors, or ceilings.
Flanking Noise
Sound traveling around barriers instead of directly through them.
Impact Noise
Noise caused by physical impacts like footsteps or drops.
Sound Masking
Adding background noise to improve privacy in offices.
Damping
Reducing vibration and excess sound energy.
Diffusers
Acoustic elements that scatter sound to improve clarity.
Double-Skin Partition
Wall system designed to maximize sound insulation.
Acoustic Bridge
Weak points where sound leaks through (gaps, outlets, joints).
23. Landscape & Outdoor Design
Landscape and outdoor design organize open spaces, circulation, planting, grading, water management, and outdoor use. These elements shape comfort, safety, drainage, shade, and the visual experience of a site.
23A. Hardscape Elements
Paving
Stone, concrete, or tile surfaces used for walking and gathering.
Pathway
Circulation route guiding movement across the site.
Retaining Wall
Wall that holds soil and manages level differences.
Steps / Outdoor Stairs
Vertical circulation formed with stone, concrete, or timber.
Decking
Raised outdoor platform made from wood, composite, or metal.
Patio
Paved outdoor seating or activity area.
Plaza
Large open hardscape area used for public gatherings.
Driveway
Hard surface for vehicle access.
Curb & Gutter
Edge treatment controlling water flow along roads and paths.
Drainage Grate
Metal or concrete cover for channels that remove surface water.
Edging / Borders
Separators between planting beds and paths or lawns.
23B. Softscape Elements
Planter
Raised or built container for shrubs, trees, or flowers.
Lawn
Grass-covered open area for recreation or visual softness.
Shrub Bed
Low planting areas used for massing and site structure.
Tree Pit
Prepared area where trees are planted with proper soil depth.
Mulch
Organic layer placed above soil to retain moisture and reduce weeds.
Groundcover
Low plants spreading across soil to prevent erosion.
Hedge
Linear row of shrubs for screening or boundaries.
Bioswale
Shallow vegetated channel designed to filter and slow stormwater.
Rain Garden
Planting bed designed to absorb and treat runoff.
Green Roof
Planted roof system improving insulation and stormwater control.
23C. Outdoor Structures & Features
Pergola
Open-frame structure providing filtered shade.
Gazebo
Freestanding pavilion with full roof cover.
Water Feature
Fountains, ponds, or cascades used for visual and acoustic effect.
Outdoor Lighting
Fixtures guiding movement, safety, and nighttime ambiance.
Fence
Vertical structure defining boundaries or privacy.
Gate
Entry element controlling access to enclosed areas.
Seating Bench
Outdoor seating integrated into hardscape or landscape.
Fire Pit
Outdoor heating and gathering feature.
Play Equipment
Swings, slides, and play structures for children's areas.
Shade Structure
Fabric or rigid canopy providing sun protection.
Bollard
Short post used to control vehicle movement and protect pedestrians.
Trash Receptacle
Outdoor waste container for public or private spaces.
Signage / Wayfinding
Directional or informational graphics for navigation.
Irrigation System
Pipes, sprinklers, and drips used to water planting areas.
24. Construction Management
Construction management controls time, cost, quality, and safety from planning to handover. It involves scheduling, procurement, coordination, and risk decisions that keep a project on track.
24A. Scheduling & Planning
CPM (Critical Path Method)
Scheduling method identifying tasks that determine project duration.
Gantt Chart
Timeline chart showing activity durations and overlaps.
Resource Allocation
Assigning manpower, equipment, and materials to tasks.
Look-Ahead Schedule
Short-term weekly or biweekly plan used on site.
Baseline Schedule
Original approved project schedule used to measure progress.
Progress Tracking
Recording completed work percentages to compare with baseline.
Milestones
Key events or deadlines marking major project stages.
Float / Slack
Extra time available before a task delays the project.
24B. Cost, Procurement & Contracts
Cost Estimation
Predicting labor, material, and equipment costs for a project.
Budget Control
Monitoring spending to stay within approved limits.
Procurement
Process of sourcing materials, equipment, and subcontractors.
Tendering / Bidding
Competitive process to select contractors or suppliers.
Change Order
Modification to scope, cost, or schedule during construction.
Claims Management
Handling disputes related to delay, cost, or work scope.
Value Engineering
Improving performance or reducing cost without lowering quality.
Cash Flow Forecast
Predicting outgoing and incoming payments throughout the project.
Invoice Verification
Checking contractor billing against actual executed work.
Contract Administration
Managing obligations, approvals, and documentation between parties.
24C. Site Operations, Safety & Quality
Quality Assurance
Processes ensuring work meets required standards.
Quality Control
On-site checks and inspections confirming actual quality.
Safety Audit
Formal review of site safety compliance.
Site Logistics
Planning movement of materials, cranes, vehicles, and workers.
Inventory Management
Tracking materials and equipment on site.
Risk Assessment
Identifying and evaluating hazards before construction activities.
Method Statement
Written procedure explaining how a task will be safely executed.
Permit to Work
Authorization required for high-risk activities (hot work, working at height).
Inspection Test Plan (ITP)
Checklist defining inspections required during each construction stage.
Daily Site Report
Record of workforce, progress, delays, and issues.
Punch List
List of remaining items to fix before handover.
Handover Documentation
Final package including warranties, manuals, drawings, and test reports.
